NEMA 34 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 595 Oz-In (4.2 N.m) Holding Torque; Step & Direction Control; 110/120 VAC Input; 1000-Line Encoder

ES-PH23442 : NEMA 34 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 595 Oz-In (4.2 N.m) Holding Torque; Step & Direction Control; 110/120 VAC Input; 1000-Line Encoder
by Leadshine Technology, Inc. (write an review)
ES-PH23442
Features
  • 595 oz-in (8 Nm) NEMA 34 easy servo motor & matching easy servo drive included
  • Step & direction control
  • 1000-line encoder (A, B channels) for the easy servo motor
  • Direct 110/120 VAC input voltage & and 8.0A peak current for the easy servo drive
  • Fully closed position loop for no loss of step
  • High torque & excellent high speed performance
  • Extra low motor heating & noise
  • Quick response and fast acceleration
  • High low standstill stiffness
  • No gaining, no hunting, no overshooting, zero settling time
  • No power supply needed
  • No tuning for plug-and-play
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $518.00
  Online Prices: $379.00 Qty  1 - 4
  $359.00 Qty  5 - 9
  $339.00 Qty 10 - 24
  $319.00 Qty 25 - 49
  You save 26.83 %sss
  Contact us for qty 50 & up
  Stock: Out of stock
Qty:
* Motor & power extension cables required
OverviewIncluded ProductsIncluded Free Accessories
Overview

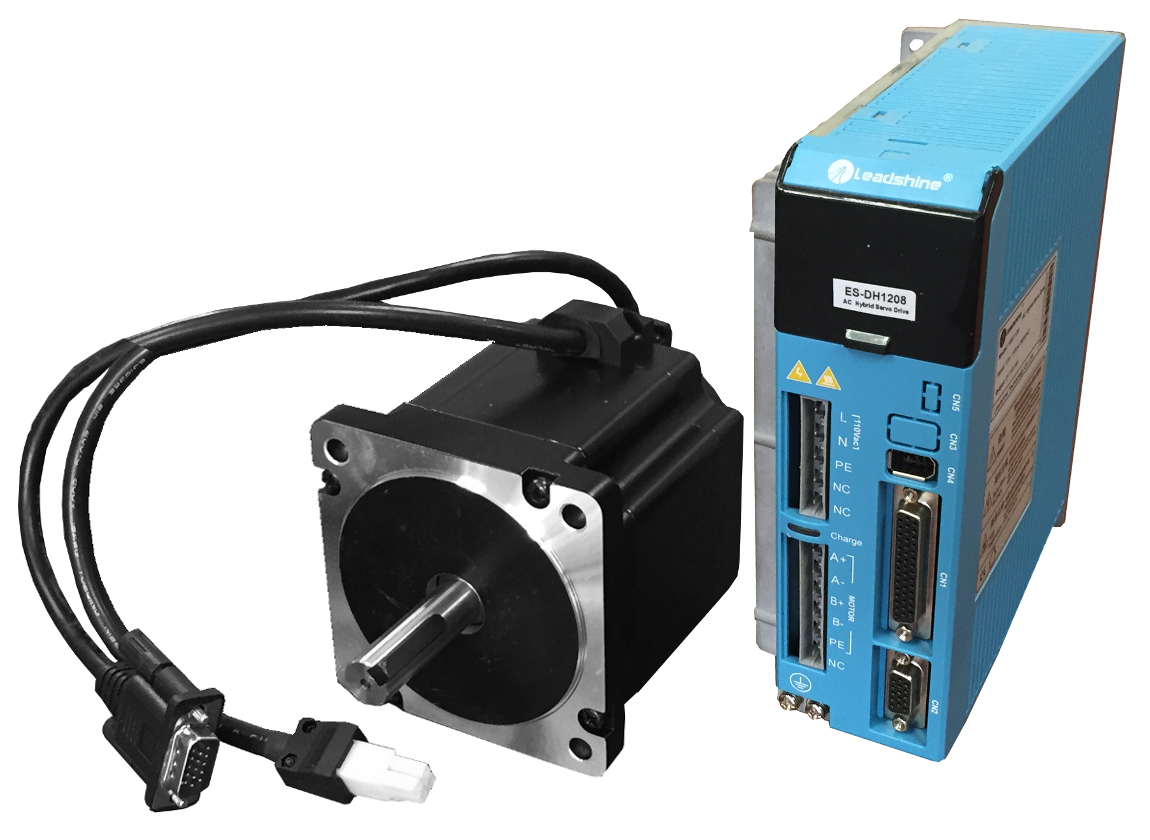

The ES-PH23442 easy servo (closed loop stepper) set comes with one NEMA 34& HSM23442H easy servo motor and one ES-DH1208 easy servo drive. The HSM23442H easy servo motor has the holding torque of 595 oz-in (8Nm), and is integrated with 1,000 line encoder. Th ES-DH1208 easy servo drive can take direct 110/120 VAC voltage input without the need of a power supply, output load based current of 0.5-8.0A, and close the position loop.

Compared with open stepper loop systems, the ES-PH23442 easy servo set outperforms in no loss of steps, higher no torque reservation, much lower heating & noise, better high speed performance, quicker response, and fast acceleration.

Compared with brushless AC/DC servo systems, the ES-PH23442 easy servo set is also preferred in many applications because of is much lower cost, high low-middle speed torque, high stiffness at standstill, no gaining, no hunting, zero settling time, no configuration, and easy setup.

By default, ES-PH23442 is defaulted to operate in closed-loop / servo control mode. But with simple on-board configuration via the built-in LED on ES-DH1208, it can also operate in open loop control mode just like traditional stepper systems. Real-time motion status can be also displayed on the LED display.

The ES-PH23442 easy servo set is pre-configured for optimized performance. It takes step & direction controls and is easy to implement is OEM applications. It has been widely implemented in applications such as CNC routers, CNC mills, CNC laser cutters, gen processing machines, packing equipment...
Motor Accessories

Listed below are the available accessories for the HSM23442H included in the motor & drive set.

  Model / Description 1 Pc. / 5 Pc. Price Purchase
CABLEH-RZ1M5 CABLEH-RZ1M5: 4.9-Foot (1.5-Meter) Easy Servo Motor Power Cable $9.00 / $8.00 Order Quantity:
CABLEH-RZ3M0 CABLEH-RZ3M0: 9.8-Foot (3-Meter) Easy Servo Motor Power Cable $16.00 / $15.00 Order Quantity:
CABLEH-RZ5M0 CABLEH-RZ5M0: 16.4-Foot (5-Meter) Easy Servo Motor Power Cable $23.00 / $22.00 Order Quantity:
CABLEH-RZ10M0 CABLEH-RZ10M0: 32.8-Foot (10-Meter) Easy Servo Motor Power Cable $39.00 / $37.00 Order Quantity:
CABLEG-BM1M5 CABLEG-BM1M5: 4.9-foot (1.5-Meter) Encoder Cable for Leadshine Easy Servo Motors $10.00 / $9.00 Order Quantity:
CABLEG-BM3M0 CABLEG-BM3M0: 9.8-foot (3-Meter) Encoder Cable for Leadshine Easy Servo Motors $16.00 / $15.00 Order Quantity:
CABLEG-BM5M0 CABLEG-BM5M0: 16.4-foot (5-Meter) Encoder Cable for Leadshine Easy Servo Motors $25.00 / $24.00 Order Quantity:
CABLEG-BM10M0 CABLEG-BM10M0: 32.8-foot (10-Meter) Encoder Cable for Leadshine Easy Servo Motors $45.00 / $42.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Drive Accessories

Listed below are the available accessories for the ES-DH1208 included in the motor & drive set.

  Model / Description 1 Pc. / 5 Pc. Price Purchase
CABLE-ACH1000 CABLE-ACH1000 : RS232 Cable for Tuning Leadshine 120/230VAC Servo Drives $10.00 / $9.00 Order Quantity:
USBToRS232 USBToRS232: USB to RS232 Converter Cable with DB9 Connector $25.00 / $22.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
