NEMA 34 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 1,232 Oz-In (8.7 N.m) Holding Torque; Step & Direction Control; 110/120 VAC Input; 1000-Line Encoder
ES-PH23487
: NEMA 34 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 1,232 Oz-In (8.7 N.m) Holding Torque; Step & Direction Control; 110/120 VAC Input; 1000-Line Encoder
|
|
|
Features
- 1,232 oz-in (8.7 Nm) NEMA 34 easy servo motor & matching easy servo drive included
- Step & direction control
- 1000-line encoder (A, B channels) for the easy servo motor
- Direct 110/120 VAC input voltage & and 8.0A peak current for the easy servo drive
- Fully closed position loop for no loss of step
- High torque & excellent high speed performance
- Extra low motor heating & noise
- Quick response and fast acceleration
- High low standstill stiffness
- No gaining, no hunting, no overshooting, zero settling time
- No power supply needed
- No tuning for plug-and-play
|
Buy Online
Usually shipped in 1-2 days from USA
|
|
Regular Price: |
$548.00
|
|
|
Online Prices:
|
$409.00
|
Qty 1 - 4
|
|
|
$389.00
|
Qty 5 - 9
|
|
|
$369.00
|
Qty 10 - 24
|
|
|
$349.00
|
Qty 25 - 49
|
|
You save
|
25.36%
|
| |
Contact us for qty 50 & up
|
|
Stock:
|
Out of stock
|
|
|
|
* Motor & power extension cables required
|
|
OverviewIncluded ProductsIncluded Free Accessories
Overview

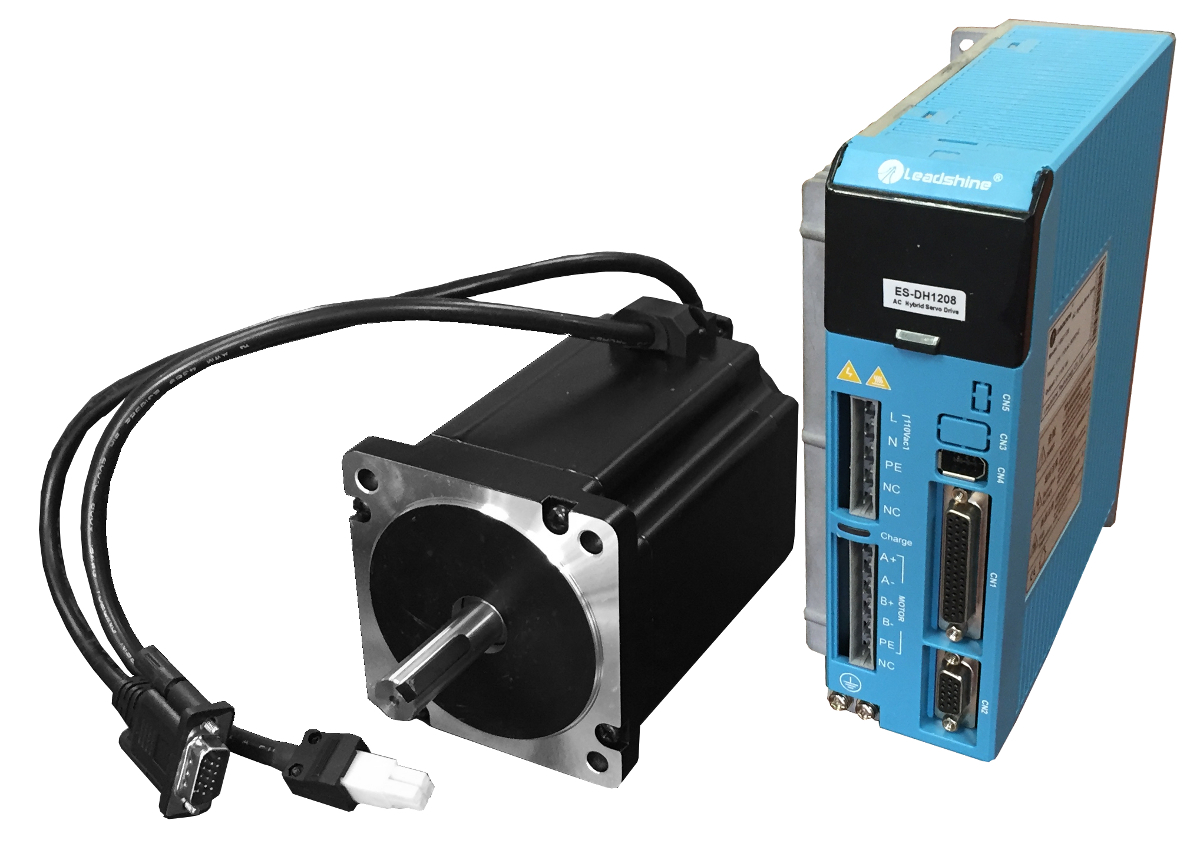

The ES-PH23487 easy servo (closed loop stepper) set comes with one NEMA 34 HSM23487H easy servo motor and one ES-DH1208 easy servo drive. The HSMH23487H easy servo motor has the holding torque of 1,232 oz-in (8Nm), and is integrated with 1,000 line encoder. Th ES-DH1208 easy servo drive can take direct 110/120 VAC voltage input without the need of a power supply, output load based current of 0.5-8.0A, and close the position loop.
Compared with open stepper loop systems, the ES-PH23487 easy servo set outperforms in no loss of steps, higher no torque reservation, much lower heating & noise, better high speed performance, quicker response, and fast acceleration.
Compared with brushless AC/DC servo systems, the ES-PH23487 easy servo set is also preferred in many applications because of is much lower cost, high low-middle speed torque, high stiffness at standstill, no gaining, no hunting, zero settling time, no configuration, and easy setup.
By default, ES-PH23487 is defaulted to operate in closed-loop / servo control mode. But with simple on-board configuration via the built-in LED on ES-DH1208, it can also operate in open loop control mode just like traditional stepper systems. Real-time motion status can be also displayed on the LED display.
The ES-PH23487 easy servo set is pre-configured for optimized performance. It takes step & direction controls and is easy to implement is OEM applications. It has been widely implemented in applications such as CNC routers, CNC mills, CNC laser cutters, gen processing machines, packing equipment...
Included Items
- One HSM23487H: AMT NEMA 34 Easy Servo Motor; 2 Phase; 1,203 Oz-In Torque; 1,000-Line Encoder; 0.5'' Shaft; 110/120VAC Voltage
- One ES-DH1208: Leadshine easy servo drive Direct 110/120 VAC input voltage and max 8.0A peak current
- Free technical support
- Warranty for proper use
Free Accessories
Besides discounts for the included products, the following accessory items
are also included free for saving you additional costs. Based on your application/machine requirements,
you may also need to add, or update to accessories which are listed below.- 1.4.0-4422200-17: 44-pin Control Signal Connector for Leadshine Servo/Stepper Drives
|
|
Motor Accessories
Listed below are the available accessories for the HSM23487H included in the motor & drive set.
|
|
Drive Accessories
Listed below are the available accessories for the ES-DH1208 included in the motor & drive set.
|
|
|
|
