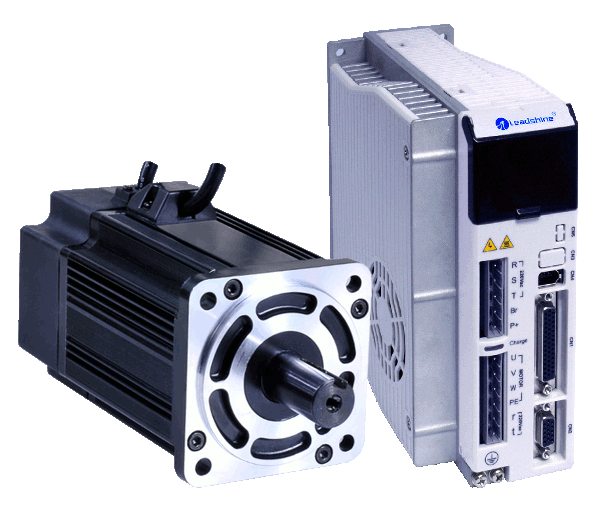

EL5-P1000 : Leadshine 1000W AC Servo Motor & Drive Set. 80mm Frame; 4000 RPM Peak Speed; 9.6Nm (84.96 Lb-In) Peak Torque; 220/230 VAC Input

by Leadshine Technology, Inc.

Features

80 mm frame
One 1000W Leadshine EL5-M1000 brushless AC servo motor with 2,500-line encoder
One Leadshine EL5-D1000 AC servo drive
3,000 RPM continuous / 4,000 RPM peak speed
3.2 Nm (28.32 lb-in) rated torque / 9.6 Nm (84.96 lb-in) peak torque
Excellent performance
Quick response and acceleration
Good position following capability
Low noise & smooth motion
Great prices
Free technical support from AMT, and the original manufacturer Leadshine Technology, Inc

Buy Online
Usually shipped in 1-2 days from USA

Regular Price:

~~$868.00~~

Online Prices:

$799.00

Qty 1 - 4

$769.00

Qty 5 - 9

Stock:

In stock

Qty:

OverviewIncluded ProductsIncluded Free Accessories

Overview

Leadshine 1000W AC servo set including an AC servo motor and a companion servo drive. The EL5-M1000 is a 80 mm frame AC servo motor with 3000 RPM continuous / 4,000 RPM peak speed and 3.2 Nm (28.32 lb-in) rated torque / 9.6 Nm (84.96 lb-in) peak torque. The companion EL5-D1000 is a 220/230 VAC input servo drive with 5A rated / 22A peak output current. Industrial quality, excellent performance. High precision, quick response and acceleration, good position following performance, smooth motion.

Included Items

One EL5-M1000: Leadshine EL5-M1000 1000W AC Servo Motor 4,000 RPM Peak Speed, 84.96 Lb-In Peak Torque, 2500-Line Encoder
One EL5-D1000: Leadshine Brushless Servo Drive. 187-240 VAC input; 5A Rated /22A Peak Current; Powering Up to 1KW Servo Motors
Free technical support
Warranty for proper use

Free Accessories

Besides discounts for the included products, the following accessory items are also included free for saving you additional costs. Based on your application/machine requirements, you may also need to add, or update to accessories which are listed below.

1.4.0-4422200-17: 44-pin Control Signal Connector for Leadshine Servo/Stepper Drives($5.00 value)

Motor Accessories

Listed below are the available accessories for the EL5-M1000 included in the motor & drive set.

Model / Description	1 Pc. / 5 Pc. Price	Purchase

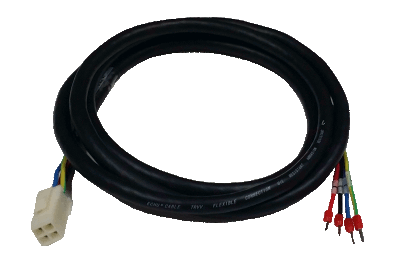

CABLE-RZ1M5-S: CABLE-RZ1M5-S 4.9-Foot (1.5-Meter) Power Cable for Leadshine 220/230 VAC AC Servo Motors	$13.00 / $12.00	Order Quantity:

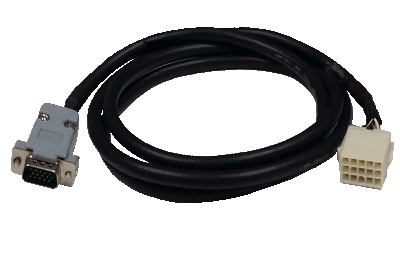

CABLE-BM1M5-S: CABLE-BM1M5-S 4.9-Foot (1.5-Meter) Encoder Cable for Leadshine 220/230 VAC AC Servo Motors	$16.00 / $15.00	Order Quantity:
CABLE-RZ3M0-S: CABLE-RZ3M0-S 9.8-Foot (3-Meter) Power Cable for Leadshine 220/230 VAC AC Servo Motors	$20.00 / $19.00	Order Quantity:
CABLE-BM3M0-S: CABLE-BM3M0-S 9.8-Foot (3-Meter) Encoder Cable for Leadshine 220/230 VAC AC Servo Motors	$25.00 / $24.00	Order Quantity:
CABLE-RZ5M0-S: CABLE-RZ3M0-S 16.4-Foot (5-Meter) Power Cable for Leadshine 220/230 VAC AC Servo Motors	$28.00 / $26.00	Order Quantity:
CABLE-BM5M0-S: CABLE-BM5M0-S 16.4-Foot (5-Meter) Encoder Cable for Leadshine 220/230 VAC AC Servo Motors	$35.00 / $33.00	Order Quantity:
CABLE-RZ10M0-S: CABLE-RZ10M0-S 32.8-Foot (10-Meter) Power Cable for Leadshine 220/230 VAC AC Servo Motors	$45.00 / $42.00	Order Quantity:
CABLE-BM10M0-S: CABLE-BM10M0-S 32.8-Foot (10-Meter) Encoder Cable for Leadshine 220/230 VAC AC Servo Motors	$60.00 / $57.00	Order Quantity:

Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Drive Accessories

Listed below are the available accessories for the EL5-D1000 included in the motor & drive set.

Model / Description	1 Pc. / 5 Pc. Price	Purchase
CABLE-ACH1000 : RS232 Cable for Tuning Leadshine 120/230VAC Servo Drives	$10.00 / $9.00	Order Quantity:
USBToRS232: USB to RS232 Converter Cable with DB9 Connector	$25.00 / $22.00	Order Quantity:

Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
