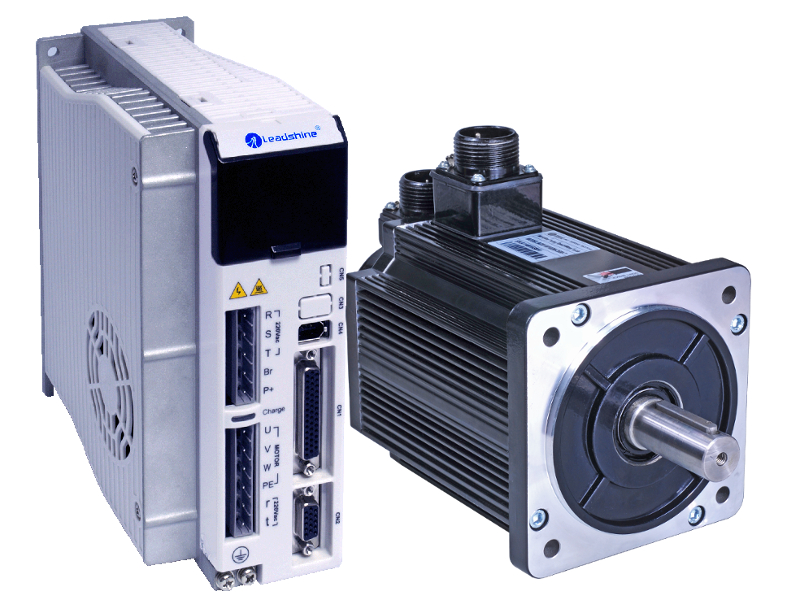

EL5-P1500 : Leadshine 1500W AC Servo Motor & Drive Set. 130mm Frame; 3000 RPM Peak Speed; 18Nm (159.3 Lb-In) Peak Torque; 220/230 VAC Input

by Leadshine Technology, Inc.

Features

130 mm frame
One 1000W Leadshine EL5-M1500 brushless AC servo motor with 2,500-line encoder
One Leadshine EL5-D1500 AC servo drive
2,500 RPM continuous / 3,000 RPM peak speed
6 Nm (53.1 lb-in) rated torque / 18 Nm (159.3 lb-in) peak torque
Excellent performance
Quick response and acceleration
Good position following capability
Low noise & smooth motion
Great prices
Free technical support from AMT, and the original manufacturer Leadshine Technology, Inc

Buy Online
Usually shipped in 1-2 days from USA

Regular Price:

~~$1,068.00~~

Online Prices:

$989.00

Qty 1 - 4

$949.00

Qty 5 - 9

Stock:

In stock

Qty:

OverviewIncluded ProductsIncluded Free Accessories

Overview

Leadshine 1500W AC servo set including an AC servo motor and a companion servo drive. The EL5-M1500 is a 130 mm frame AC servo motor with 2,500 RPM continuous / 3,000 RPM peak speed and 6 Nm (53.1 lb-in) rated torque / 9.6 Nm (159.3 lb-in) peak torque. AThe companion EL5-D1500 is a 220/230 VAC input servo drive with 7.5A rated / 25A peak output current. Industrial quality, excellent performance. High precision, quick response and acceleration, good position following performance, smooth motion.

Included Items

One EL5-M1500: Leadshine EL5-M1500 1500W AC Servo Motor 3,000 RPM Peak Speed, 159.3 Lb-In Peak Torque, 2500-Line Encoder
One EL5-D1500: Leadshine Brushless Servo Drive. 187-240 VAC input; 7.5A Rated / 25A Peak Current; Powering Up to 1.5KW Servo Motors
Free technical support
Warranty for proper use

Free Accessories

Besides discounts for the included products, the following accessory items are also included free for saving you additional costs. Based on your application/machine requirements, you may also need to add, or update to accessories which are listed below.

1.4.0-4422200-17: 44-pin Control Signal Connector for Leadshine Servo/Stepper Drives($5.00 value)
