Location: Home > Motor & Drive Sets > Stepper > 220/230 VAC Input

220/230 VAC Stepper Motor & Drive Sets (220/230 Line Powered)

220/230 VAC line powered stepper motor & drive sets in NEMA 34 and 42. The 2-phase stepper motors have holding torque range of 971 - 2,832 oz-in (6.86 - 20 Nm). The paired Leadshine DM2282 DSP-based stepper drive can take 220/230 direct VAC input without the need of any power supply. Industrial quality, high reliability, high precision, extra low heating & low noise, smooth motion, easy setup.

* We only offers 220/230 VAC input stepper motor & drive here, based on Leadshine DM2282. There are many stepper motor & drives that can be composed based on AMT offered products. If you can't find what you need here and want to create your own, go to the Products page.

Available Products

Frame Size:

AllNEMA 34NEMA 42

Use the above filters to refine displayed products

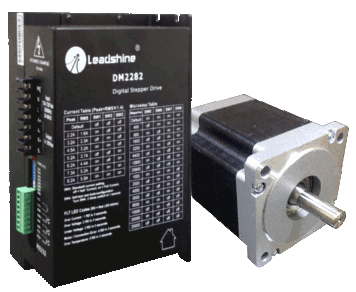

STS-H234-971: 971 Oz-In (6.86 Nm) Nema 34 Stepper Drive Set (220/230 VAC Input)
971 oz-in (6.86 Nm) NEMA 34 stepper motor drive set which includes one 2-phase HS3468 stepper motor, and one Leadshine DM2282 digital stepper drives taking direct 220/230 VAC input with max 8.2A output current. Step & direction control and industrial quality. Low motor heating, low noise, extra smooth motion...	1 / 5 Set Price: $338.00 / $319.00 More Info

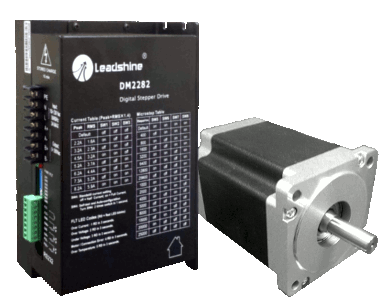

STS-H234-1203: 1203 Oz-In (8.5 Nm) Nema 34 Stepper Drive Set (220/230 VAC Input)
1203 oz-in (8.5 Nm) NEMA 34 stepper motor drive set which includes one 2-phase HS3485 stepper motor, and one Leadshine DM2282 digital stepper drives taking direct 220/230 VAC input with max 8.2A output current. Step & direction control and industrial quality. Low motor heating, low noise, extra smooth motion...	1 / 5 Set Price: $348.00 / $332.00 More Info

STS-H234-1416: 1416 Oz-In (10 Nm) Nema 34 Stepper Drive Set (220/230 VAC Input)
1416 oz-in (10 Nm) NEMA 34 stepper motor drive set which includes one 2-phase HS34100 stepper motor, and one Leadshine DM2282 digital stepper drives taking direct 220/230 VAC input with max 8.2A output current. Step & direction control and industrial quality. Low motor heating, low noise, extra smooth motion...	1 / 5 Set Price: $368.00 / $347.00 More Info

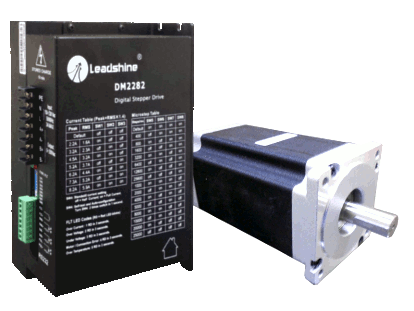

STS-H234-1700: 1700 Oz-In (12 Nm) Nema 34 Stepper Drive Set (220/230 VAC Input)
1700 oz-in (12 Nm) NEMA 34 stepper motor drive set which includes one 2-phase 86HS120 stepper motor, and one Leadshine DM2282 digital stepper drives taking direct 220/230 VAC input with max 8.2A output current. Step & direction control and industrial quality. Low motor heating, low noise, extra smooth motion...	1 / 5 Set Price: $408.00 / $388.00 More Info

STS-H242-1770: 1770 Oz-In (12.5 Nm) Nema 42 Stepper Drive Set (220/230 VAC Input)
1770 oz-in (12.5 Nm) NEMA 42 stepper motor drive set which includes one 2-phase HS4212 stepper motor, and one Leadshine DM2282 digital stepper drives taking direct 220/230 VAC input with max 8.2A output current. Step & direction control and industrial quality. Low motor heating, low noise, extra smooth motion...	1 / 5 Set Price: $418.00 / $398.00 More Info

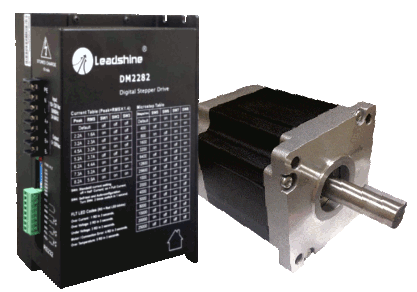

STS-H242-2124: 2124 Oz-In (15 Nm) Nema 42 Stepper Drive Set (220/230 VAC Input)
2124 oz-in (15 Nm) NEMA 42 stepper motor drive set which includes one 2-phase HS4215 stepper motor, and one Leadshine DM2282 digital stepper drives taking direct 220/230 VAC input with max 8.2A output current. Step & direction control and industrial quality. Low motor heating, low noise, extra smooth motion...	1 / 5 Set Price: $428.00 / $409.00 More Info

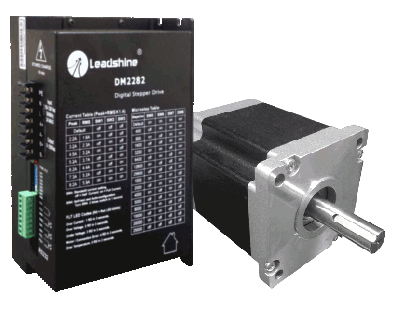

STS-H242-2832: 2832 Oz-In (20 Nm) Nema 42 Stepper Drive Set (220/230 VAC Input)
2832 oz-in (20 Nm) NEMA 42 stepper motor drive set which includes one 2-phase HS4220 stepper motor, and one Leadshine DM2282 digital stepper drives taking direct 220/230 VAC input with max 8.2A output current. Step & direction control and industrial quality. Low motor heating, low noise, extra smooth motion...	1 / 5 Set Price: $442.00 / $419.00 More Info
