Leadshine 39HS02 High Performance 2-Phase NEMA 15 Hybrid Stepper Motor with 31.2 OZ-IN Torque (0.22 N.m)

39HS02 : Leadshine 39HS02 High Performance 2-Phase NEMA 15 Hybrid Stepper Motor with 31.2 OZ-IN Torque (0.22 N.m)
by Leadshine Technology, Inc. (write an review)
  • 2-phase 1.8° step angle
  • NEMA 16 frame size
  • 31.2 oz-in (0.22 Nm) holding torque
  • Single shaft of 0.197 inch
  • industrial quality
  • High accuracy
  • Smooth movement
  • Low motor heating
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $27.00
  Online Prices: $25.00 Qty  1 - 4
  $22.00 Qty  5 - 9
  You save 7.41 %
  Contact us for qty 10 & up
  Stock: In stock

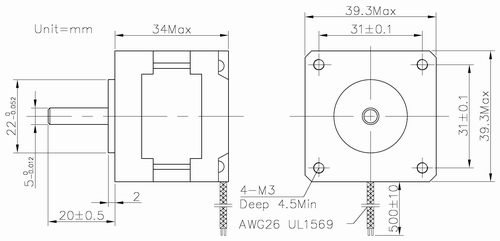

OverviewSpecificationsMechanicalWiring DiagramDownload
The 39HS02 is a 2-phase NEMA 16 hybrid stepper motor from Leadshine with holding torque of 31.20 oz-in (0.22 Nm). Built with the best available materials and advanced manufacturing technologies, this stepper motor ensures high precision, high torque density, low resonance, quiet motion, low motor heating, and smooth movement. It has been proved performance excellence in many industrial applications.

Matching Stepper Drivesstepper motor controller driver

AMT offers matching stepper drives for 39HS02 to satisfy your application needs. Those stepper drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all stepper drives that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
EM402 EM402: Leadshine EM402 Advanced 2-Phase DSP Stepper Drive Max 40VDC/2.2A with Stall Detection $95.00 / $90.00 Order Quantity:
DM422 DM422: Leadshine DM422 2-Phase DSP Digital Stepper Drive Max 40VDC/2.2A $69.00 / $65.00 Order Quantity:
M415B M415B: Leadshine M415B 2-phase Stepper Drive with Max 40 VDC / 1.5A $57.00 / $54.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
