Leadshine 42HS03 High Performance 2-Phase NEMA 17 Hybrid Stepper Motor with 67 OZ-IN Torque (0.47 N.m)

42HS03 : Leadshine 42HS03 High Performance 2-Phase NEMA 17 Hybrid Stepper Motor with 67 OZ-IN Torque (0.47 N.m)
by Leadshine Technology, Inc. (write an review)
42HS03
Features
  • 2-phase 1.8° step angle
  • NEMA 17 frame size
  • 67.0 oz-in (0.47 Nm) holding torque
  • Single shaft of 0.197 inch
  • industrial quality
  • High accuracy
  • Smooth movement
  • Low motor heating
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $31.00
  Online Prices: $28.00 Qty  1 - 4
  $26.00 Qty  5 - 9
  You save 9.68 %
  Contact us for qty 10 & up
  Stock: In stock
Qty:

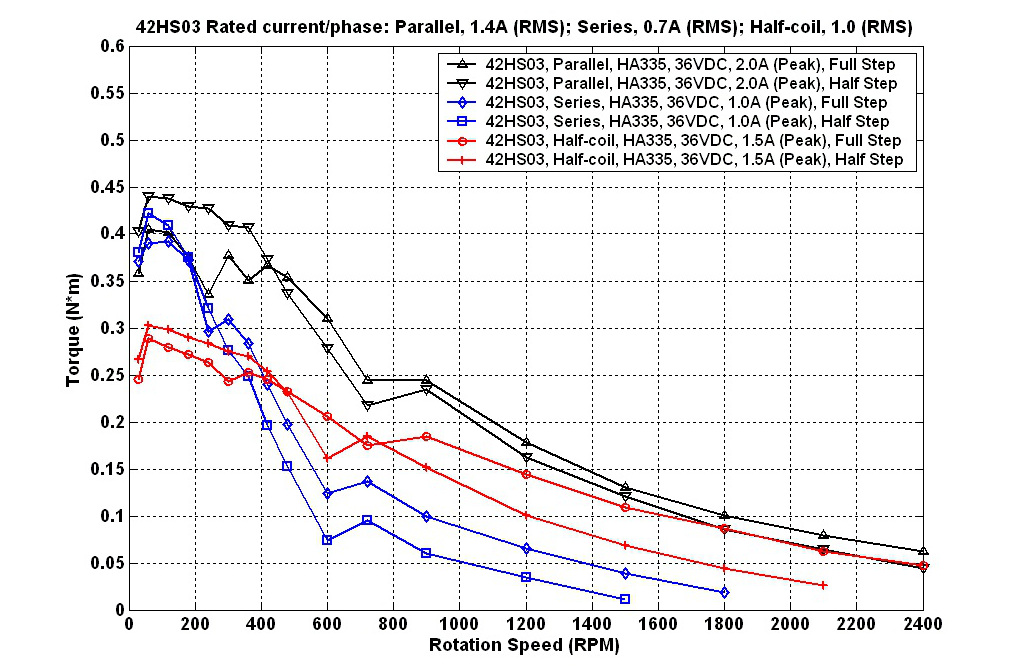

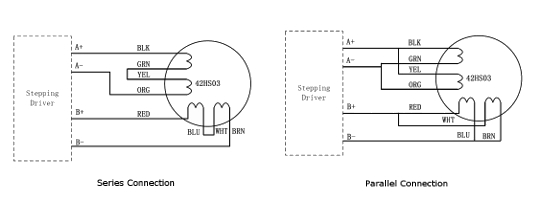

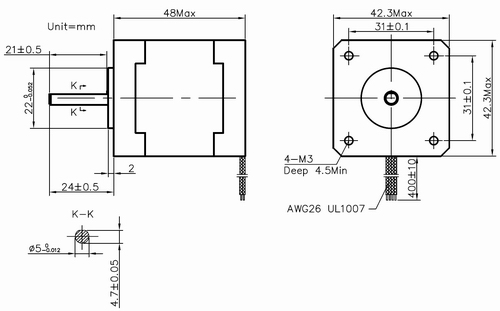

OverviewSpecificationsMechanicalWiring DiagramTorque CurveDownload
Overview
The 42HS03 is a 2-phase NEMA 17 hybrid stepper motor from Leadshine with holding torque of 67.00 oz-in (0.47 Nm). Built with the best available materials and advanced manufacturing technologies, this stepper motor ensures high precision, high torque density, low resonance, quiet motion, low motor heating, and smooth movement. It has been proved performance excellence in many industrial applications.

Matching Stepper Drivesstepper motor controller driver

AMT offers matching stepper drives for 42HS03 to satisfy your application needs. Those stepper drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all stepper drives that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
MX3660 MX3660: Leadshine MX3660 3-Axis Stepper Drive with I/O's; 60 VDC/6.0 A $289.00 / $275.00 Order Quantity:
MX4660 MX4660: Leadshine MX4660 4-Axis Stepper Drive with I/O's; 60 VDC/6.0 A $379.00 / $362.00 Order Quantity:
EM402 EM402: Leadshine EM402 Advanced 2-Phase DSP Stepper Drive Max 40VDC/2.2A with Stall Detection $95.00 / $90.00 Order Quantity:
DM422 DM422: Leadshine DM422 2-Phase DSP Digital Stepper Drive Max 40VDC/2.2A $69.00 / $66.00 Order Quantity:
M415B M415B: Leadshine M415B 2-phase Stepper Drive with Max 40 VDC / 1.5A $57.00 / $54.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
