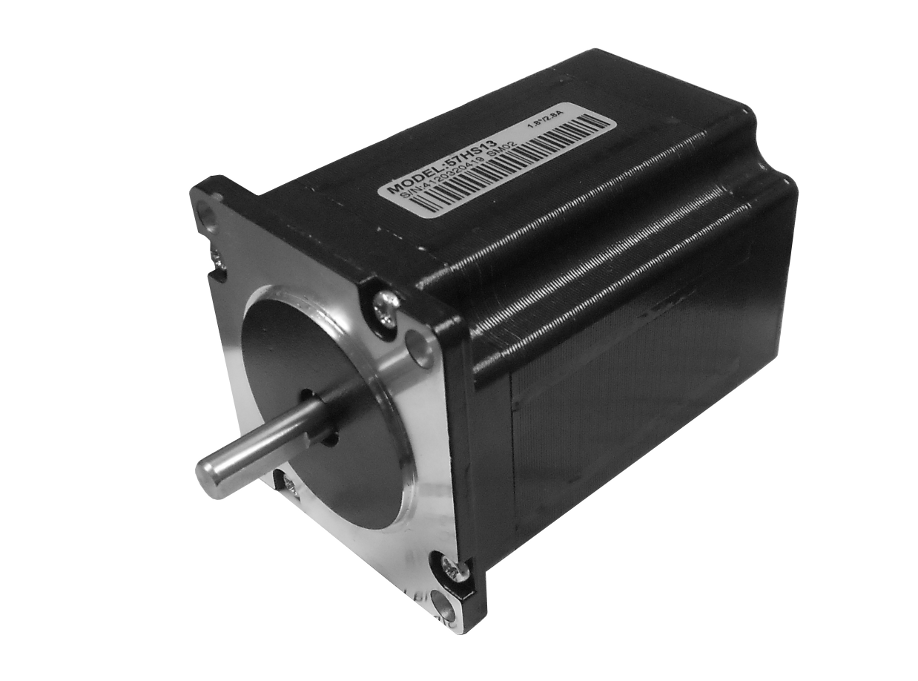

Leadshine 57HS13 High Performance 2-Phase NEMA 23 Hybrid Stepper Motor with 255 OZ-IN Torque (1.8 N.m)

57HS13 : Leadshine 57HS13 High Performance 2-Phase NEMA 23 Hybrid Stepper Motor with 255 OZ-IN Torque (1.8 N.m)
by Leadshine Technology, Inc. (write an review)
57HS13
Features
  • 2-phase 1.8° step angle
  • NEMA 23 frame size
  • 255.0 oz-in (1.8 Nm) holding torque
  • Single shaft of 0.250 inch
  • Indusrial quality
  • High accuracy
  • Smooth movement
  • Low motor heating
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $61.00
  Online Prices: $55.00 Qty  1 - 4
  $49.00 Qty  5 - 9
  You save 9.84 %
  Contact us for qty 10 & up
  Stock: In stock
Qty:

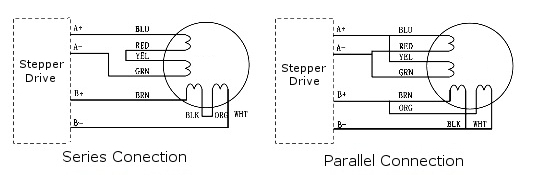

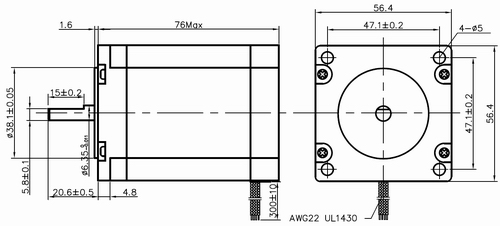

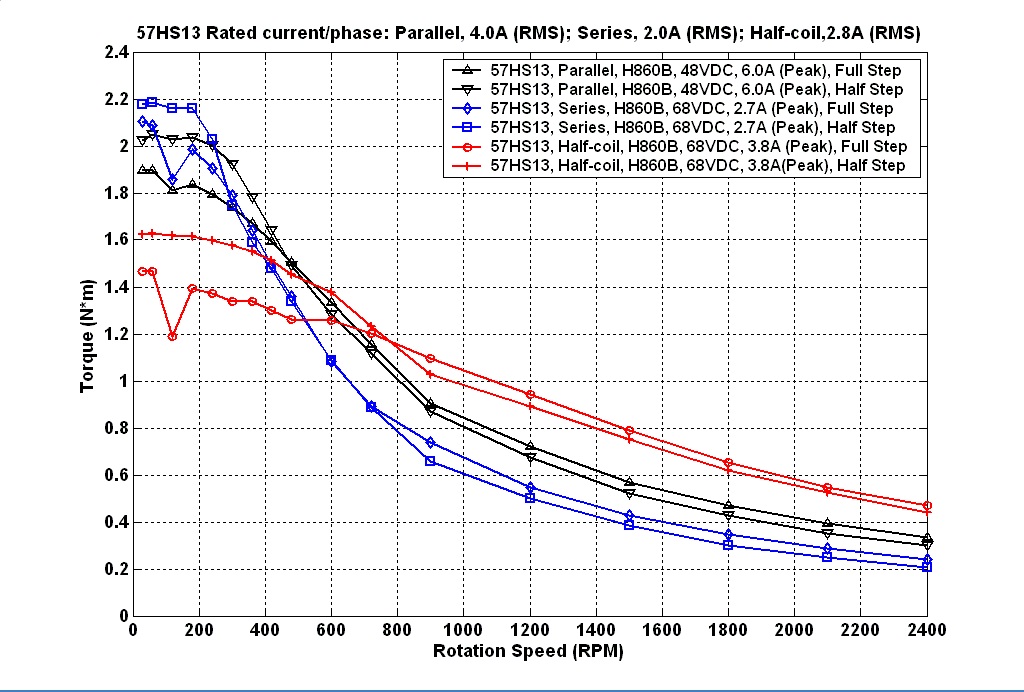

OverviewSpecificationsMechanicalWiring DiagramSpeed TorqueDownload
Overview
The 57HS13 is a 2-phase NEMA 23 hybrid stepper motor from Leadshine with holding torque of 255.00 oz-in (1.8 Nm). Built with the best available materials and advanced manufacturing technologies, this stepper motor ensures high precision, high torque density, low resonance, quiet motion, low motor heating, and smooth movement. It has been proved performance excellence in many industrial applications.

Matching Stepper Drivesstepper motor controller driver

AMT offers matching stepper drives for 57HS13 to satisfy your application needs. Those stepper drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all stepper drives that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
MX3660 MX3660: Leadshine MX3660 3-Axis Stepper Drive with I/O's; 60 VDC/6.0 A $289.00 / $275.00 Order Quantity:
MX4660 MX4660: Leadshine MX4660 4-Axis Stepper Drive with I/O's; 60 VDC/6.0 A $379.00 / $362.00 Order Quantity:
EM503 EM503: Leadshine EM503 Advanced 2-Phase DSP Stepper Drive Max 50VDC/4.2A with Stall Detection $109.00 / $103.00 Order Quantity:
EM705 EM705: Leadshine EM705 Advanced 2-Phase DSP Stepper Drive Max 70VDC/2.2A with Stall Detection $129.00 / $122.00 Order Quantity:
EM806 EM806: Leadshine EM806 Advanced 2-Phase DSP Stepper Drive Max 80VDC/8.2A with Stall Detection $139.00 / $132.00 Order Quantity:
DM503 DM503: Leadshine DM503 2-phase DSP Digital Stepper Drive with Max 50 VDC/4.2A $79.00 / $76.00 Order Quantity:
DM556 DM556: Leadshine DM556 2-phase DSP Digital Stepper Drive with Max 50 VDC / 5.6A $99.00 / $95.00 Order Quantity:
DM856 DM856: Leadshine DM856 2-phase DSP Digital Stepper Drive with Max 80 VDC / 5.6A $119.00 / $113.00 Order Quantity:
DM870 DM870: Leadshine DM870 2-phase DSP Digital Stepper Drive with Max 80 VDC / 7.0A $129.00 / $125.00 Order Quantity:
DM805-AI DM805-AI: Leadshine DM805-AI Stepper Drive with Built-in Speed Controller (oscillator) 80 VDC/7.0 A $139.00 / $132.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
