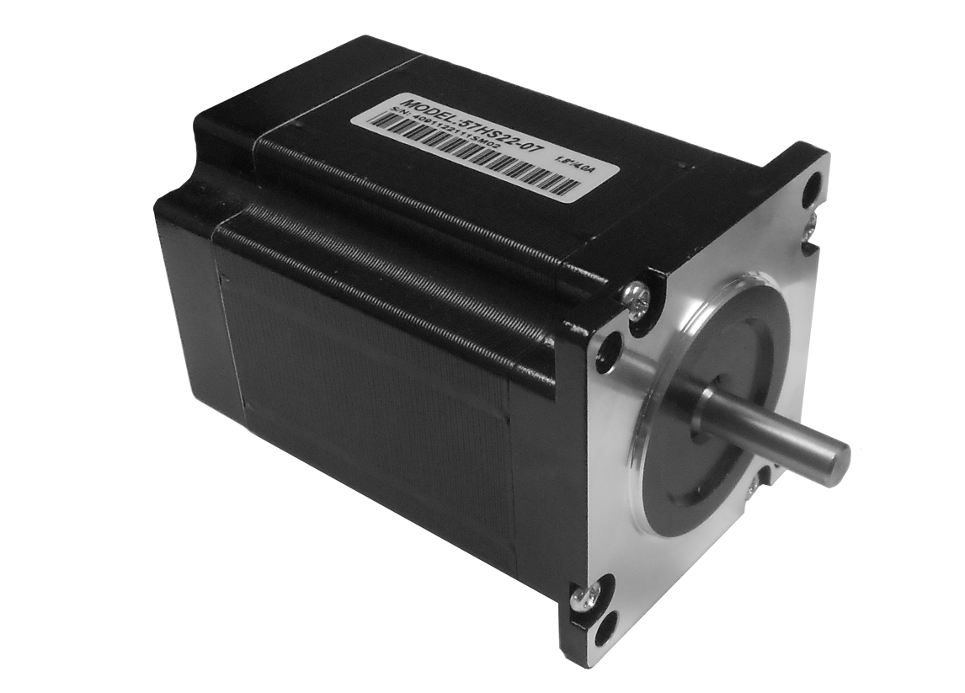

Leadshine High Performance 2-Phase NEMA 23 Hybrid Stepper Motor with 312 OZ-IN Torque (2.2 N.m) Single 0.25'' (model 57HS22-07) or 0.315'' (model 57HS22-A) Shaft

57HS22 : Leadshine High Performance 2-Phase NEMA 23 Hybrid Stepper Motor with 312 OZ-IN Torque (2.2 N.m) Single 0.25'' (model 57HS22-07) or 0.315'' (model 57HS22-A) Shaft by Leadshine Technology, Inc.       Datasheet (write an review)
	Features 2-phase 1.8° step angle NEMA 23 frame size 312.0 oz-in (2.2 Nm) holding torque Single shaft of 0.250 inch or optional 0.315 inch industrial quality High accuracy Smooth movement Low motor heating	Buy Online Usually shipped in 1-2 days from USA Select the motor shaft size 57HS22 57HS22-A: 8 mm (0.315'') shaft motor Regular Price: $69.00     Online Prices: $62.00 Qty  1 - 4   $59.00 Qty  5 - 9   You save 10.14%   Contact us for qty 10 & up   Stock: In stock The selected item has been added to your shop cart successfully. To choose Choose one of the following options to continue.    Qty:

Matching Stepper Drivesstepper motor controller driver

AMT offers matching stepper drives for 57HS22 to satisfy your application needs. Those stepper drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all stepper drives that AMT offers, please click here.

Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase MX3660: Leadshine MX3660 3-Axis Stepper Drive with I/O's; 60 VDC/6.0 A $289.00 / $275.00 Order Quantity:     MX4660: Leadshine MX4660 4-Axis Stepper Drive with I/O's; 60 VDC/6.0 A $379.00 / $362.00 Order Quantity:     EM503: Leadshine EM503 Advanced 2-Phase DSP Stepper Drive Max 50VDC/4.2A with Stall Detection $109.00 / $103.00 Order Quantity:     EM705: Leadshine EM705 Advanced 2-Phase DSP Stepper Drive Max 70VDC/2.2A with Stall Detection $129.00 / $122.00 Order Quantity:     EM806: Leadshine EM806 Advanced 2-Phase DSP Stepper Drive Max 80VDC/8.2A with Stall Detection $139.00 / $132.00 Order Quantity:     DM442: Leadshine DM442 2-phase DSP Digital Stepper Drive with Max 40 VDC / 4.2A $89.00 / $85.00 Order Quantity:     DM503: Leadshine DM503 2-phase DSP Digital Stepper Drive with Max 50 VDC/4.2A $79.00 / $76.00 Order Quantity:     DM556: Leadshine DM556 2-phase DSP Digital Stepper Drive with Max 50 VDC / 5.6A $109.00 / $105.00 Order Quantity:     DM856: Leadshine DM856 2-phase DSP Digital Stepper Drive with Max 80 VDC / 5.6A $119.00 / $119.00 Order Quantity:     DM870: Leadshine DM870 2-phase DSP Digital Stepper Drive with Max 80 VDC / 7.0A $139.00 / $135.00 Order Quantity:     DM805-AI: Leadshine DM805-AI Stepper Drive with Built-in Speed Controller (oscillator) 80 VDC/7.0 A $139.00 / $132.00 Order Quantity:
