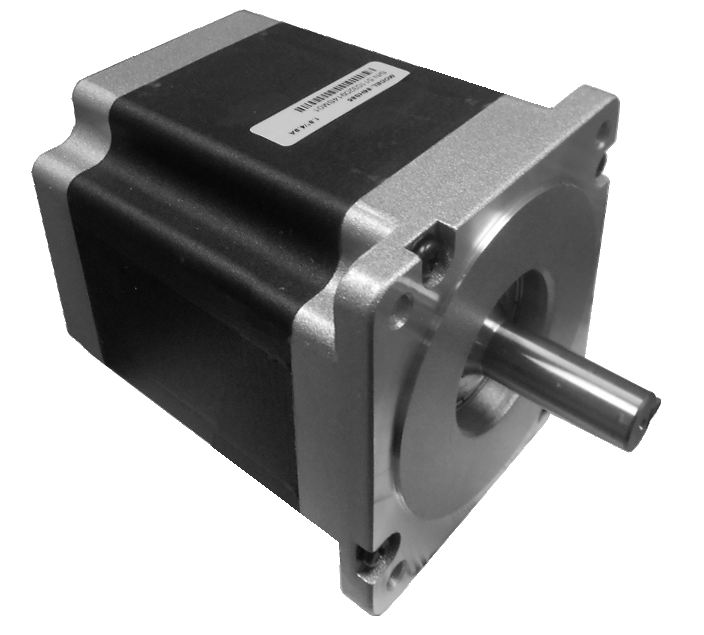

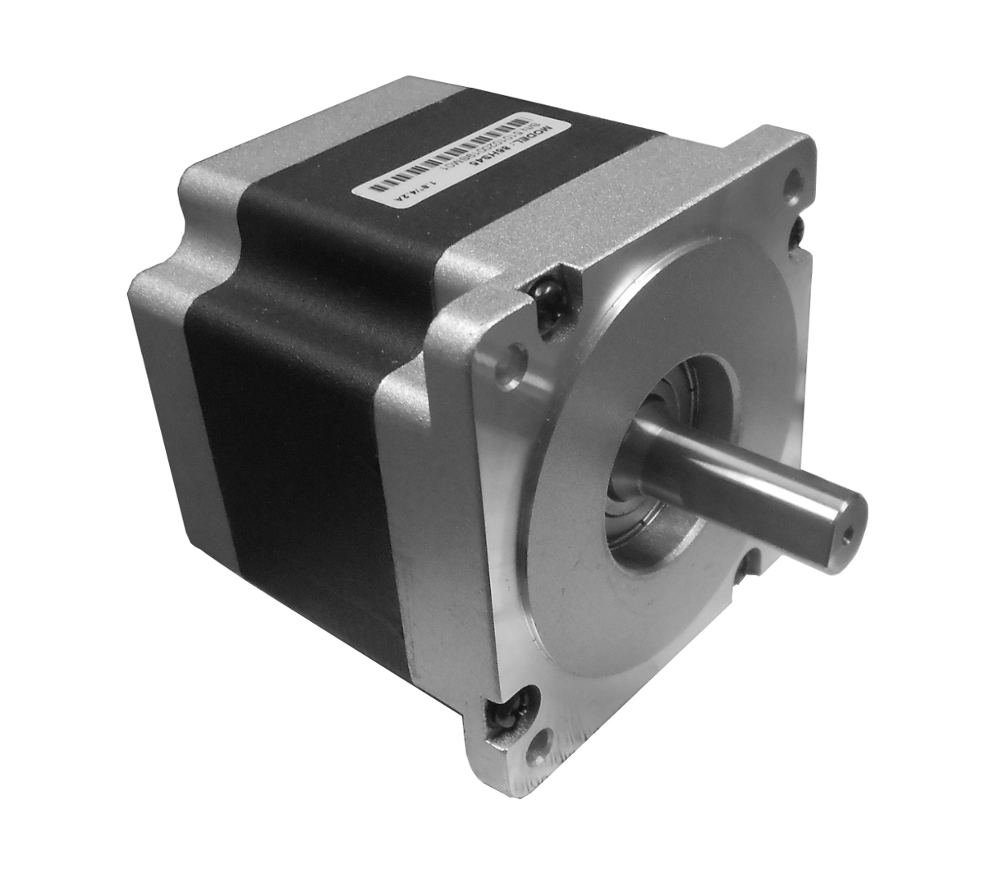

Leadshine 86HS45 High Performance 2-Phase NEMA 34 Hybrid Stepper Motor with 637 OZ-IN Torque (4.5 N.m)

86HS45 : Leadshine 86HS45 High Performance 2-Phase NEMA 34 Hybrid Stepper Motor with 637 OZ-IN Torque (4.5 N.m)
by Leadshine Technology, Inc. (write an review)
86HS45
 Features
  • 2-phase 1.8° step angle
  • NEMA 34 frame size
  • 637.0 oz-in (4.5 Nm) holding torque
  • Single shaft of 0.500 inch
  • industrial quality
  • High accuracy
  • Smooth movement
  • Low motor heating
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $119.00
  Online Prices: $119.00 Qty  1 - 4
  $109.00 Qty  5 - 9
  You save 0.00%
  Contact us for qty 10 & up
  Stock: In stock
Qty:

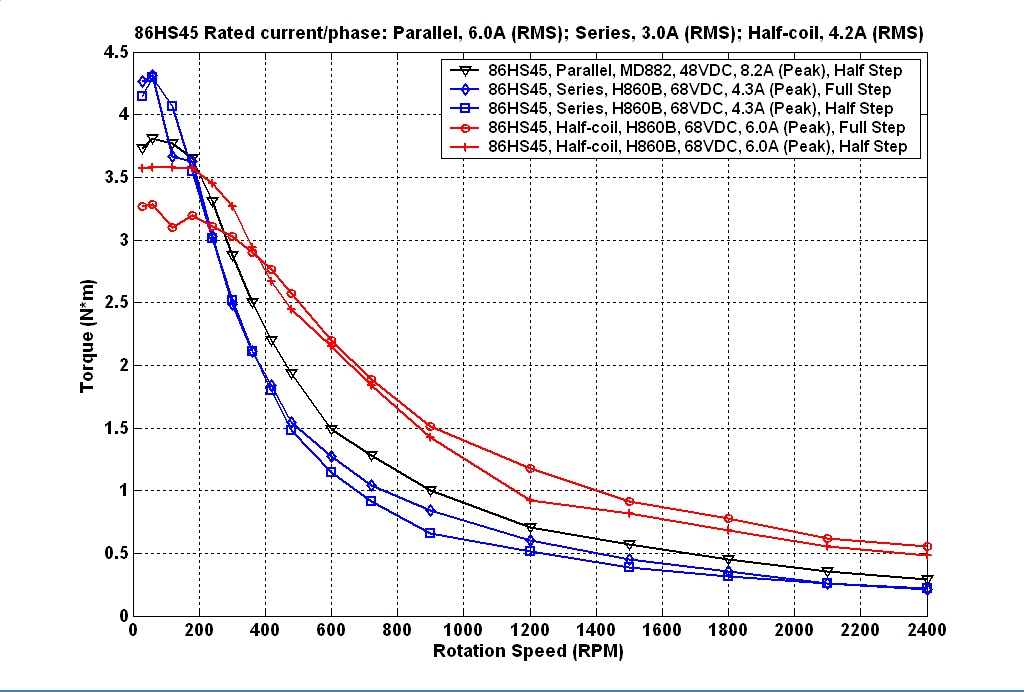

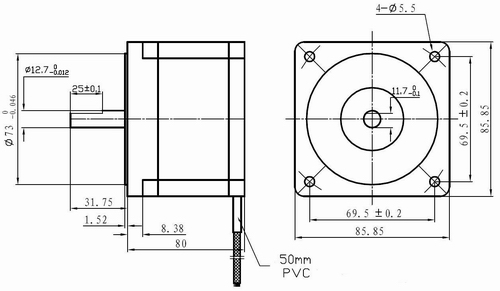

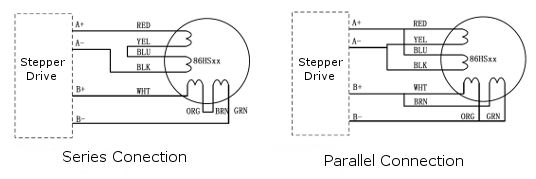

OverviewSpecificationsMechanicalWiring DiagramTorque CurveDownload
Overview
The 86HS45 is a 2-phase NEMA 34 hybrid stepper motor from Leadshine with holding torque of 637.00 oz-in (4.5 Nm). Built with the best available materials and advanced manufacturing technologies, this stepper motor ensures high precision, high torque density, low resonance, quiet motion, low motor heating, and smooth movement. It has been proved performance excellence in many industrial applications.

Matching Stepper Drivesstepper motor controller driver

AMT offers matching stepper drives for 86HS45 to satisfy your application needs. Those stepper drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all stepper drives that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
MX3660 MX3660: Leadshine MX3660 3-Axis Stepper Drive with I/O's; 60 VDC/6.0 A $289.00 / $275.00 Order Quantity:
MX4660 MX4660: Leadshine MX4660 4-Axis Stepper Drive with I/O's; 60 VDC/6.0 A $379.00 / $362.00 Order Quantity:
EM705 EM705: Leadshine EM705 Advanced 2-Phase DSP Stepper Drive Max 70VDC/2.2A with Stall Detection $129.00 / $122.00 Order Quantity:
EM806 EM806: Leadshine EM806 Advanced 2-Phase DSP Stepper Drive Max 80VDC/8.2A with Stall Detection $139.00 / $132.00 Order Quantity:
DM856 DM856: Leadshine DM856 2-phase DSP Digital Stepper Drive with Max 80 VDC / 5.6A $119.00 / $119.00 Order Quantity:
DM860 DM860: Leadshine DM860 2-phase DSP Digital Stepper Drive with Max 80 VDC/7.2A $139.00 / $135.00 Order Quantity:
DM870 DM870: Leadshine DM870 2-phase DSP Digital Stepper Drive with Max 80 VDC / 7.0A $139.00 / $135.00 Order Quantity:
DM805-AI DM805-AI: Leadshine DM805-AI Stepper Drive with Built-in Speed Controller (oscillator) 80 VDC/7.0 A $139.00 / $132.00 Order Quantity:
MA860H MA860H: Leadshine MA860H 2-Phase Stepper Drive with Max 110VDC or 80 VAC / 7.2A $135.00 / $128.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
