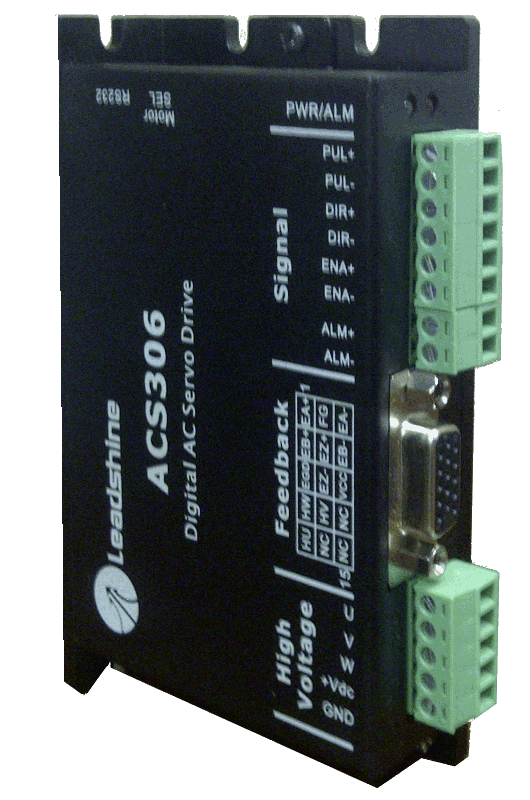

ACS306 : Leadshine ACS306 DC Input Brushlss Servo Drive with 20-30 VDC Input Voltage and 15A Peak Current

by Leadshine Technology, Inc.

User Manual

Features

Advance DSP current control technology
Step & Dir, or CW/CCW control
High precision; smooth & quiet motor movement
Input voltage: 20-30 VDC (varies by applications)
Continuous current: 6 A
Peak current: 15A
Capable of driving 10 - 200 W brushless servo motors
Electronic gear rate from 1/255 to 255
Built-in motion profile for testing with trapezoidal velocity profile
Opto-isolated
Small size, surface-mount technology

Buy Online
Usually shipped in 1-2 days from USA

Regular Price:

~~$179.00~~

Online Prices:

$159.00

Qty 1 - 4

$151.00

Qty 5 - 9

Stock:

In stock

Qty:

OverviewSpecificationsMechanicalConnectionDownload

Overview

Leadshine's fully digital AC servo drive ACS306 was developed with 32-bit DSP based on advanced control algorithm. Since its input commands are PUL/DIR signals, the users can upgrade stepping drives to the ACS306 without changing control systems. The ACS306 can offer high precision, high speed and high reliability performance, and widely used in inkjet printers, engraving machines, and etc. A built-in controller can be used for testing and tuning. PC based and handheld configuration & tuning tools can meet different tuning environments or requirements. The ACS306 can drive both DC brushless and AC servo motors. But it is more suitable for the DC brushless servo motors. Compare to ACS606, the ACS306 has smaller size and additional alarm (fault) signal output to indicate error

Specifications

Model:	ACS306
Control Mode:	Step & Dir
Max Input Frequency:	200KHz
Input Voltage Range:	20 - 30 VDC
Continuous Current:	6 A
Peak Current:	15 A
Logic Current Range:	7-16 mA (10mA typical)
Logic Voltage Range:	4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low
Communication Type:	RS232
Pulse enabled at:	Rising edge
Electronic gear ratio:	1/255 - 255
# of Digital Inputs:	3
# of Digital Onputs:	1
Step Width:	2,500 ns
Minimal Direction Setup Time:	5,000 ns
Protection:	Over-current; over-voltage; encoder or hall error; position following error
Isolation Resistance:	500M Ohm
Environment:	Avoid dust, oil fog and corrosive gases
Ambient Temporature:	0-50°C
Humidity:	40–95% RH
Operating Temporature:	0-70°C
Vibration:	5.9 m/s² Max
Storage Temporature:	-20-65°C
Specification:	4.57 X 2.73 X 1.04 Inches
Weight:	0.40 lb

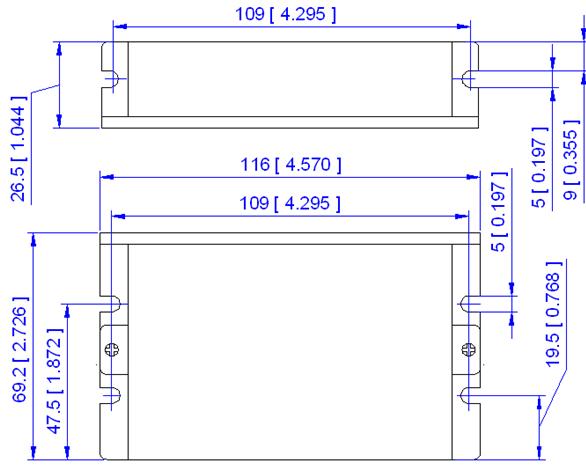

Mechanical Specification

Unit: mm
1 inch = 25.4 mm

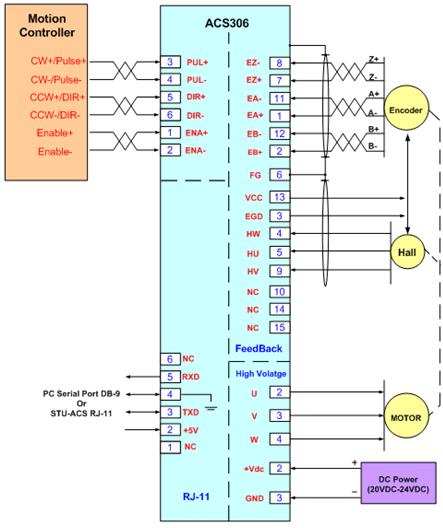

Typical Connection

Download(s) for

User manual:	ACS306hm.pdf
Tuning software manual:	ACS306sm.pdf
Tuning software:	ProTuner_ACS306_Setup_V1.0.zip
