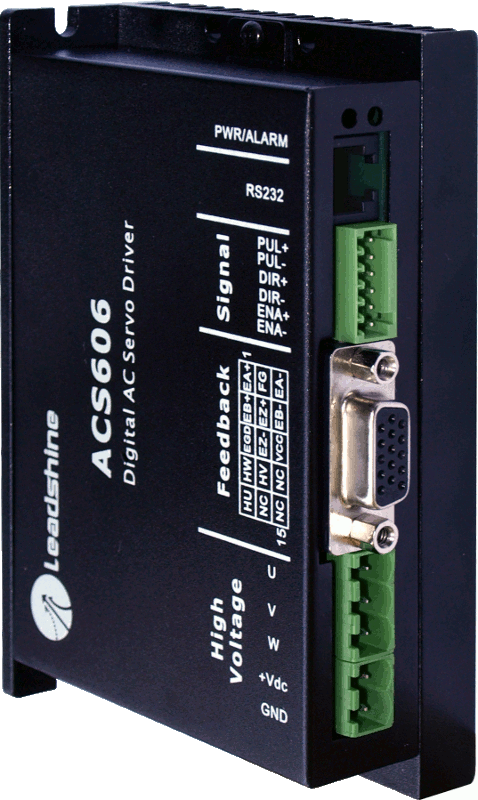

ACS606 : Leadshine ACS606 DC Input Brushlss Servo Drive with 18-60 VDC Input Voltage and 6A Continuous / 18A Peak Current

by Leadshine Technology, Inc.

User Manual | Datasheet

Features

Advance DSP current control technology
Step & Dir, or CW/CCW control
Input voltage: 18-60 VDC (varies by applications)
Continuous current: 6 A
Peak current: 18A
Capable of driving 10 - 200 W brushless servo motors
Electronic gear rate from 1/255 to 255
Built-in motion profile for testing with trapezoidal velocity profile
Opto-isolated
Small size, surface-mount technology

Buy Online
Usually shipped in 1-2 days from USA

Regular Price:

~~$199.00~~

Online Prices:

$179.00

Qty 1 - 4

$170.00

Qty 5 - 9

Stock:

In stock

Qty:

OverviewSpecificationsMechanicalConnectionDownload

Overview

Leadshine's fully digital AC servo drive ACS606 was developed with 32-bit DSP based on advanced control algorithm. Since its input commands are PUL/DIR signals, the users can upgrade stepping drives to the ACS606 without changing control systems. The ACS606 can offer high precision, high speed and high reliability performance, and widely used in inkjet printers, engraving machines, and etc. A built-in controller can be used for testing and tuning. PC based and handheld configuration & tuning tools can meet different tuning environments or requirements. The ACS606 can drive both DC brushless and AC servo motors.But it is more suitable for the DC brushless servo motors. Compare to the ACS806, the ACS606 has less I/O, thus has smaller size and higher cost-effective.

Specifications

Model:	ACS606
Control Mode:	Step & Dir
Max Input Frequency:	200KHz
Input Voltage Range:	18 - 60 VDC
Continuous Current:	6 A
Peak Current:	15 A
Logic Current Range:	7-16 mA (10mA typical)
Logic Voltage Range:	4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low
Communication Type:	RS232
Pulse enabled at:	Rising edge
Electronic gear ratio:	1/255 - 255
# of Digital Inputs:	2
Step Width:	850 ns
Minimal Direction Setup Time:	5,000 ns
Protection:	Over-current; over-voltage; phase error; encoder or hall error; limit error; position following error
Isolation Resistance:	500M Ohm
Environment:	Avoid dust, oil fog and corrosive gases
Ambient Temporature:	0-50°C
Humidity:	40–95% RH
Operating Temporature:	0-70°C
Vibration:	5.9 m/s² Max
Storage Temporature:	-20-65°C
Specification:	4.65 X 4.41 X 1.34 Inches
Weight:	0.62 lb

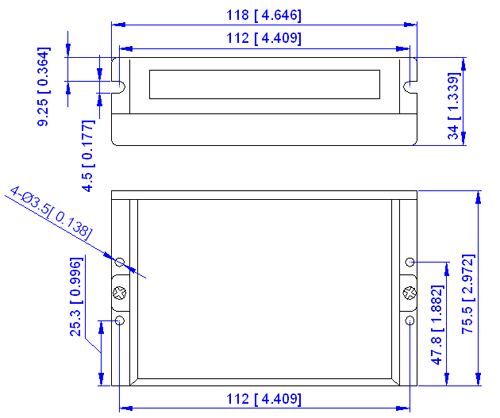

Mechanical Specification

Unit: mm
1 inch = 25.4 mm

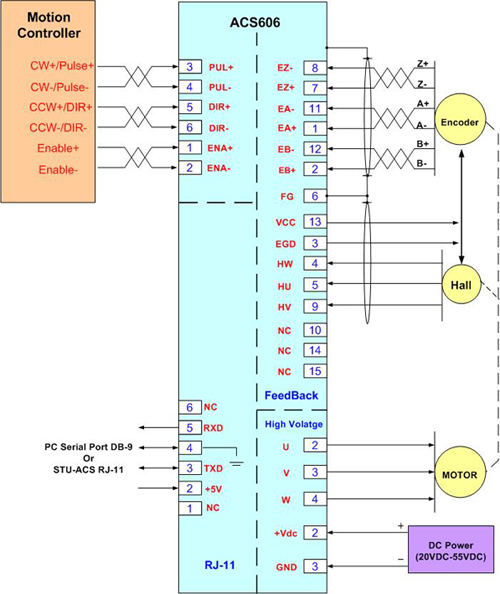

Typical Connection

Download(s) for

Datasheet:	ACS606d.pdf
User manual:	ACS606m.pdf
Tuning software manual:	ACS606sm.pdf
Tuning software:	ProTuner_ACS606_Setup_V1.1.zip

Accessories

Listed below are accessories for Leadshine ACS606 DC Input Brushlss Servo Drive with 18-60 VDC Input Voltage and 6A Continuous / 18A Peak Current.

Model / Description	1 Pc. / 5 Pc. Price	Purchase
1.4.4-0609505-B3: RS232 Cable for Tuning Leadshine Stepper/Servo Drive	$10.00 / $9.00	Order Quantity:
USBToRS232: USB to RS232 Converter Cable with DB9 Connector	$25.00 / $22.00	Order Quantity:

Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Servo Motors CNC servo motor

AMT offers matching servo motors for ACS606 to satisfy your application needs. Made of high quality materials, those servo motors can run very qietly and smoothly with low noise, low motor heating. They have been widely implemented in various industrial applications.

To see all servo motors that AMT offers, please click here.

Model / Description	Spec.	1 Pc. / 5 Pc. Price	Purchase
BLM57050-1000: Leadshine BLM57050-1000 NEMA 23 50W BLDC Servo Motor with Integrated 1000-Line Encoder		$139.00 / $135.00	Order Quantity:
BLM57090-1000: Leadshine BLM57090-1000 NEMA 23 90W BLDC Servo Motor with Integrated 1000-Line Encoder		$149.00 / $145.00	Order Quantity:
BLM57130-1000: Leadshine BLM57130-1000 NEMA 23 130W BLDC Servo Motor with Integrated 1000-Line Encoder		$159.00 / $153.00	Order Quantity:
BLM57180-1000: Leadshine BLM57180-1000 NEMA 23 180W BLDC Servo Motor with Integrated 4,000 PPR Encoder		$169.00 / $162.00	Order Quantity:

Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for ACS606. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.

To see all power supplies that AMT offers, please click here.

Model / Description	Spec.	1 Pc. / 5 Pc. Price	Purchase
RPS2410: Leadshine RPS2410 24 VDC / 10A Regulated Switching Power Supply 85-132 or 176-265 VAC Input		$59.00 / $56.00	Order Quantity:
RPS369: Leadshine RPS369 36 VDC / 9.7A Regulated Switching Power Supply with 85-132 / 176-265 VAC Input		$69.00 / $65.00	Order Quantity:
RPS488: Leadshine RPS488 48 VDC / 7.3A Regulated Switching Power Supply 85-132 / 176-265 VAC Input		$72.00 / $68.00	Order Quantity:
RPS4810: Leadshine RPS4810 48VDC /10.4A Regulated Switching Power Supply with 85-132 / 176-265 VAC		$99.00 / $93.00	Order Quantity:
PS405-5: Leadshine PS405-5 Linear Power Supply;36 VDC/5A continuous; 5 VDC / 1A Auxiliary; 180-250 VAC Input		$75.00 / $71.00	Order Quantity:
PS405-12: Leadshine PS405-12 Linear Power Supply;36 VDC/5A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input		$75.00 / $71.00	Order Quantity:
PS408-5: Leadshine PS408-5 Linear Power Supply;36 VDC/8A continuous; 5 VDC / 1A Auxiliary; 180-250 VAC Input		$88.00 / $84.00	Order Quantity:
PS408-12: Leadshine PS408-12 Linear Power Supply;36 VDC/8A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input		$88.00 / $84.00	Order Quantity:

Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Frequently Bought Motor & Drive Sets Including ACS606

The following motor & drive sets are frequently bought by our customers in the past to simply their purchasing process and save time. All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts are also offered for them.

	BLDC-P090: 90W NEMA 23 Brushless DC Servo Set Including ACS606 Servo Drive and BL57090-1000 Servo Motor with 4,000 PPR Encoder	1 Pc. / 5 Pc. Price: $275.00 / $259.00
	BLDC-P130: 130W NEMA 23 Brushless DC Servo Set Including ACS606 Servo Drive and BL57130-1000 Servo Motor with 4,000 PPR Encoder	1 Pc. / 5 Pc. Price: $289.00 / $271.00
	BLDC-P180: 180W NEMA 23 Brushless DC Servo Set Including ACS606 Servo Drive and BL57180-1000 Servo Motor with 4,000 PPR Encoder	1 Pc. / 5 Pc. Price: $299.00 / $287.00
