Leadshine BLM57050-1000 NEMA 23 50W Brushless DC servo motor with of 3000 RPM Continuous Speed and Integrated 1000-Line Incremental Encoder

BLM57050-1000 : Leadshine BLM57050-1000 NEMA 23 50W Brushless DC servo motor with of 3000 RPM Continuous Speed and Integrated 1000-Line Incremental Encoder
by Leadshine Technology, Inc. (write an review)
BLM57050-1000
Features
  • NEMA 23 frame size
  • 1000 line increamental encoder with A, B signals
  • 50 W rated power
  • 24 VDC rated voltage
  • 22.7 oz-in rated torque / 68 oz-in peak
  • 3000 RPM rated speed / 4000 peak
  • 0.250-inch shaft
  • Quick acceleration
  • High accuracy; smooth movement; quiet movement
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $149.00
  Online Prices: $139.00 Qty  1 - 4
  $135.00 Qty  5 - 9
  You save 6.71%
  Contact us for qty 10 & up
  Stock: In stock
Qty:

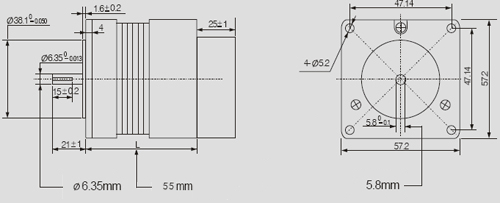

OverviewSpecificationsMechanicalDownload
Overview
Built with high quality materials, Leadshine BLM57050-1000 is a 50W brushless DC servo motor at industrial quality. BLM57050-1000 can provide smooth movement with low noise and motor heating in your motion control system. BLM57050-1000 is integrated with a 1000-line incremental encoder.
Accessories

Listed below are accessories for Leadshine BLM57050-1000 NEMA 23 50W Brushless DC servo motor with of 3000 RPM Continuous Speed and Integrated 1000-Line Incremental Encoder.

  Model / Description 1 Pc. / 5 Pc. Price Purchase
CABLE-ENC-02 CABLE-ENC-02: 7.2-Foot (2.2-Meter) Encoder Extension Cable for Leadshine Brushless Servo Motors $14.00 / $13.00 Order Quantity:
CABLE-ENC-03 CABLE-ENC-03: 9.8-Foot (3-Meter) Encoder Extension Cable for Leadshine Brushless Servo Motors $16.00 / $15.00 Order Quantity:
CABLE-ENC-05 CABLE-ENC-05: 16.4-Foot (5-Meter) Encoder Extension cable for Leadshine Brushless Servo Motors $25.00 / $23.00 Order Quantity:
CABLE-ENC-10 CABLE-ENC-10: 32.8-Foot (10-Meter) Encoder Extension cable for Leadshine Brushless Servo Motors $38.00 / $36.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Servo Drive(s)servo motor drive

AMT offers matching servo drives for BLM57050-1000 to satisfy your application needs. Those servo drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all servo drives that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
ACS306 ACS306: Leadshine ACS306 Brushless Servo Drive Max 30VDC Input Voltage and 15A Peak Current $159.00 / $151.00 Order Quantity:
ACS606 ACS606: Leadshine ACS606 Brushless Servo Drive Max 60VDC Input Voltage and 18A Peak Current $179.00 / $170.00 Order Quantity:
ACS806 ACS806: Leadshine ACS806 Brushless Servo Drive Max 80VDC Input Voltage and 18A Peak Current $209.00 / $199.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
Frequently Bought Motor & Drive Set Including BLM57050-1000

The following motor & drive set is frequently bought by our customers in the past to simply their purchasing process and save time. All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts are also offered for them.

BLDC-P050 BLDC-P050: 50W NEMA 23 Brushless DC Servo Set Including ACS606 Servo Drive and BL57050-1000 Servo Motor with 4,000 PPR Encoder
1 Pc. / 5 Pc. Price:
$259.00 / $245.00
