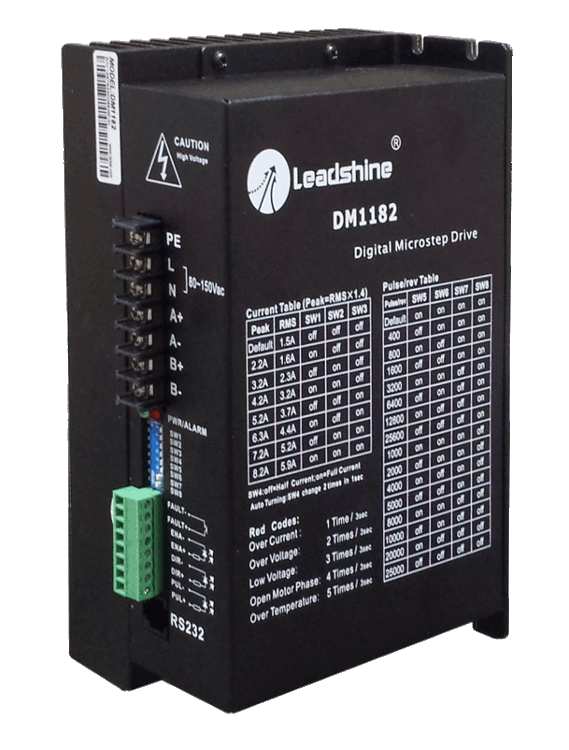

Leadshine DM1182 High Performance 2-Phase 32-Bit DSP Digital Stepper Drive with 80-150 VAC Input Voltage and Max 8.2A Output Current

DM1182 : Leadshine DM1182 High Performance 2-Phase 32-Bit DSP Digital Stepper Drive with 80-150 VAC Input Voltage and Max 8.2A Output Current
by Leadshine Technology, Inc. (write an review)
DM1182
Features
  • Step & direction or CW/CCW control
  • DSP-based stepper control technology
  • Anti resonance
  • Automatic motor identification and self configuration
  • Extra low noise
  • Extra smooth movement
  • Low drive & motor heating
  • Maximum frequency: 200KHz
  • Input voltage: 80 - 150 VAC / 113 - 212 VDC
  • Output current: 7 selections of 2.20 - 8.20A via DIP switches; or any value of 0.5 - 8.20A via software configuration
  • Micro steps: 16 selections of full - 128 step via DIP switches; or full - 512 step via software configuration
  • Automatic idle current reduction
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $269.00
  Online Prices: $199.00 Qty  1 - 4
  $193.00 Qty  5 - 9
  You save 26.02 %sss
  Contact us for qty 10 & up
  Stock: In stock
Qty:
OverviewSpecificationMechanicalConnectionDownload
Overview
By implementing the latest DSP current control technology, Leadshine DM1182 is a high performance 2-phase digital stepper drive. It takes step & direction or CW/CCW control commands, and is very simple to implement in OEM applications.

The DM1182 stepper drive adopts advanced features like electrical damping, anti-resonance, start-up smoothing, multi-stepping... With the input voltage of 80 - 150 VAC / 113 - 212 VDC and output current of 2.20 - 8.20 A, it is capable of driving a wide range of 2-phase stepper motors with high precision at extra smoothness, quietness, and very low motor heating.

Its multi-Stepping feature allows a low resolution step input to produce a much higher microstep output for smoother & quiet motor movement, and much lower motor heating. This feature will significantly improve the performance of your stepper control systems.

A DM1182 stepper drive is easy to setup and configure via DIP switches. There are 16 resolution settings from 200 - 25600, and 7 output current settings from 2.20 - 8.20. Also, a user can simply set the idle current to full (100%) or 50% of the output current via a DIP switch.

Its motor auto identification and drive self-configuration feature allows quick and easy setup for various motors at optimal performance.

For advanced users, Leadshine offers tuning software for performance fine-tuning. A user can tune a stepper motor's three resonance areas (usually around 0.5 rps, 1 rps, and 2 rps) to reduce noise and vibration, set microstep resolution to any value from 200 to 104,000 (increase by 200), and configure output current to any value of 2.20 - 8.20A (increased by 0.1A); and idle current of 1-100% of output current.
Accessories

Listed below are accessories for Leadshine DM1182 High Performance 2-Phase 32-Bit DSP Digital Stepper Drive with 80-150 VAC Input Voltage and Max 8.2A Output Current.

  Model / Description 1 Pc. / 5 Pc. Price Purchase
1.4.4-0609505-B3 1.4.4-0609505-B3: RS232 Cable for Tuning Leadshine Stepper/Servo Drive $10.00 / $9.00 Order Quantity:
USBToRS232 USBToRS232: USB to RS232 Converter Cable with DB9 Connector $25.00 / $22.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Stepper Motorshybrid stepping motor

AMT offers matching stepper motors for DM1182 to satisfy your application needs. Made of high quality materials, those stepper motors can run very qietly and smoothly with low noise, low motor heating. They have been widely implemented in various industrial applications.

To see all stepper motors that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
HS3442 HS3442: AMT HS3442 NEMA 34 2-Phase 595 oz-in High Torque Stepper Motor with 0.5'' Single Shaft $89.00 / $83.00 Order Quantity:
HS3468 HS3468: AMT HS3468 NEMA 34 2-Phase 971 oz-in High Torque Stepper Motor with 0.5'' Single Shaft $99.00 / $96.00 Order Quantity:
HS3485 HS3485: AMT HS3485 NEMA 34 2-Phase 1,203 oz-in High Torque Stepper Motor with 0.5'' Single Shaft $109.00 / $106.00 Order Quantity:
HS34100 HS34100: AMT HS34100 NEMA 34 2-Phase 1,416 oz-in High Torque Stepper Motor with 0.5'' Single Shaft $119.00 / $109.00 Order Quantity:
HS4212 HS4212: AMT HS4212 NEMA 42 2-Phase 1770 oz-in High Torque Stepper Motor with 0.748'' Single Shaft $139.00 / $129.00 Order Quantity:
HS4215 HS4215: AMT HS4215 NEMA 42 2-Phase 2124 oz-in High Torque Stepper Motor with 0.748'' Single Shaft $149.00 / $139.00 Order Quantity:
HS4220 HS4220: AMT HS4220 NEMA 42 2-Phase 2,832 oz-in High Torque Stepper Motor with 0.748'' Single Shaft $159.00 / $149.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
Frequently Bought Motor & Drive Sets Including DM1182

The following motor & drive sets are frequently bought by our customers in the past to simply their purchasing process and save time. All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts are also offered for them.

STS-H134-971 STS-H134-971: 971 Oz-In (6.86 Nm) Nema 34 Stepper Drive Set, Direct 110/120 VAC Input Drive, No Power Supply Needed
1 Pc. / 5 Pc. Price:
$318.00 / $299.00
STS-H134-1203 STS-H134-1203: 1203 Oz-In (8.5 Nm) Nema 34 Stepper Drive Set, Direct 110/120 VAC Input Drive, No Power Supply Needed
1 Pc. / 5 Pc. Price:
$328.00 / $311.00
STS-H134-1416 STS-H134-1416: 1416 Oz-In (10 Nm) Nema 34 Stepper Drive Set, Direct 110/120 VAC Input Drive, No Power Supply Needed
1 Pc. / 5 Pc. Price:
$348.00 / $327.00
STS-H134-1700 STS-H134-1700: 1700 Oz-In (12 Nm) Nema 34 Stepper Drive Set, Direct 110/120 VAC Input Drive, No Power Supply Needed
1 Pc. / 5 Pc. Price:
$379.00 / $362.00
STS-H142-1770 STS-H142-1770: 1770 Oz-In (12.5 Nm) Nema 42 Stepper Drive Set, Direct 110/120 VAC Input Drive, No Power Supply Needed
1 Pc. / 5 Pc. Price:
$398.00 / $379.00
STS-H142-2124 STS-H142-2124: 2124 Oz-In (15 Nm) Nema 42 Stepper Drive Set, Direct 110/120 VAC Input Drive, No Power Supply Needed
1 Pc. / 5 Pc. Price:
$408.00 / $389.00
STS-H142-2832 STS-H142-2832: 2832 Oz-In (20 Nm) Nema 42 Stepper Drive Set, Direct 110/120 VAC Input Drive, No Power Supply Needed
1 Pc. / 5 Pc. Price:
$422.00 / $409.00
