Leadshine DM422 2-Phase DSP Digital Stepper Drive with 20-40VDC Voltage and 0.3-2.2A Output Current

DM422 : Leadshine DM422 2-Phase DSP Digital Stepper Drive with 20-40VDC Voltage and 0.3-2.2A Output Current
by Leadshine Technology, Inc. (write an review)
DM422
Features
  • Step & direction or CW/CCW control
  • DSP-based stepper control technology
  • Anti resonance
  • Automatic motor identification and self configuration
  • Extra low noise
  • Extra smooth movement
  • Low drive & motor heating
  • Maximum frequency: 75KHz
  • Input voltage: 20 - 40 VDC
  • Output current: 7 selections of 0.50 - 2.20A via DIP switches; or any value of 0.3 - 2.20A via software configuration
  • Micro steps: 4 selections of full - 32 step via DIP switches; or full - 512 step via software configuration
  • Automatic idle current reduction
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $82.00
  Online Prices: $69.00 Qty  1 - 4
  $65.00 Qty  5 - 9
  You save 15.85 %
  Contact us for qty 10 & up
  Stock: In stock
Qty:

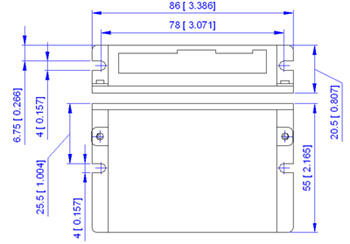

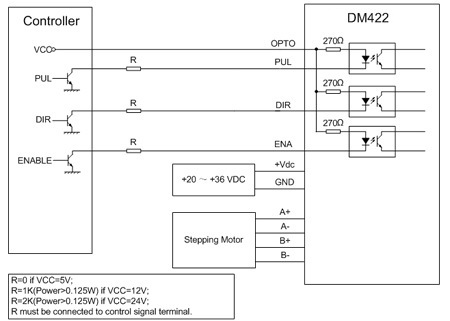

OverviewSpecificationMechanicalConnectionDownload
Overview
By implementing the latest DSP current control technology, Leadshine DM422 is a high performance 2-phase digital stepper drive. It takes step & direction or CW/CCW control commands, and is very simple to implement in OEM applications.

The DM422 stepper drive adopts advanced features like electrical damping, anti-resonance, start-up smoothing, multi-stepping... With the input voltage of 20 - 40 VDC and output current of 0.50 - 2.20 A, it is capable of driving a wide range of 2-phase stepper motors with high precision at extra smoothness, quietness, and very low motor heating.

Its multi-Stepping feature allows a low resolution step input to produce a much higher microstep output for smoother & quiet motor movement, and much lower motor heating. This feature will significantly improve the performance of your stepper control systems.

A DM422 stepper drive is easy to setup and configure via DIP switches. There are 4 resolution settings from 200 - 6400, and 7 output current settings from 0.50 - 2.20. Also, a user can simply set the idle current to full (100%) or 50% of the output current via a DIP switch.

Its motor auto identification and drive self-configuration feature allows quick and easy setup for various motors at optimal performance.

For advanced users, Leadshine offers tuning software for performance fine-tuning. A user can tune a stepper motor's three resonance areas (usually around 0.5 rps, 1 rps, and 2 rps) to reduce noise and vibration, set microstep resolution to any value from 200 to 104,000 (increase by 200), and configure output current to any value of 0.50 - 2.20A (increased by 0.1A); and idle current of 1-100% of output current.
Accessories

Listed below are accessories for Leadshine DM422 2-Phase DSP Digital Stepper Drive with 20-40VDC Voltage and 0.3-2.2A Output Current.

  Model / Description 1 Pc. / 5 Pc. Price Purchase
1.4.4-0409505-B3 1.4.4-0409505-B3: RS232 cable for tuning small Leadshine stepper/servo drive $10.00 / $9.00 Order Quantity:
USBToRS232 USBToRS232: USB to RS232 Converter Cable with DB9 Connector $25.00 / $22.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Stepper Motorshybrid stepping motor

AMT offers matching stepper motors for DM422 to satisfy your application needs. Made of high quality materials, those stepper motors can run very qietly and smoothly with low noise, low motor heating. They have been widely implemented in various industrial applications.

To see all stepper motors that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
HS1704 HS1704: AMT HS1704 NEMA 17 2-Phase 57 oz-in High Torque Stepper Motor with 0.197'' Single Shaft $15.00 / $14.00 Order Quantity:
HS1705 HS1705: AMT HS1705 NEMA 17 2-Phase 74 oz-in High Torque Stepper Motor with 0.197'' Single Shaft $16.00 / $15.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for DM422. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.

To see all power supplies that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
RPS2410 RPS2410: Leadshine RPS2410 24 VDC / 10A Regulated Switching Power Supply 85-132 or 176-265 VAC Input $59.00 / $56.00 Order Quantity:
RPS369 RPS369: Leadshine RPS369 36 VDC / 9.7A Regulated Switching Power Supply with 85-132 / 176-265 VAC Input $69.00 / $65.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
