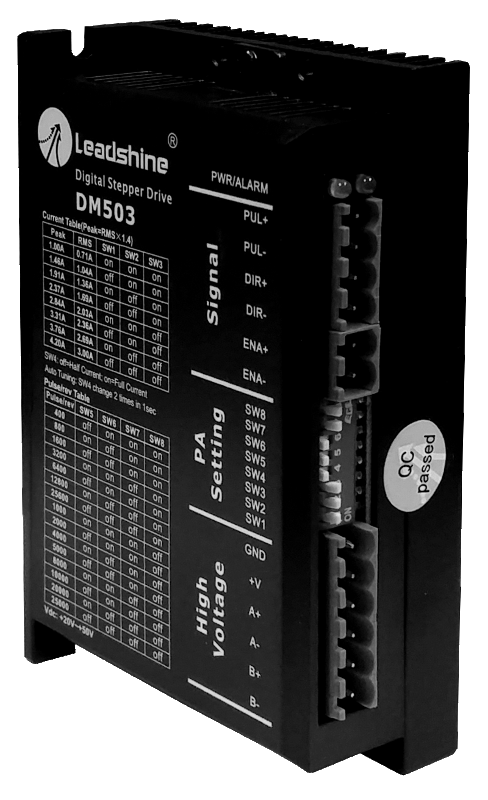

Leadshine DM03 2-Phase 32-Bit DSP Digital Stepper Drive of 20 - 50 VDC Input Voltage and 1.0 - 4.2A Output Current

DM503 : Leadshine DM03 2-Phase 32-Bit DSP Digital Stepper Drive of 20 - 50 VDC Input Voltage and 1.0 - 4.2A Output Current
by Leadshine Technology, Inc. (write an review)
DM503
Features
  • Step & direction or CW/CCW control
  • DSP-based stepper control technology
  • Anti resonance
  • Extra low noise
  • Extra smooth movement
  • Low drive & motor heating
  • Maximum frequency: 200KHz
  • Input voltage: 20 - 50 VDC
  • Output current: 8 selections of 1.00 - 4.20A via DIP switches
  • Micro steps: 15 selections of half - 128 step via DIP switches
  • Automatic idle current reduction
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $95.00
  Online Prices: $79.00 Qty  1 - 4
  $76.00 Qty  5 - 9
  You save 16.84 %
  Contact us for qty 10 & up
  Stock: In stock
Qty:
OverviewSpecificationMechanicalConnectionDownload

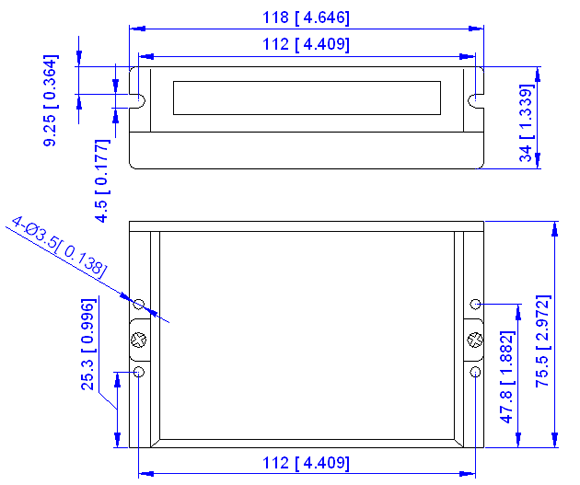

Overview

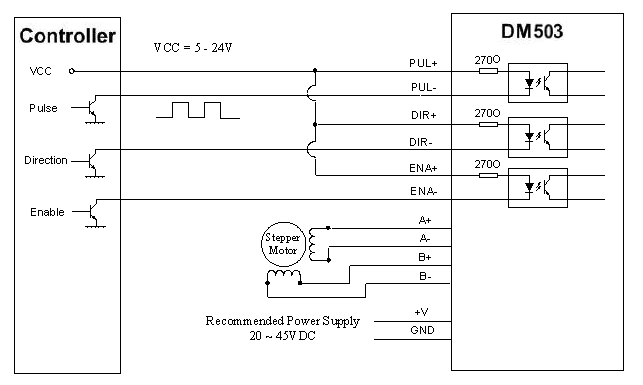

By implementing the latest DSP current control technology, Leadshine DM503 is a high performance 2-phase digital stepper drive. It takes step & direction or CW/CCW control commands, and is very simple to implement in OEM applications.

The DM503 stepper drive adopts advanced features like electrical damping, anti-resonance, start-up smoothing, multi-stepping... With the input voltage of 20 - 50 VDC and output current of 1.00 - 4.20 A, it is capable of driving a wide range of 2-phase stepper motors with high precision at extra smoothness, quietness, and very low motor heating.

Its multi-Stepping feature allows a low resolution step input to produce a much higher microstep output for smoother & quiet motor movement, and much lower motor heating. This feature will significantly improve the performance of your stepper control systems.

A DM503 stepper drive is easy to setup and configure via DIP switches. There are 15 resolution settings from 400 - 25600, and 8 output current settings from 1.00 - 4.20. Also, a user can simply set the idle current to full (100%) or 50% of the output current via a DIP switch.

Matching Stepper Motorshybrid stepping motor

AMT offers matching stepper motors for DM503 to satisfy your application needs. Made of high quality materials, those stepper motors can run very qietly and smoothly with low noise, low motor heating. They have been widely implemented in various industrial applications.

To see all stepper motors that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
HS1704 HS1704: AMT HS1704 NEMA 17 2-Phase 57 oz-in High Torque Stepper Motor with 0.197'' Single Shaft $15.00 / $14.00 Order Quantity:
HS1705 HS1705: AMT HS1705 NEMA 17 2-Phase 74 oz-in High Torque Stepper Motor with 0.197'' Single Shaft $16.00 / $15.00 Order Quantity:
HS2311A HS2311A: AMT HS2311A NEMA 23 2-Phase 156 oz-in High Torque Stepper Motor with 0.25'' Single Shaft $20.00 / $19.00 Order Quantity:
HS2311B HS2311B: AMT HS2311B NEMA 23 2-Phase 156 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $21.00 / $20.00 Order Quantity:
57HS13 57HS13: Leadshine 57HS13 2-Phase NEMA 23 Stepper Motor with 255 OZ-IN (1.8 N.m) Torque $55.00 / $49.00 Order Quantity:
HS2320A HS2320A: AMT HS2320A NEMA 23 2-Phase 283 oz-in High Torque Stepper Motor with 0.25'' Single Shaft $27.00 / $26.00 Order Quantity:
HS2320B HS2320B: AMT HS2320B NEMA 23 2-Phase 283 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $28.00 / $27.00 Order Quantity:
HS2328A HS2328A: AMT HS2328A NEMA 23 2-Phase 400 oz-in High Torque Stepper Motor with 0.25'' Single Shaft $39.00 / $38.50 Order Quantity:
HS2328B HS2328B: AMT HS2328B NEMA 23 2-Phase 400 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $41.00 / $40.50 Order Quantity:
HS23B30A HS23B30A: AMT HS23B30A NEMA 23 2-Phase 382 Oz-In 2-Phase NEMA 23 Stepper Motor with 0.375 Inch Single Shaft $46.00 / $44.00 Order Quantity:
HS23B35A HS23B35A: AMT HS23B35A NEMA 23 2-Phase 495 Oz-In 2-Phase NEMA 23 Stepper Motor with 0.375 Inch Single Shaft $55.00 / $52.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for DM503. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.

To see all power supplies that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
RPS2410 RPS2410: Leadshine RPS2410 24 VDC / 10A Regulated Switching Power Supply 85-132 or 176-265 VAC Input $59.00 / $56.00 Order Quantity:
RPS369 RPS369: Leadshine RPS369 36 VDC / 9.7A Regulated Switching Power Supply with 85-132 / 176-265 VAC Input $69.00 / $65.00 Order Quantity:
RPS488 RPS488: Leadshine RPS488 48 VDC / 7.3A Regulated Switching Power Supply 85-132 / 176-265 VAC Input $72.00 / $68.00 Order Quantity:
SPS407 SPS407: Leadshine SPS407 Ultra Compact 42VDC / 7A Unregulated Switching Power Supply 180-250 VAC Input $87.00 / $82.00 Order Quantity:
SPS407-L SPS407-L: Leadshine SPS407-L Ultra Compact 42VDC / 4.7A Unregulated Switching Power Supply 90-130 VAC Input $87.00 / $83.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
