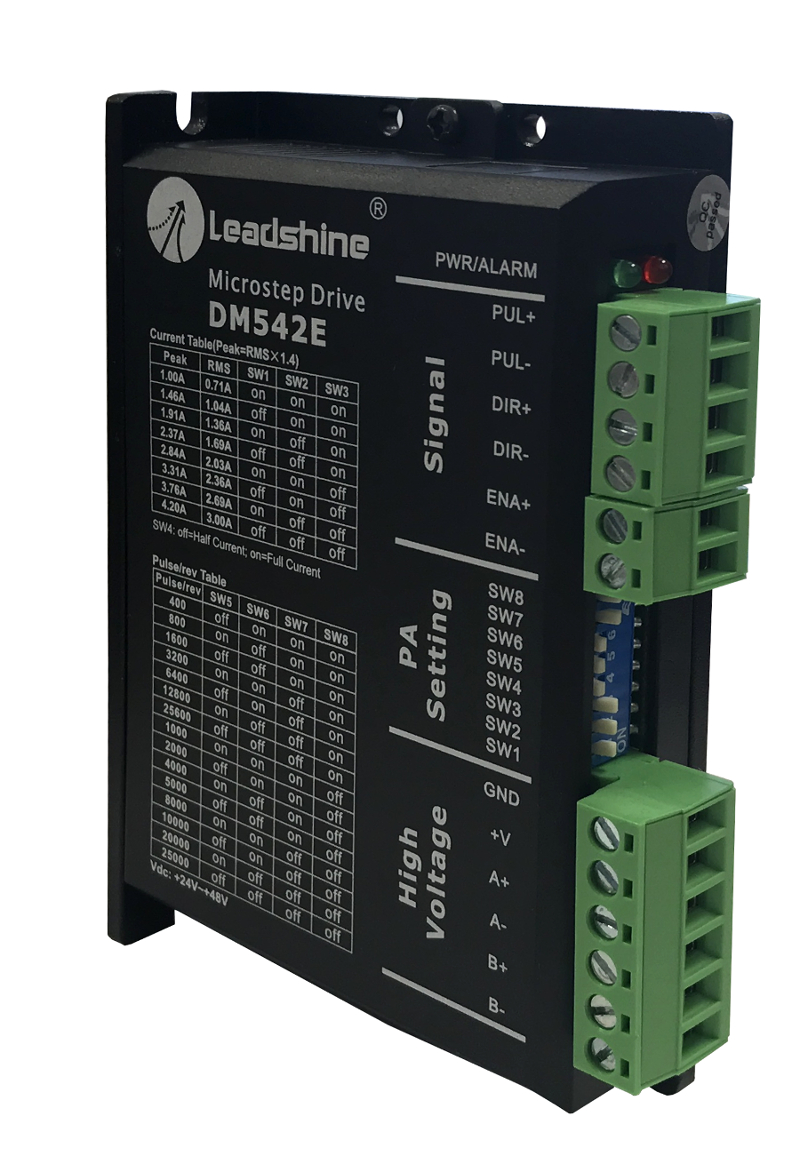

DM542E : Leadshine DM542E 2-Phase Stepper Drive with 20-50VDC Voltage and 1.0-4.2A Current

by Leadshine Technology, Inc.

User Manual

Features

Anti-Resonance for optimal torque, smooth motion, low motor heating and noise
Motor auto-identification and parameter auto-configuration for good performance from wide-range motor
Step & Direction (PUL/DIR) control
Multi-Stepping for smooth motor movement
TTL compatible and optically isolated inputs
Input voltage 20-50VDC
16 selectable micro-step resolutions of 400-25,600 via DIP switches
8 selectable output current settings of 1.0 – 4.2A via DIP switches
Soft-start with no “jump” when powered on
Pulse input frequency up to 200 KHz.
Automatic idle-current reduction
Protections for over-voltage, over-current, and bad motor connection

Buy Online
Usually shipped in 1-2 days from USA

Regular Price:

~~$59.00~~

Online Prices:

$49.00

Qty 1 - 4

$48.00

Qty 5 - 9

$47.00

Qty 10 - 24

$45.00

Qty 25 - 49

$42.00

Qty 50+

Stock:

In stock

Qty:

OverviewSpecificationMechanicalDownload

Overview

The DM542E is a digital stepper drive with simple design and easy setup. By implementing Leadshine advanced stepper control technology, this stepper drive is able to power 2-phase and 4 phase stepper motors smoothly with optimal torque and low motor heating & noise. Its operating voltage is 20-50VDC and it can output up to 4.2A current. All the micro step and output current are done via DIP switches. Therefore, the DM542E are ideal choices for applications requiring simple step & direction control of NEMA 17, 23, and 24 stepper motors.

Specification

Model:	DM542E
Phase:	2
Control Mode:	Step & Direction
Max Input Frequency:	200KHz
Input Voltage Range:	20 - 50 VDC
Suggested Power Supply Voltage Range:	24-48 VDC
# of DIP Switch Resolution Configurations:	15
DIP Switch Resolution Setings:	400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
# of DIP Switch Current Configurations:	8
DIP Switch Current Configurations:	1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A
Logic Current Range:	7-16mA (10mA typical)
Logic Voltage Range:	4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low
Pulse enabled at:	Rising edge
Idle Current Percentage:	50 %
# of Digital Inputs:	3
Step Width:	2,500 ns
Minimal Direction Setup Time:	5,000 ns
Isolation Resistance:	500M Ohm
Environment:	Avoid dust, oil fog and corrosive gases
Ambient Temporature:	0-50°C
Humidity:	40–95% RH
Operating Temporature:	0-70°C
Vibration:	5.9 m/s² Max
Storage Temporature:	-20-65°C
Specification:	4.65 X 2.97 X 1.00 Inches
Weight:	0.5 lb

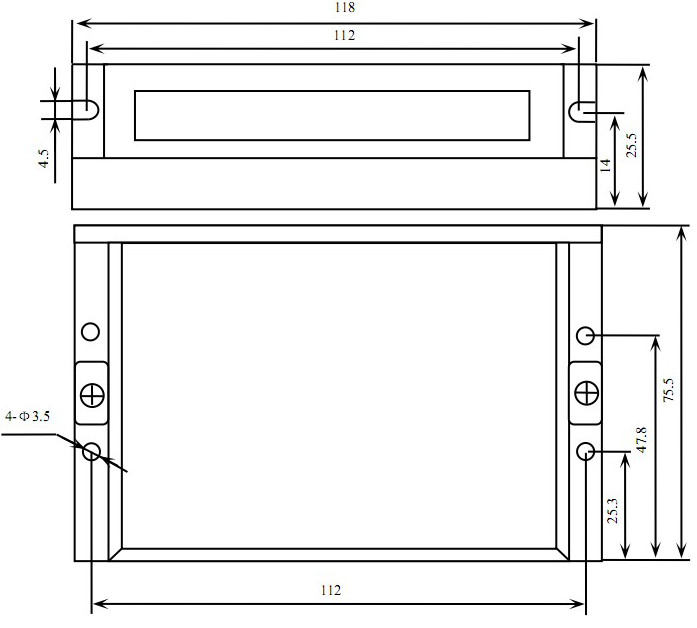

Mechanical Specification

Unit: mm
1 inch = 25.4 mm

Download(s) for

User manual:

DM542E_m.pdf

Matching Stepper Motorshybrid stepping motor

AMT offers matching stepper motors for DM542E to satisfy your application needs. Made of high quality materials, those stepper motors can run very qietly and smoothly with low noise, low motor heating. They have been widely implemented in various industrial applications.

To see all stepper motors that AMT offers, please click here.

	Model / Description	Spec.	1 Pc. / 5 Pc. Price	Purchase

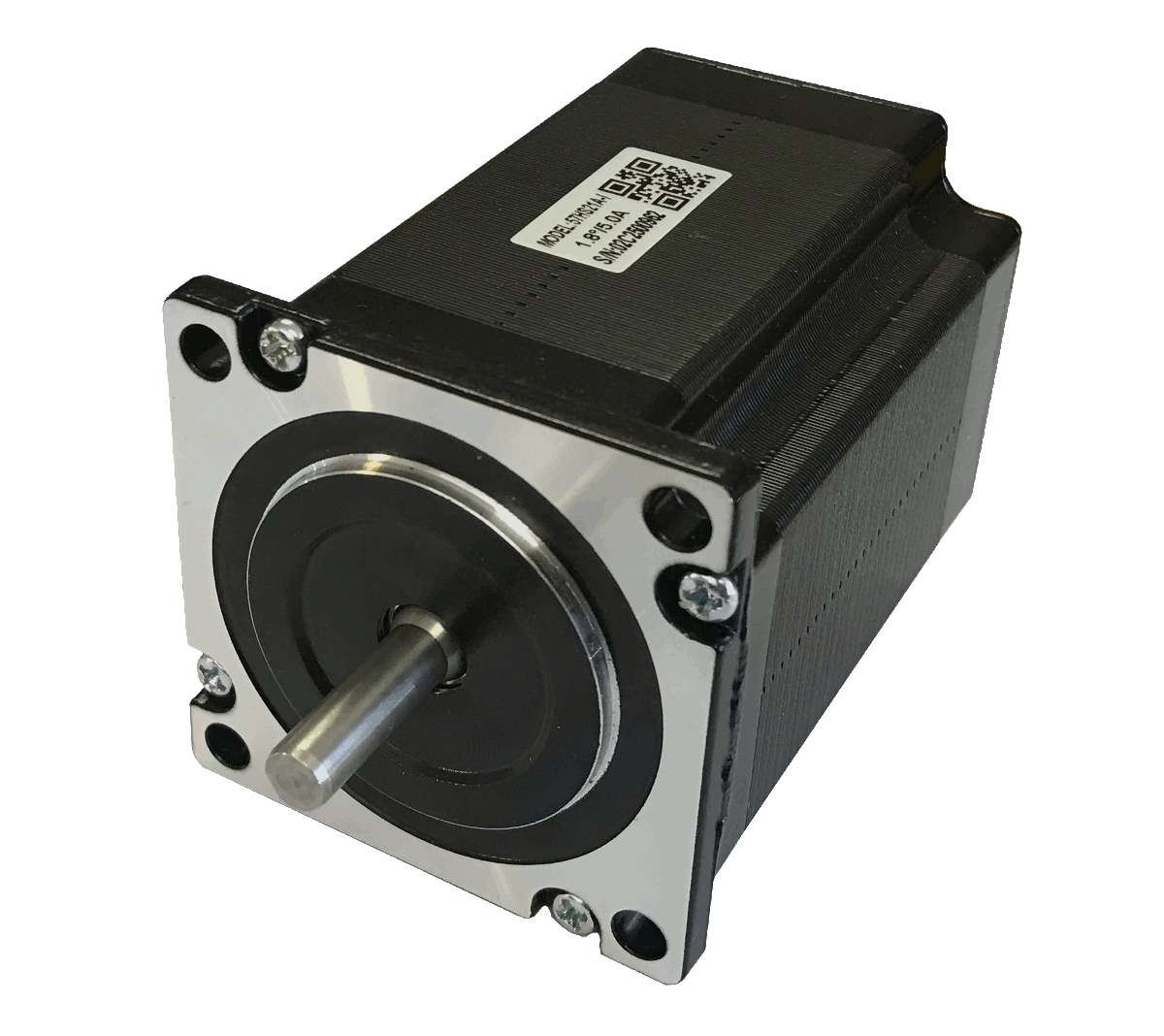

	57HS21A-I: Leadshine 2-Phase NEMA 23 Stepper Motor 298 OZ-IN (2.1 N.m) Torque Single 0.25'' Shaft		$55.00 / $49.00	Order Quantity:

Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for DM542E. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.

To see all power supplies that AMT offers, please click here.

Model / Description	Spec.	1 Pc. / 5 Pc. Price	Purchase
RPS2410: Leadshine RPS2410 24 VDC / 10A Regulated Switching Power Supply 85-132 or 176-265 VAC Input		$59.00 / $56.00	Order Quantity:
RPS369: Leadshine RPS369 36 VDC / 9.7A Regulated Switching Power Supply with 85-132 / 176-265 VAC Input		$69.00 / $65.00	Order Quantity:
RPS4810: Leadshine RPS4810 48VDC /10.4A Regulated Switching Power Supply with 85-132 / 176-265 VAC		$99.00 / $93.00	Order Quantity:
SPS407-L: Leadshine SPS407-L Ultra Compact 42VDC / 4.7A Unregulated Switching Power Supply 90-130 VAC Input		$87.00 / $83.00	Order Quantity:
SPS487-L: Leadshine SPS487-L Ultra Compact 48VDC / 4.0A Unregulated Switching Power Supply 90-130 VAC Input		$89.00 / $84.00	Order Quantity:
