Leadshine DM805-AI 2-Phase Digital Stepper Drive with built-in Speed Controller (Oscillator) Max 80 VDC Input Voltage and Max 7.0 A Output Current

DM805-AI : Leadshine DM805-AI 2-Phase Digital Stepper Drive with built-in Speed Controller (Oscillator) Max 80 VDC Input Voltage and Max 7.0 A Output Current
by Leadshine Technology, Inc. (write an review)
DM805-AI
Features
  • Advanced 32-bit DSP digital stepper drive with built-in speed controller
  • Input command of step & direction to function as a traditional 2-phase stepper drive
  • Input command of 0-5 VDC analog command for speed control
  • Built-in potentiometers for speed, acceleration and deceleration
  • Built-in 5V output for an analog control and testing
  • Preset acceleration/deceleration and adjust by built-in potentiometers
  • Limit signal input for safe operation
  • Input voltage of 20-80 VDC
  • Output current of 2.7-7.0 A via DIP switches, or 0.5-7.0A via software
  • Micro steps of full/half/8/64, or full-512 steps via software
  • Anti-Resonance, provides optimum torque and nulls mid-range instability
  • Motor auto identification and drive parameter auto-setup technology to offers easy setup and optimum responses with different 2-phase stepper motors
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $155.00
  Online Prices: $139.00 Qty  1 - 4
  $132.00 Qty  5 - 9
  $125.00 Qty 10 - 24
  You save 10.32 %
  Contact us for qty 25 & up
  Stock: In stock
Qty:

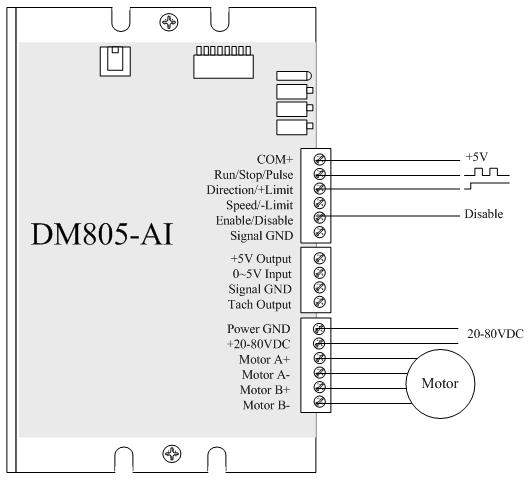

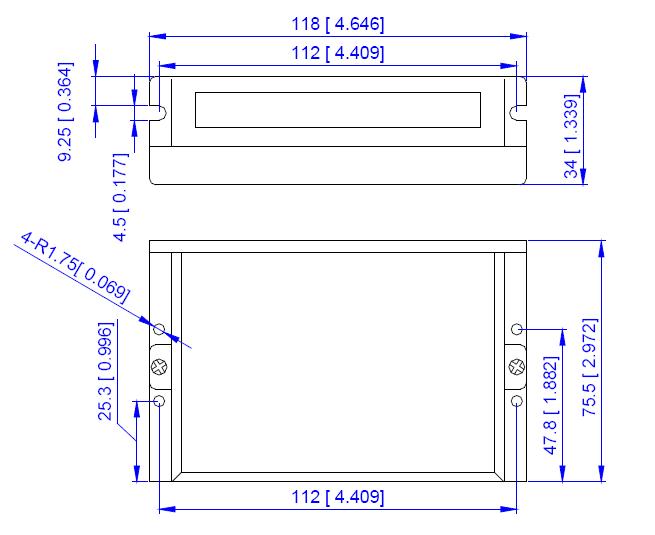

OverviewSpecificationMechanicalConnectionDownload
Overview
By Implementing the latest 32-bit DSP technology, Leadshine DM805-AI is a high performance 2-phase advanced multi-function digital stepper drive. It can function as a normal stepper drive for position control, or as a speed controller for 2-phase stepper motors.

When function as a normal step & direction stepper drive, DM805-AI can take input voltage of 20-80 VDC and output current of 0.5-7.0A. lt is capable of driving a wide range of 2-phase stepper motors such as NEMA 17, 23, 24, 34, and 42. Because of the adoption of high performance 32-bit DSP current control technology, it can power a stepper motor at very high accuracy with smooth motor movement and very low motor heating. Like other Leadshine digital stepper drives, its output current and step resolution can be set via DIP switches or tuning software.

DM805-AI also has a built-in speed controller and can also take 0-5 VDC analog command for speed controls. There are three built-in potentiometers used to set and adjust the velocity, acceleration and deceleration. In 0-5V speed mode, the motor speed is controllable and follows the analog 0-5V input. In high/low speed mode, the motor speed is selected by digital input and adjusted by the high/low speed potentiometers. A user can run the motor with little  configuration and connection. There is a 5V power supply output for customer use. Because DM805-AI moves so quiet and smooth at low speed (< 100 RPM) with very high torque, many  OEM customers have implemented DM805-AI stepper motor combination to replace expensive brushless DC motor planetary gearhead speed controller in their applications.
Accessories

Listed below are accessories for Leadshine DM805-AI 2-Phase Digital Stepper Drive with built-in Speed Controller (Oscillator) Max 80 VDC Input Voltage and Max 7.0 A Output Current.

  Model / Description 1 Pc. / 5 Pc. Price Purchase
1.4.4-0609505-B3 1.4.4-0609505-B3: RS232 Cable for Tuning Leadshine Stepper/Servo Drive $10.00 / $9.00 Order Quantity:
USBToRS232 USBToRS232: USB to RS232 Converter Cable with DB9 Connector $25.00 / $22.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Stepper Motorshybrid stepping motor

AMT offers matching stepper motors for DM805-AI to satisfy your application needs. Made of high quality materials, those stepper motors can run very qietly and smoothly with low noise, low motor heating. They have been widely implemented in various industrial applications.

To see all stepper motors that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
HS2311B HS2311B: AMT HS2311B NEMA 23 2-Phase 156 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $21.00 / $20.00 Order Quantity:
57HS13 57HS13: Leadshine 57HS13 2-Phase NEMA 23 Stepper Motor with 255 OZ-IN (1.8 N.m) Torque $55.00 / $49.00 Order Quantity:
HS2320A HS2320A: AMT HS2320A NEMA 23 2-Phase 283 oz-in High Torque Stepper Motor with 0.25'' Single Shaft $27.00 / $26.00 Order Quantity:
HS2320B HS2320B: AMT HS2320B NEMA 23 2-Phase 283 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $28.00 / $27.00 Order Quantity:
HS2328A HS2328A: AMT HS2328A NEMA 23 2-Phase 400 oz-in High Torque Stepper Motor with 0.25'' Single Shaft $39.00 / $38.50 Order Quantity:
HS2328B HS2328B: AMT HS2328B NEMA 23 2-Phase 400 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $41.00 / $40.50 Order Quantity:
HS3468 HS3468: AMT HS3468 NEMA 34 2-Phase 971 oz-in High Torque Stepper Motor with 0.5'' Single Shaft $99.00 / $96.00 Order Quantity:
HS3485 HS3485: AMT HS3485 NEMA 34 2-Phase 1,203 oz-in High Torque Stepper Motor with 0.5'' Single Shaft $109.00 / $106.00 Order Quantity:
HS34100 HS34100: AMT HS34100 NEMA 34 2-Phase 1,416 oz-in High Torque Stepper Motor with 0.5'' Single Shaft $129.00 / $119.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for DM805-AI. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.

To see all power supplies that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
RPS2410 RPS2410: Leadshine RPS2410 24 VDC / 10A Regulated Switching Power Supply 85-132 or 176-265 VAC Input $59.00 / $56.00 Order Quantity:
RPS369 RPS369: Leadshine RPS369 36 VDC / 9.7A Regulated Switching Power Supply with 85-132 / 176-265 VAC Input $69.00 / $65.00 Order Quantity:
RPS488 RPS488: Leadshine RPS488 48 VDC / 7.3A Regulated Switching Power Supply 85-132 / 176-265 VAC Input $72.00 / $68.00 Order Quantity:
RPS4810 RPS4810: Leadshine RPS4810 48VDC /10.4A Regulated Switching Power Supply with 85-132 / 176-265 VAC $99.00 / $93.00 Order Quantity:
RPS608 RPS608: Leadshine RPS608 60VDC /8.5A Regulated Switching Power Supply with 85-132 / 176-265 VAC $103.00 / $97.00 Order Quantity:
SPS407 SPS407: Leadshine SPS407 Ultra Compact 42VDC / 7A Unregulated Switching Power Supply 180-250 VAC Input $87.00 / $82.00 Order Quantity:
SPS407-L SPS407-L: Leadshine SPS407-L Ultra Compact 42VDC / 4.7A Unregulated Switching Power Supply 90-130 VAC Input $87.00 / $83.00 Order Quantity:
SPS487 SPS487: Leadshine SPS487 Ultra Compact 48VDC / 7A Unregulated Switching Power Supply 180-250 VAC Input $89.00 / $84.00 Order Quantity:
SPS487-L SPS487-L: Leadshine SPS487-L Ultra Compact 48VDC / 4.0A Unregulated Switching Power Supply 90-130 VAC Input $89.00 / $84.00 Order Quantity:
PS804-5 PS804-5: Leadshine PS804-5 Linear Power Supply;68 VDC/4A continuous; 5 VDC / 1A Auxiliary; 180-250 VAC Input $95.00 / $90.00 Order Quantity:
PS806-12 PS806-12: Leadshine PS806-12 Linear Power Supply;68 VDC/6A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input $138.00 / $131.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
