Leadshine DM856 2-Phase 32-Bit DSP Digital Stepper Drive with Max 80 VDC Input Voltage and Max 5.6A Output Current

DM856 : Leadshine DM856 2-Phase 32-Bit DSP Digital Stepper Drive with Max 80 VDC Input Voltage and Max 5.6A Output Current
by Leadshine Technology, Inc. (write an review)
DM856
Features
  • Step & direction or CW/CCW control
  • DSP-based stepper control technology
  • Anti resonance
  • Automatic motor identification and self configuration
  • Extra low noise
  • Extra smooth movement
  • Low drive & motor heating
  • Maximum frequency: 200KHz
  • Input voltage: 20 - 80 VDC
  • Output current: 7 selections of 2.10 - 5.60A via DIP switches; or any value of 0.5 - 5.60A via software configuration
  • Micro steps: 16 selections of full - 128 step via DIP switches; or full - 512 step via software configuration
  • Automatic idle current reduction
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $135.00
  Online Prices: $119.00 Qty  1 - 4
  $119.00 Qty  5 - 9
  You save 11.85 %
  Contact us for qty 10 & up
  Stock: In stock
Qty:

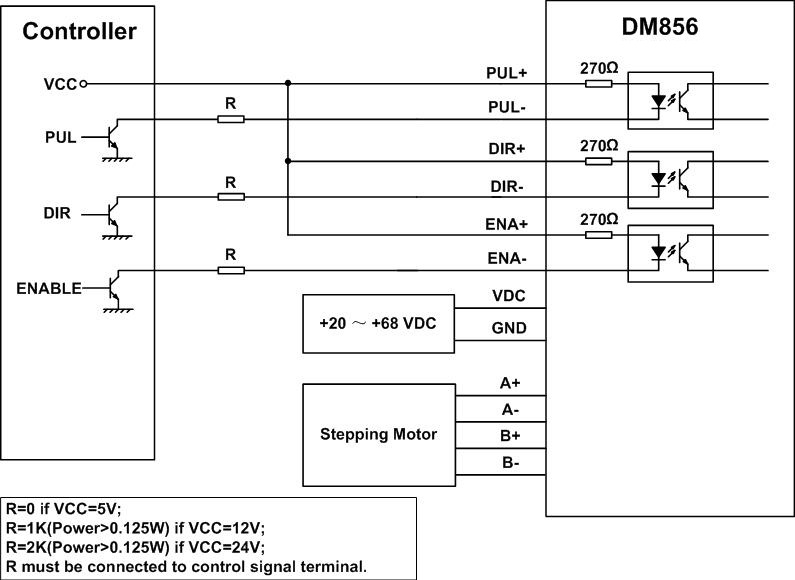

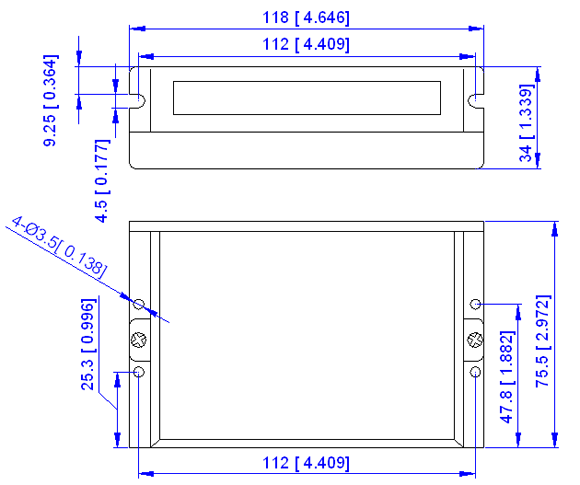

OverviewSpecificationMechanicalConnectionDownload
Overview
By implementing the latest DSP current control technology, Leadshine DM856 is a high performance 2-phase digital stepper drive. It takes step & direction or CW/CCW control commands, and is very simple to implement in OEM applications.

The DM856 stepper drive adopts advanced features like electrical damping, anti-resonance, start-up smoothing, multi-stepping... With the input voltage of 20 - 80 VDC and output current of 2.10 - 5.60 A, it is capable of driving a wide range of 2-phase stepper motors with high precision at extra smoothness, quietness, and very low motor heating.

Its multi-Stepping feature allows a low resolution step input to produce a much higher microstep output for smoother & quiet motor movement, and much lower motor heating. This feature will significantly improve the performance of your stepper control systems.

A DM856 stepper drive is easy to setup and configure via DIP switches. There are 16 resolution settings from 200 - 25600, and 7 output current settings from 2.10 - 5.60. Also, a user can simply set the idle current to full (100%) or 50% of the output current via a DIP switch.

Its motor auto identification and drive self-configuration feature allows quick and easy setup for various motors at optimal performance.

For advanced users, Leadshine offers tuning software for performance fine-tuning. A user can tune a stepper motor's three resonance areas (usually around 0.5 rps, 1 rps, and 2 rps) to reduce noise and vibration, set microstep resolution to any value from 200 to 104,000 (increase by 200), and configure output current to any value of 2.10 - 5.60A (increased by 0.1A); and idle current of 1-100% of output current.
Accessories

Listed below are accessories for Leadshine DM856 2-Phase 32-Bit DSP Digital Stepper Drive with Max 80 VDC Input Voltage and Max 5.6A Output Current.

  Model / Description 1 Pc. / 5 Pc. Price Purchase
1.4.4-0609505-B3 1.4.4-0609505-B3: RS232 Cable for Tuning Leadshine Stepper/Servo Drive $10.00 / $9.00 Order Quantity:
USBToRS232 USBToRS232: USB to RS232 Converter Cable with DB9 Connector $25.00 / $22.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Stepper Motorshybrid stepping motor

AMT offers matching stepper motors for DM856 to satisfy your application needs. Made of high quality materials, those stepper motors can run very qietly and smoothly with low noise, low motor heating. They have been widely implemented in various industrial applications.

To see all stepper motors that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
57HS13 57HS13: Leadshine 57HS13 2-Phase NEMA 23 Stepper Motor with 255 OZ-IN (1.8 N.m) Torque $55.00 / $49.00 Order Quantity:
HS2320A HS2320A: AMT HS2320A NEMA 23 2-Phase 283 oz-in High Torque Stepper Motor with 0.25'' Single Shaft $27.00 / $26.00 Order Quantity:
HS2320B HS2320B: AMT HS2320B NEMA 23 2-Phase 283 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $28.00 / $27.00 Order Quantity:
HS2328A HS2328A: AMT HS2328A NEMA 23 2-Phase 400 oz-in High Torque Stepper Motor with 0.25'' Single Shaft $39.00 / $38.50 Order Quantity:
HS2328B HS2328B: AMT HS2328B NEMA 23 2-Phase 400 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $41.00 / $40.50 Order Quantity:
HS23B30A HS23B30A: AMT HS23B30A NEMA 23 2-Phase 382 Oz-In 2-Phase NEMA 23 Stepper Motor with 0.375 Inch Single Shaft $46.00 / $44.00 Order Quantity:
HS23B35A HS23B35A: AMT HS23B35A NEMA 23 2-Phase 495 Oz-In 2-Phase NEMA 23 Stepper Motor with 0.375 Inch Single Shaft $55.00 / $52.00 Order Quantity:
HS3442 HS3442: AMT HS3442 NEMA 34 2-Phase 595 oz-in High Torque Stepper Motor with 0.5'' Single Shaft $89.00 / $83.00 Order Quantity:
HS3468 HS3468: AMT HS3468 NEMA 34 2-Phase 971 oz-in High Torque Stepper Motor with 0.5'' Single Shaft $99.00 / $96.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for DM856. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.

To see all power supplies that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
RPS369 RPS369: Leadshine RPS369 36 VDC / 9.7A Regulated Switching Power Supply with 85-132 / 176-265 VAC Input $69.00 / $65.00 Order Quantity:
RPS488 RPS488: Leadshine RPS488 48 VDC / 7.3A Regulated Switching Power Supply 85-132 / 176-265 VAC Input $72.00 / $68.00 Order Quantity:
RPS4810 RPS4810: Leadshine RPS4810 48VDC /10.4A Regulated Switching Power Supply with 85-132 / 176-265 VAC $99.00 / $93.00 Order Quantity:
RPS608 RPS608: Leadshine RPS608 60VDC /8.5A Regulated Switching Power Supply with 85-132 / 176-265 VAC $103.00 / $97.00 Order Quantity:
SPS407 SPS407: Leadshine SPS407 Ultra Compact 42VDC / 7A Unregulated Switching Power Supply 180-250 VAC Input $87.00 / $82.00 Order Quantity:
SPS407-L SPS407-L: Leadshine SPS407-L Ultra Compact 42VDC / 4.7A Unregulated Switching Power Supply 90-130 VAC Input $87.00 / $83.00 Order Quantity:
SPS705 SPS705: Leadshine SPS705 Ultra Compact 68VDC / 5A Unregulated Switching Power Supply 180-250 VAC Input $98.00 / $93.00 Order Quantity:
SPS705-L SPS705-L: Leadshine SPS705-L Ultra Compact 68 VDC / 3.0A Unregulated Switching Power Supply 90-130 VAC Input $98.00 / $93.00 Order Quantity:
PS804-5 PS804-5: Leadshine PS804-5 Linear Power Supply;68 VDC/4A continuous; 5 VDC / 1A Auxiliary; 180-250 VAC Input $95.00 / $90.00 Order Quantity:
PS806-12 PS806-12: Leadshine PS806-12 Linear Power Supply;68 VDC/6A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input $138.00 / $131.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
