By implementing the latest DSP current control technology, Leadshine DM870 is a high performance
2-phase digital stepper drive. It takes step & direction or CW/CCW control commands, and is very simple
to implement in OEM applications. |
The DM870 stepper drive adopts advanced features like electrical damping, anti-resonance, start-up smoothing, multi-stepping...
With the input voltage of 20 - 80 VDC and output current of 2.60 - 7.00 A, it is capable of driving a wide range of 2-phase stepper motors
with high precision at extra smoothness, quietness, and very low motor heating.
Its multi-Stepping feature allows a low resolution step input to produce a much higher microstep output
for smoother & quiet motor movement, and much lower motor heating. This feature will significantly improve the performance of your stepper
A DM870 stepper drive is easy to setup and configure via DIP switches. There are 16 resolution settings from 200 - 25600,
and 7 output current settings from 2.60 - 7.00. Also, a user can simply set the idle current to full (100%) or 50% of
the output current via a DIP switch.
Its motor auto identification and drive self-configuration feature allows quick and easy setup for various motors at optimal performance.
For advanced users, Leadshine offers tuning software for performance fine-tuning. A user can tune a stepper motor's
three resonance areas (usually around 0.5 rps, 1 rps, and 2 rps) to reduce noise and vibration, set microstep resolution to any value
from 200 to 104,000 (increase by 200), and configure output current to any value of 2.60 - 7.00A (increased by 0.1A);
and idle current of 1-100% of output current.

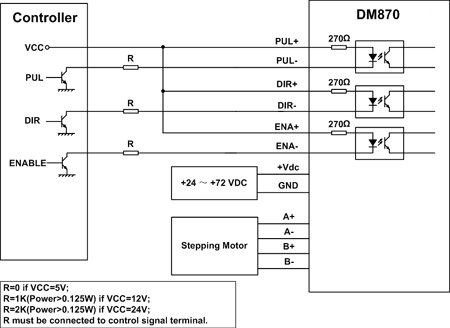

|Control Mode:||Step & Direction|
|Max Input Frequency:||200KHz|
|Input Voltage Range:||20 - 80 VDC|
|Suggested Power Supply Voltage Range:||24-72 VDC|
|Software Cofig. Resolution Range:||200 - 102,400 (increased by 200)|
|# of DIP Switch Resolution Configurations:||16|
|DIP Switch Resolution Setings:||200, 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000|
|Software Cofig Current Range:||0.5 - 7.00 A (increased by 0.1 A)|
|# of DIP Switch Current Configurations:||7|
|DIP Switch Current Configurations:||2.6A, 3.4A, 4.0A, 4.8A, 5.4A, 6.1A, 7.0A|
|Logic Current Range:||7-16mA (10mA typical)|
|Logic Voltage Range:||4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low|
|Pulse enabled at:||Rising edge|
|Idle Current Percentage:||50 %|
|Software Config. Idle Current Percentage:||0-100%|
|# of Digital Inputs:||3|
|Step Width:||2,500 ns|
|Minimal Direction Setup Time:||5,000 ns|
|Protection:||Over current; over voltage; phase error|
|Isolation Resistance:||500M Ohm|
|Environment:||Avoid dust, oil fog and corrosive gases|
|Vibration:||5.9 m/s2 Max|

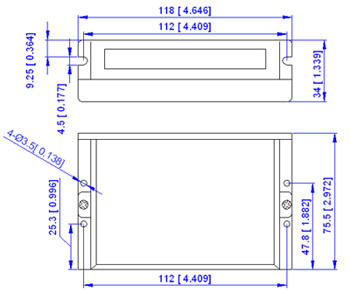

|Specification:||4.65 X 2.97 X 1.30 Inches|
1 inch = 25.4 mm
Hardware installation manual:
Listed below are accessories for Leadshine DM870 2-Phase 32-Bit DSP Digital Stepper Drive with Max 80 VDC Input Voltage and Max 7.0A Output Current.
