Leadshine EL5-D1000 AC Servo Drive. 187-240 VAC input; 5A Rated/22A Peak Current; Powering Up to 1KW Servo Motors
EL5-D1000
: Leadshine EL5-D1000 AC Servo Drive. 187-240 VAC input; 5A Rated/22A Peak Current; Powering Up to 1KW Servo Motors
|
|
|
Features
- Advanced algorithm based latest control algorithm
- Step & direction,CW/CCW, or &plusnm;10VDC control commands
- Position, torque, and velocity control modes
- 220/230 VAC input
- 5A continuous current; 22A peak
- Pulse input frequency up to 500kHz
- Velocity response (bandwidth) up to 600 Hz
- Powering brushless AC servo motors up to 1000W
- High precision and excellent position following accuracy
- Quick response & acceleration
- Vibration suppression for smooth motion
- Auto inertia recognition
- Auto configuration for easy setup
- Built-in LED display for easy configuration and real-time motion status monitoring
|
Buy Online
Usually shipped in 1-2 days from USA
|
|
Regular Price: |
$429.00
|
|
|
Online Prices:
|
$409.00
|
Qty 1 - 4
|
|
|
$395.00
|
Qty 5 - 9
|
|
You save
|
4.66%
|
| |
Contact us for qty 10 & up
|
|
Stock:
|
In stock
|
|
|
|
|
|
|
OverviewSpecificationsMechanicalConnectionDownloadIncluded Free Accessories
Overview

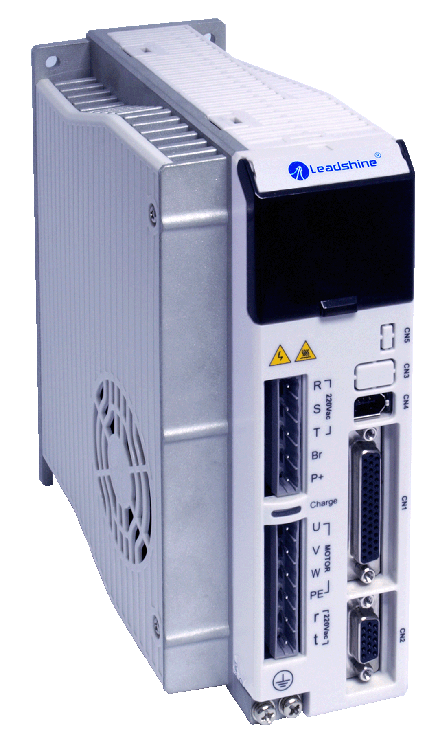

The Leadshine EL5-D1000 is an advanced AC servo drive based on the latest DSP servo control technologies. It can take 220/230 VAC input, output 5A continuous current / 22A peak. It is capable of powering high voltage AC servo motors up to 1000W.
By taking step & direction, CW/CCW, or ±10VDC control commands, the EL5-D1000 is easy to implement in OEM applications. It can operate in position, torque, or velocity modes. The EL5-D1000 brushless servo drive is featured with high precision, quick response & acceleration, excellent positioning following ability, smooth motion, etc.
The adaptive filter adopted in the EL5-D1000 makes the notch filter frequency automatically follow the driven motor resonance frequency, and thus significantly suppress movement vibration and increase motion smoothness.
The on-board LED display of EL5-D1000 allows easy and quick configuration and real-time motion status display. It can also display real-time motion status such as speed, torque, current, inertia...
Specifications
| Model: | EL5-D1000 | | Control Mode: | Step & Direction,CW/CCW,±10VDC | | Max Input Frequency: | 500KHz | | Encoder Output Signals: | A, B, Z | | Input Voltage Range: | 187-240 VAC | | Continuous Current: | 5.0 A | | Peak Current: | 22 A | | Logic Current Range: | 7-16 mA (10mA typical) | | Logic Voltage Range: | 4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low | | Communication Type: | RS232 | | Pulse enabled at: | Rising edge | | Electronic gear ratio: | 1/32767 - 32767 | | # of Digital Inputs: | 5 | | # of ±10V Inputs: | 2 (for velocity and torque control)) | | # of Digital Onputs: | 4 | | Step Width: | 2μs | | Minimal Direction Setup Time: | 4μs | | Protection: | Over-current; over-voltage; under-voltage; phase error; encoder or hall error; limit error; position following error | | Isolation Resistance: | 500M Ohm | | Environment: | Avoid dust, oil fog and corrosive gases | | Ambient Temporature: | 0-50°C | | Humidity: | 40–95% RH | | Operating Temporature: | 0-70°C | | Vibration: | 5.9 m/s2 Max | | Storage Temporature: | -20-65°C | | Specification: | 7.09 X 6.5 X 2.95 Inches | | Weight: | 3.52 lbs |
Mechanical Specification
Unit: mm
1 inch = 25.4 mm
Free Accessories
Besides discounts for the included products, the following accessory items
are also included free for saving you additional costs. Based on your application/machine requirements,
you may also need to add, or update to accessories which are listed below.- 1.4.0-4422200-17: 44-pin Control Signal Connector for Leadshine Servo/Stepper Drives
|
|
Accessories
Listed below are accessories for Leadshine EL5-D1000 AC Servo Drive. 187-240 VAC input; 5A Rated/22A Peak Current; Powering Up to 1KW Servo Motors.
|
Matching Servo Motors CNC servo motor
AMT offers matching servo motors for EL5-D1000 to satisfy your application needs. Made of high quality materials, those servo motors can run
very qietly and smoothly with low noise, low motor heating. They have been widely implemented in various industrial applications.
To see all servo motors that AMT offers, please click here.
|
Frequently Bought Motor & Drive Set Including EL5-D1000
The following motor & drive set is frequently bought by our customers in the past to simply their purchasing process and save time.
All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts
are also offered for them.
|
EL5-P1000: Leadshine 1000W AC Servo Motor & Drive Set. 80mm Frame; 4000 RPM Peak Speed; 9.6Nm (84.96 Lb-In) Peak Torque; 220/230 VAC Input
|
