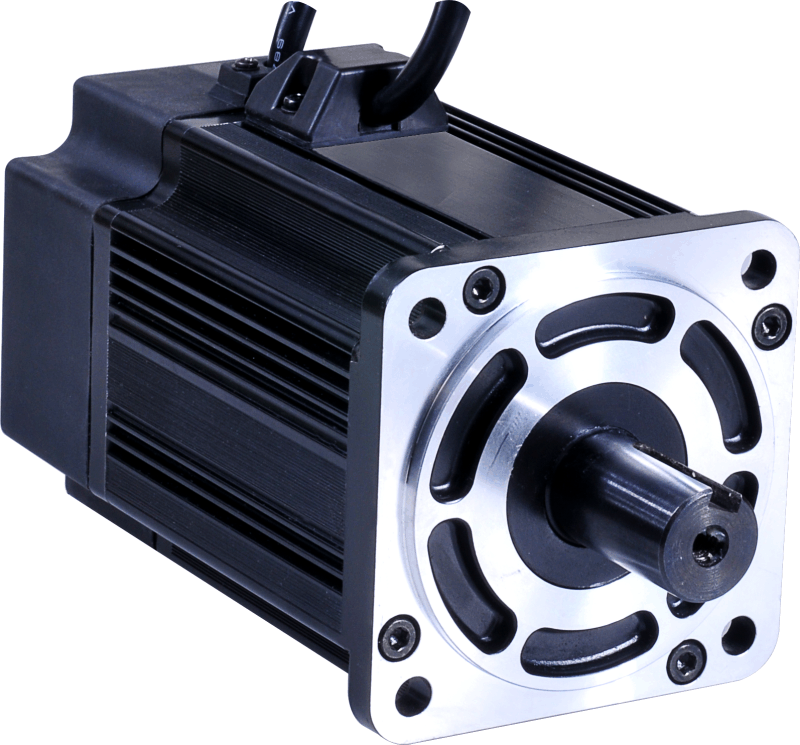

Leadshine EL5-M1000 1000W AC Servo Motor. 4000 RPM Peak Speed, 9.6 Nm (84.96 Lb-In) Peak Torque, 2500-Line Encoder

EL5-M1000 : Leadshine EL5-M1000 1000W AC Servo Motor. 4000 RPM Peak Speed, 9.6 Nm (84.96 Lb-In) Peak Torque, 2500-Line Encoder by Leadshine Technology, Inc.       Datasheet (write an review)
	Features 80mm frame 1000W rated power 220 VAC rated voltage 5.9A rated / 11.7A peak current 2500 line incremental encoder with A, B, indexing signals 3.2 Nm (28.32 lb-in) rated torque / 9.6 Nm (84.96 lb-in) peak 3000 RPM rated speed / 4000 peak 2,500-line incremental encoder (A, B, I channels) Excellent torque overload capacity Excellent response & acceleration Extra movement smooth High precision	Buy Online Usually shipped in 1-2 days from USA Regular Price: $439.00     Online Prices: $429.00 Qty  1 - 4   $407.00 Qty  5 - 9   You save 2.28%   Contact us for qty 10 & up   Stock: In stock The selected item has been added to your shop cart successfully. To choose Choose one of the following options to continue.    Qty:

Listed below are accessories for Leadshine EL5-M1000 1000W AC Servo Motor. 4000 RPM Peak Speed, 9.6 Nm (84.96 Lb-In) Peak Torque, 2500-Line Encoder.

Model / Description 1 Pc. / 5 Pc. Price Purchase CABLE-RZ1M5-S: CABLE-RZ1M5-S 4.9-Foot (1.5-Meter) Power Cable for Leadshine 220/230 VAC AC Servo Motors $13.00 / $12.00 Order Quantity:     CABLE-BM1M5-S: CABLE-BM1M5-S 4.9-Foot (1.5-Meter) Encoder Cable for Leadshine 220/230 VAC AC Servo Motors $16.00 / $15.00 Order Quantity:     CABLE-RZ3M0-S: CABLE-RZ3M0-S 9.8-Foot (3-Meter) Power Cable for Leadshine 220/230 VAC AC Servo Motors $20.00 / $19.00 Order Quantity:     CABLE-BM3M0-S: CABLE-BM3M0-S 9.8-Foot (3-Meter) Encoder Cable for Leadshine 220/230 VAC AC Servo Motors $25.00 / $24.00 Order Quantity:     CABLE-RZ5M0-S: CABLE-RZ3M0-S 16.4-Foot (5-Meter) Power Cable for Leadshine 220/230 VAC AC Servo Motors $28.00 / $26.00 Order Quantity:     CABLE-BM5M0-S: CABLE-BM5M0-S 16.4-Foot (5-Meter) Encoder Cable for Leadshine 220/230 VAC AC Servo Motors $35.00 / $33.00 Order Quantity:     CABLE-RZ10M0-S: CABLE-RZ10M0-S 32.8-Foot (10-Meter) Power Cable for Leadshine 220/230 VAC AC Servo Motors $45.00 / $42.00 Order Quantity:     CABLE-BM10M0-S: CABLE-BM10M0-S 32.8-Foot (10-Meter) Encoder Cable for Leadshine 220/230 VAC AC Servo Motors $60.00 / $57.00 Order Quantity:

Matching Servo Drive(s)servo motor drive

AMT offers matching servo drives for EL5-M1000 to satisfy your application needs. Those servo drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all servo drives that AMT offers, please click here.

Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase EL5-D1000: Leadshine EL5-D1000 AC Servo Drive. 220/230 VAC input; 22A Peak Current; Continuous Power to 1KW $409.00 / $395.00 Order Quantity:     EL5-D1500: Leadshine EL5-D1500 AC Servo Drive. 220/230 VAC input; 25A Peak Current; Continuous Power to 1.5KW $519.00 / $489.00 Order Quantity:

The following motor & drive set is frequently bought by our customers in the past to simply their purchasing process and save time. All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts are also offered for them.

EL5-P1000: Leadshine 1000W AC Servo Motor & Drive Set. 80mm Frame; 4000 RPM Peak Speed; 9.6Nm (84.96 Lb-In) Peak Torque; 220/230 VAC Input

1 Pc. / 5 Pc. Price: $799.00 / $769.00
