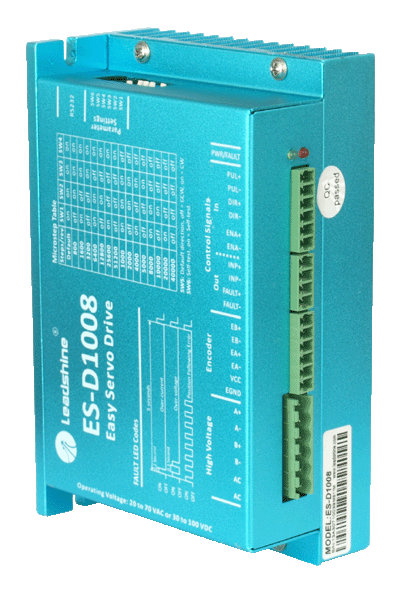

Leadshine ES-D1008 Easy Servo Drive (Closed loop Stepper Drive) with Maximum 20-70 VAC or 30-100 VDC Input Voltage, and 8.0A Peak Current
ES-D1008
: Leadshine ES-D1008 Easy Servo Drive (Closed loop Stepper Drive) with Maximum 20-70 VAC or 30-100 VDC Input Voltage, and 8.0A Peak Current
|
|
|
Features
- Stepper based servo control for stepper motors with encoders
- Step & direct, or CW/CCW control
- Closed position loop for no loss of steps
- 24 - 75 VAC / 30 - 100 VDC input voltage
- Load based output current of 0.50 - 8.00 A
- default 200KHz input frequency; 500Khz optional
- Quick response and acceleration
- No torque reservation
- Extra low drive motor heating & noise
- No hunting, no overshooting, almost zero settling time
- No tuning & "plug-and-play" for almost all applications
|
Buy Online
Usually shipped in 1-2 days from USA
|
|
Regular Price: |
$229.00
|
|
|
Online Prices:
|
$189.00
|
Qty 1 - 4
|
|
|
$177.00
|
Qty 5 - 9
|
|
|
$168.00
|
Qty 10 - 24
|
|
|
$161.00
|
Qty 25 - 49
|
|
You save
|
17.47%
|
| |
Contact us for qty 50 & up
|
|
Stock:
|
In stock
|
|
|
|
|
|
|
OverviewSpecificationMechanicalConnectionDownload
Overview

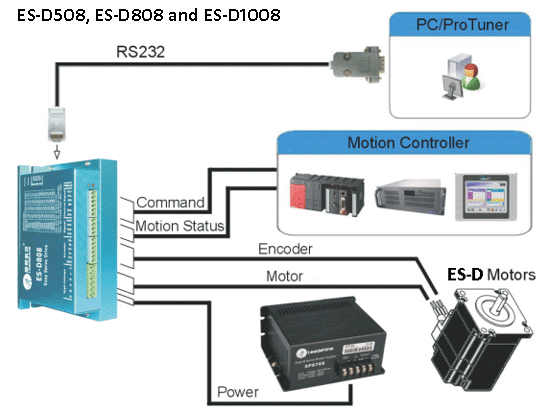

By applying servo control on easy servo motors (stepper motors with encoders), Leadshine ES-D1008 easy servo drive combines features of both open loop stepper drives and brushless AC servo drives. It takes step and direction control commands, 20-70VAC/30-100 VDC input voltage, and outputs load-based current up to 8.0A. It is capable of powering 2-phase easy servo motors of NEMA 23/24/34, closing the position loop, and eliminating position tracking errors in real time.
Similar to brushless AC servo drives, an ES-D1008 servo drive can take encoder feedback from driven DC input easy servo motors and close the position loop to eliminate possibility of lose of movement synchronization. Therefore, loss of steps commonly seen in open-loop stepper systems will never occur in ES-D1008 driven easy servo systems. Compared with constant output current in open loop stepper drive, output current from a ES-D1008 servo drive to the driven motor is load based. When torque requirement is low, the output current is automatically lowered to "just enough". But when the torque requirement is high, ES-D1008 can boost the output current up to 8.0A. This can significantly lower down motor heating by up to 50% over open-loop stepper systems. There is no torque reservation needed for an ES-D1008 driven easy servo system. You can always implement 100% of the driven stepper motor and thus improve system high speed performance by as much as 30% over open lop stepper systems. Smoothness, quietness (50% improvement), and acceleration (30% improvement) are also significantly improved in ES-D1008 easy servo systems.
Compared with traditional brushless servo systems, cost of ES-D1008 easy servo systems is much lower. They outperforms traditional brushless servo systems with the feature of much higher low-middle speed torque, high stiffness, quicker response time, no position hunting, no tuning / easy setup, no overshooting, and zero settling time.
ES-D1008 easy servo systems have been widely adopted by many OEM clients to upgrade their open-loop stepper systems like CNC routers, laser cutting/marking/engraving machines, milling machines, plasmas, packaging equipment, wide-format inject printers... Many Leadshine clients have also chosen ES-D1008 easy servo systems to replace their brushless servo systems to take easy servo's unique features.
Specification
| Model: | ES-D1008 | | Phase: | 2 | | Control Mode: | Step & Direction | | Max Input Frequency: | 200KHz | | Encoder Feedback: | Yes. Fully close the loop between the drive and drive motor | | Input Voltage Range: | 20 - 70 VAC /
30 - 100 VDC | | Peak Current: | 8.00 A | | Software Cofig Resolution Range: | 200 - 102,400 (increased by 200) | | # of DIP Switch Resolution Configurations: | 15 | | DIP Switch Resolution Setings: | 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000 | | Default Holding Current Percentage: | 40 % | | Communication Type: | RS232 | | Pulse enabled at: | Rising edge | | Isolation Resistance: | 500M Ohm | | Environment: | Avoid dust, oil fog and corrosive gases | | Ambient Temporature: | 0-50°C | | Humidity: | 40–95% RH | | Operating Temporature: | 0-70°C | | Vibration: | 5.9 m/s2 Max | | Storage Temporature: | -20-65°C | | Specification: | 5.94 X 3.65 X 2.05 Inches | | Weight: | 1.26 lbs |

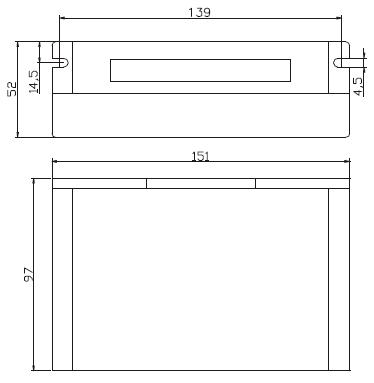

Mechanical Specification
Unit: mm
1 inch = 25.4 mm
Download(s) for
| Datasheet: |
ES-D1008d.pdf |
|
Hardware installation manual:
|
ES-Dhm_V1.1.pdf
|
|
Tuning software manual:
|
ES-Dsm_V1.0.pdf
|
| Tuning software: |
ProTuner_ES-Setup_V1.3.zip |
|
|
Accessories
Listed below are accessories for Leadshine ES-D1008 Easy Servo Drive (Closed loop Stepper Drive) with Maximum 20-70 VAC or 30-100 VDC Input Voltage, and 8.0A Peak Current.
|
Matching Easy Servo Motorsstepper motor with encoder / easy servo motor
AMT offers the following companion easy servo motors for ES-D1008,to provide you fully closed loop controls. To see all Leadshine easy servo motors that AMT offer, please
click here

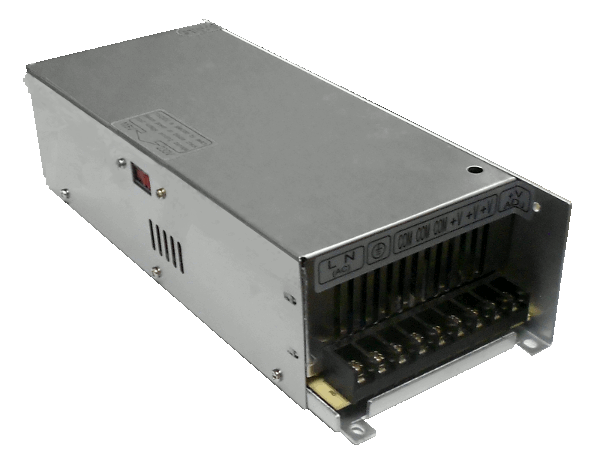

Matching Power Suppliesstepper servo power supply
AMT offers matching power supplies for ES-D1008. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.
To see all power supplies that AMT offers, please click here.
|
|
