Leadshine NEMA 34 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 1,133 Oz-In (8.0Nm) Torque; 1,000-Line Encoder; 0.551'' (14mm) Shaft; 110/120VAC Voltage

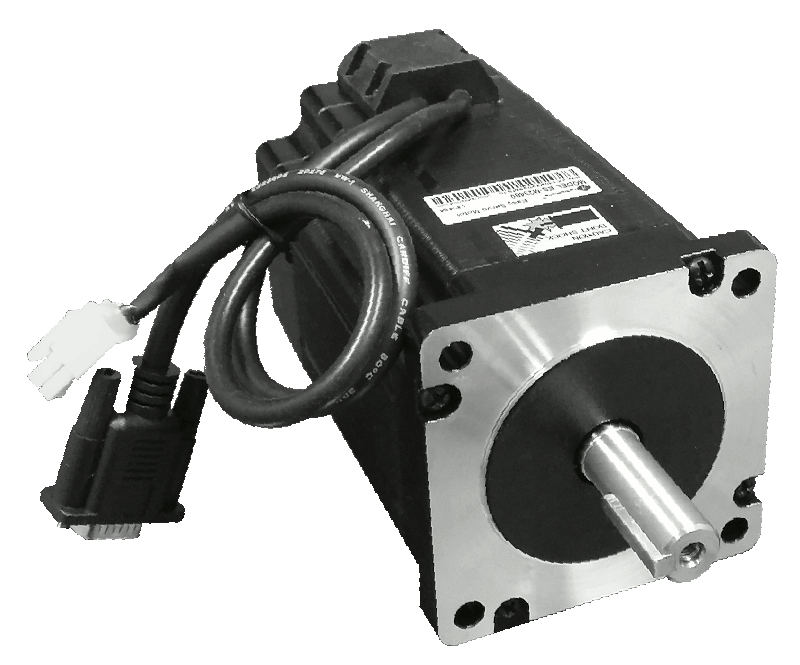

ES-MH23480 : Leadshine NEMA 34 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 1,133 Oz-In (8.0Nm) Torque; 1,000-Line Encoder; 0.551'' (14mm) Shaft; 110/120VAC Voltage
by Leadshine Technology, Inc. (write an review)
ES-MH23480
Features
  • Designed for driving by 110/120 easy servo drives or stepper drives
  • 2-Phase NEMA 34 frame size
  • 1,133 oz-in (8.0 Nm) holding torque
  • Speed range: 0-3,000 RPM
  • Integrated 1,000-line incremental encoder with A, B channels
  • Strong 0.551 inch (14 mm) shaft
  • High precision
  • Quiet movement and low motor heating & noise
  • Buy Online
    Usually shipped in 1-2 days from USA
    Regular Price: $259.00
      Online Prices: $229.00 Qty  1 - 4
      $218.00 Qty  5 - 9
      You save 11.58 %
      Contact us for qty 10 & up
      Stock: In stock
    Qty:
    * Motor & power extension cables required

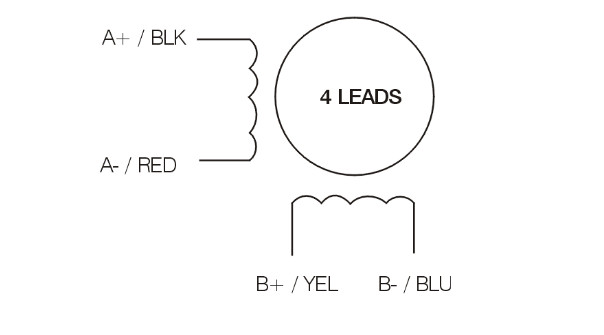

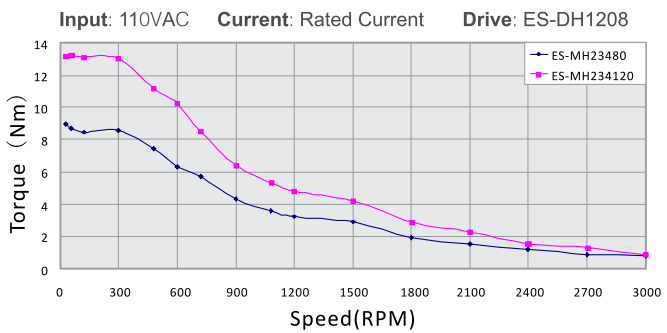

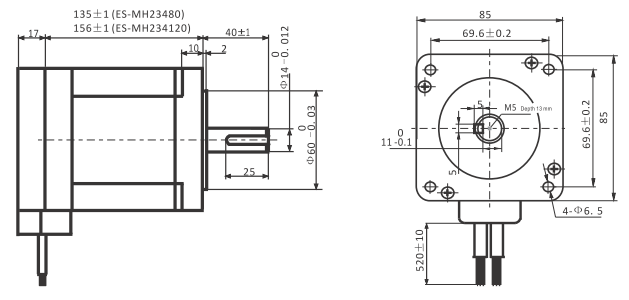

    OverviewSpecificationsMechanicalWiring DiagramSpeed TorqueDownload
    Overview
    The Leadshine ES-MH23480 easy servo motor is a 1,133 oz-in (8.0 N.m) 2-phase NEMA 34 stepper motor with 1,000-line incremental encoder (A ,  B channels). It is specially designed to be for powered by 110/120 VAC input high voltage easy servo drives .

    When driven by Leadshine high voltage asy servo drives (closed loop stepper drives), the position loop between ES-MH23480 and the drive is closed. You will never loss of steps, often seen in open loop stepper systems. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%.

    With the advanced features of no loss of steps, high torque, no power supply, no overshooting, and plug-and-play setup, the combination of of ES-MH23480 and companion easy servo drive is ideal solution for upgrading open loop stepper systems, or replace expensive / hard to configure traditional brushless servo systems. It has been widely used in many industrial applications such as CNC router, CNC mills, plasma, textile equipment...
    Accessories

    Listed below are accessories for Leadshine NEMA 34 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 1,133 Oz-In (8.0Nm) Torque; 1,000-Line Encoder; 0.551'' (14mm) Shaft; 110/120VAC Voltage.

      Model / Description 1 Pc. / 5 Pc. Price Purchase
    CABLEH-RZ1M5 CABLEH-RZ1M5: 4.9-Foot (1.5-Meter) Easy Servo Motor Power Cable $9.00 / $8.00 Order Quantity:
    CABLEH-RZ3M0 CABLEH-RZ3M0: 9.8-Foot (3-Meter) Easy Servo Motor Power Cable $16.00 / $15.00 Order Quantity:
    CABLEH-RZ5M0 CABLEH-RZ5M0: 16.4-Foot (5-Meter) Easy Servo Motor Power Cable $23.00 / $22.00 Order Quantity:
    CABLEH-RZ10M0 CABLEH-RZ10M0: 32.8-Foot (10-Meter) Easy Servo Motor Power Cable $39.00 / $37.00 Order Quantity:
    CABLEG-BM1M5 CABLEG-BM1M5: 4.9-foot (1.5-Meter) Encoder Cable for Leadshine Easy Servo Motors $10.00 / $9.00 Order Quantity:
    CABLEG-BM3M0 CABLEG-BM3M0: 9.8-foot (3-Meter) Encoder Cable for Leadshine Easy Servo Motors $16.00 / $15.00 Order Quantity:
    CABLEG-BM5M0 CABLEG-BM5M0: 16.4-foot (5-Meter) Encoder Cable for Leadshine Easy Servo Motors $25.00 / $24.00 Order Quantity:
    CABLEG-BM10M0 CABLEG-BM10M0: 32.8-foot (10-Meter) Encoder Cable for Leadshine Easy Servo Motors $45.00 / $42.00 Order Quantity:
    Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

    Matching Easy Servo Drive(s)closed loop stepper drive

    AMT offers the following companion easy servo drive(s) for ES-MH23480, to provide you fully loop closed loop controls. To see all Leadshine easy drives that AMT offers, please click here.

      Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
    ES-DH1208 ES-DH1208: Leadshine ES-DH1208 Easy Servo Drive (Closed-Loop Stepper Drive) with Direct 120 VAC /8.0A $249.00 / $239.00 Order Quantity:
    Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
    Frequently Bought Motor & Drive Set Including ES-MH23480

    The following motor & drive set is frequently bought by our customers in the past to simply their purchasing process and save time. All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts are also offered for them.

    ES-PH23480 ES-PH23480: NEMA 34 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 1,133 Oz-In (8 N.m) Holding Torque; Step & Direction Control; 110/120 VAC Input; 1000-Line Encoder
    1 Pc. / 5 Pc. Price:
    $419.00 / $399.00
