HS1705 : AMT HS1705 NEMA 17 2-Phase 74 oz-in (0.52 N.m) High Torque Stepper Motor with 0.197'' Single Shaft

by American Motion Technology, LLC

Datasheet

Features

2-phase 1.8° step angle
NEMA 17 frame size
74.0 oz-in (0.52 Nm) holding torque
Single shaft of 0.197 inch
industrial quality
High accuracy
Smooth movement
Low motor heating

Buy Online
Usually shipped in 1-2 days from USA

Regular Price:

~~$22.00~~

Online Prices:

$16.00

Qty 1 - 4

$15.00

Qty 5 - 9

$14.00

Qty 10 - 24

$13.00

Qty 25 - 49

Stock:

In stock

Qty:

OverviewSpecificationsMechanicalWiring DiagramDownload

Overview

The HS1705 is a 2-phase NEMA 17 hybrid stepper motor at competitive cost without sacrificing product quality. With the holding torque of 74.00 oz-in (0.52 Nm), It is built with quality materials and can move very quietly with high precision, smooth movement, and low motor heating. It has been implemented in a wide range of industrial applications.

Specifications

Model:	HS1705
Frame Size:	NEMA 17
Phase:	2
Step Angle:	1.8°
Holding Torque:	74 Oz-in (0.52 Nm)
Number of Leads:	4
Shaft Type:	Single
Shaft Size:	0.197 inch (5.000 mm)
Phase Current:	1.7 A
Inductance:	3.2 mH
Resistance:	1.8 Ohm
Rotor Inertia:	0.00096 oz-in-sec²
Length:	1.89 inch (48 mm)
Weight:	0.77 lb (0.35 kg)

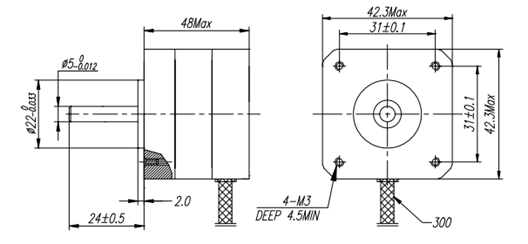

Mechanical Specification

Unit: mm
1 inch = 25.4 mm

Wiring Diagram

Download(s) for

Datasheet:

HS1705.PDF

Matching Stepper Drivesstepper motor controller driver

AMT offers matching stepper drives for HS1705 to satisfy your application needs. Those stepper drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all stepper drives that AMT offers, please click here.

Model / Description	Spec.	1 Pc. / 5 Pc. Price	Purchase
MX3660: Leadshine MX3660 3-Axis Stepper Drive with I/O's; 60 VDC/6.0 A		$289.00 / $275.00	Order Quantity:
MX4660: Leadshine MX4660 4-Axis Stepper Drive with I/O's; 60 VDC/6.0 A		$379.00 / $362.00	Order Quantity:
DM422: Leadshine DM422 2-Phase DSP Digital Stepper Drive Max 40VDC/2.2A		$69.00 / $65.00	Order Quantity:
DM442: Leadshine DM442 2-phase DSP Digital Stepper Drive with Max 40 VDC / 4.2A		$89.00 / $85.00	Order Quantity:
DM503: Leadshine DM503 2-phase DSP Digital Stepper Drive with Max 50 VDC/4.2A		$79.00 / $76.00	Order Quantity:
DM556: Leadshine DM556 2-phase DSP Digital Stepper Drive with Max 50 VDC / 5.6A		$109.00 / $105.00	Order Quantity:
M542: Leadshine M542 2-phase Stepper Drive with Max 50 VDC / 4.2A		$72.00 / $68.00	Order Quantity:
