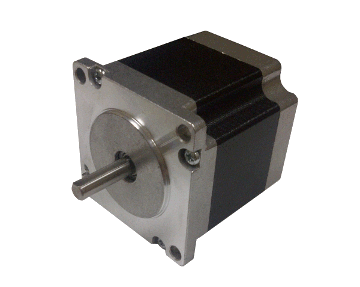

AMT HS2311A NEMA 23 2-Phase 156 oz-in (1.1 N.m) High Torque Stepper Motor with 0.25'' Single Shaft

HS2311A : AMT HS2311A NEMA 23 2-Phase 156 oz-in (1.1 N.m) High Torque Stepper Motor with 0.25'' Single Shaft
by American Motion Technology, LLC (write an review)
HS2311A
Features
  • 2-phase 1.8° step angle
  • NEMA 23 frame size
  • 156.0 oz-in (1.1 Nm) holding torque
  • Single shaft of 0.250 inch
  • industrial quality
  • High accuracy
  • Smooth movement
  • Low motor heating
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $39.00
  Online Prices: $20.00 Qty  1 - 4
  $19.00 Qty  5 - 9
  $18.00 Qty 10 - 24
  $17.00 Qty 25 - 49
  You save 48.72 %
  Contact us for qty 50 & up
  Stock: In stock
Qty:

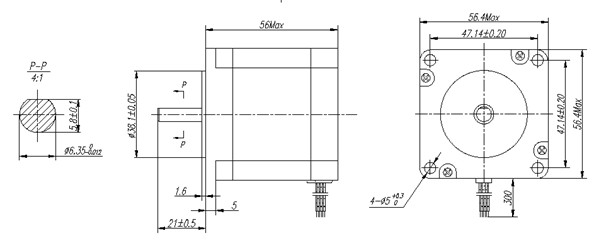

OverviewSpecificationsMechanicalWiring DiagramDownload
Overview
The HS2311A is a 2-phase NEMA 23 hybrid stepper motor at competitive cost without sacrificing product quality. With the holding torque of 156.00 oz-in (1.1 Nm), It is built with quality materials and can move very quietly with high precision, smooth movement, and low motor heating. It has been implemented in a wide range of industrial applications.

Matching Stepper Drivesstepper motor controller driver

AMT offers matching stepper drives for HS2311A to satisfy your application needs. Those stepper drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all stepper drives that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
MX3660 MX3660: Leadshine MX3660 3-Axis Stepper Drive with I/O's; 60 VDC/6.0 A $289.00 / $275.00 Order Quantity:
MX4660 MX4660: Leadshine MX4660 4-Axis Stepper Drive with I/O's; 60 VDC/6.0 A $379.00 / $362.00 Order Quantity:
DM442 DM442: Leadshine DM442 2-phase DSP Digital Stepper Drive with Max 40 VDC / 4.2A $89.00 / $85.00 Order Quantity:
DM503 DM503: Leadshine DM503 2-phase DSP Digital Stepper Drive with Max 50 VDC/4.2A $79.00 / $76.00 Order Quantity:
DM556 DM556: Leadshine DM556 2-phase DSP Digital Stepper Drive with Max 50 VDC / 5.6A $99.00 / $95.00 Order Quantity:
DM856 DM856: Leadshine DM856 2-phase DSP Digital Stepper Drive with Max 80 VDC / 5.6A $119.00 / $113.00 Order Quantity:
M542 M542: Leadshine M542 2-phase Stepper Drive with Max 50 VDC / 4.2A $72.00 / $68.00 Order Quantity:
M542-05 M542-05: Leadshine M542-05 2-Phase Stepper Drive Max 50 VDC /5.04A $75.00 / $71.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
Frequently Bought CNC Kit Including HS2311A

The following cnc kit is frequently bought by our customers in the past to simply their purchasing process and save time. All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts are also offered for them.

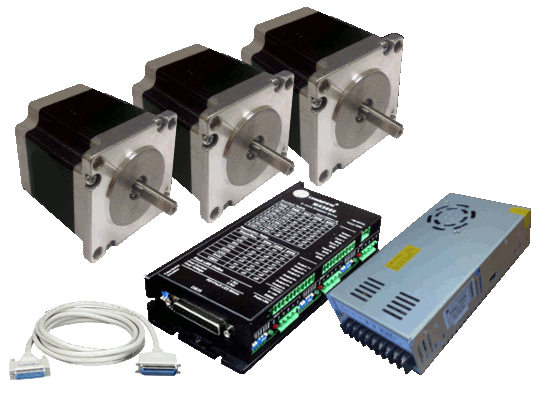

MX-P323-156 MX-P323-156: 3-Axis NEMA 23 CNC Stepper Kit. 156 Oz-In NEMA 23 Motors with 1/4'' (6.35mm) Single Shaft; 3-Axis MX3660 Stepper Drive; 24 VDC/10A Power Supply 85-132 or 176-265 VAC Input
1 Pc. / 5 Pc. Price:
$409.00 / $389.00
Similar Products
