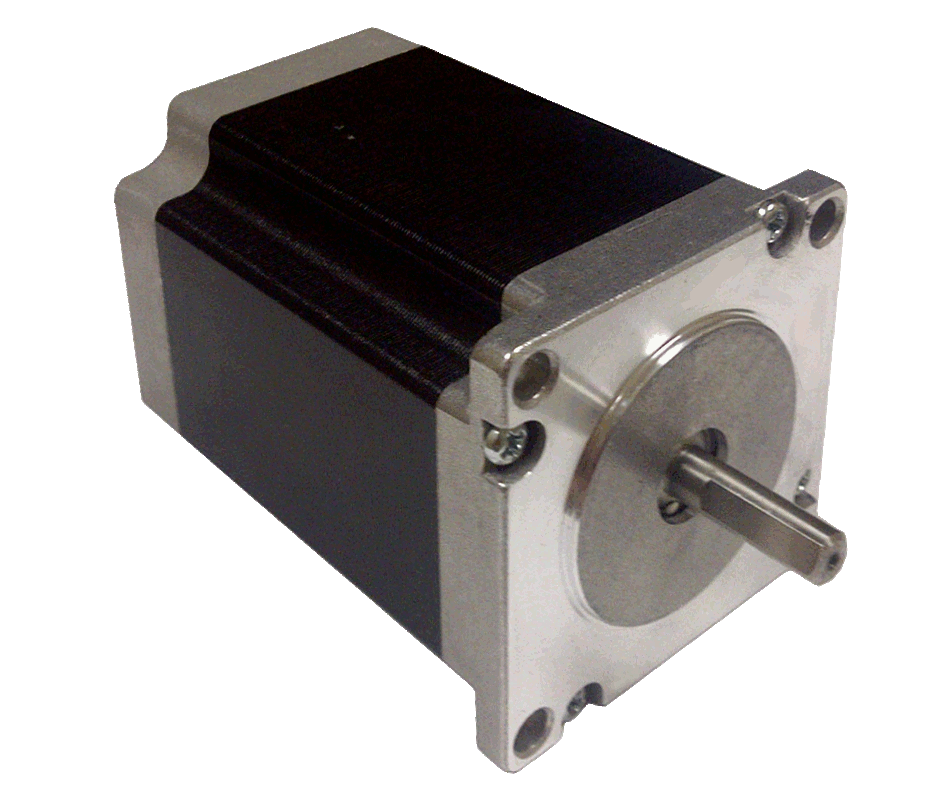

AMT HS2320B NEMA 23 2-Phase 283 oz-in (2.0 N.m) High Torque Stepper Motor with 0.25'' Dual Shaft

HS2320B : AMT HS2320B NEMA 23 2-Phase 283 oz-in (2.0 N.m) High Torque Stepper Motor with 0.25'' Dual Shaft
by American Motion Technology, LLC (write an review)
  • 2-phase 1.8° step angle
  • NEMA 23 frame size
  • 283.0 oz-in (2.0 Nm) holding torque
  • Dual shaft of 0.250 inch
  • industrial quality
  • High accuracy
  • Smooth movement
  • Low motor heating
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $47.00
  Online Prices: $28.00 Qty  1 - 4
  $27.00 Qty  5 - 9
  $26.00 Qty 10 - 24
  $25.00 Qty 25 - 49
  You save 40.43 %
  Contact us for qty 50 & up
  Stock: In stock

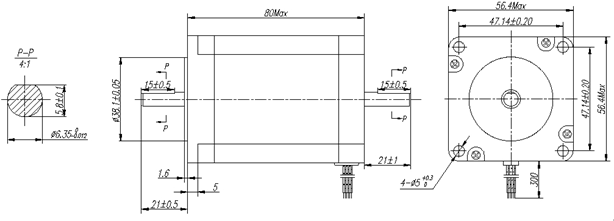

OverviewSpecificationsMechanicalWiring DiagramDownload
The HS2320B is a 2-phase NEMA 23 hybrid stepper motor at competitive cost without sacrificing product quality. With the holding torque of 283.00 oz-in (2.0 Nm), It is built with quality materials and can move very quietly with high precision, smooth movement, and low motor heating. It has been implemented in a wide range of industrial applications.

Matching Stepper Drivesstepper motor controller driver

AMT offers matching stepper drives for HS2320B to satisfy your application needs. Those stepper drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all stepper drives that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
MX3660 MX3660: Leadshine MX3660 3-Axis Stepper Drive with I/O's; 60 VDC/6.0 A $289.00 / $275.00 Order Quantity:
DM442 DM442: Leadshine DM442 2-phase DSP Digital Stepper Drive with Max 40 VDC / 4.2A $89.00 / $85.00 Order Quantity:
DM503 DM503: Leadshine DM503 2-phase DSP Digital Stepper Drive with Max 50 VDC/4.2A $79.00 / $76.00 Order Quantity:
DM556 DM556: Leadshine DM556 2-phase DSP Digital Stepper Drive with Max 50 VDC / 5.6A $109.00 / $105.00 Order Quantity:
DM856 DM856: Leadshine DM856 2-phase DSP Digital Stepper Drive with Max 80 VDC / 5.6A $119.00 / $119.00 Order Quantity:
M542 M542: Leadshine M542 2-phase Stepper Drive with Max 50 VDC / 4.2A $72.00 / $68.00 Order Quantity:
M542-05 M542-05: Leadshine M542-05 2-Phase Stepper Drive Max 50 VDC /5.04A $75.00 / $71.00 Order Quantity:
M752 M752: Leadshine M752 2-phase Stepper Drive with Max 70 VDC / 5.2A $95.00 / $90.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
