AMT HS3468 NEMA 34 2-Phase 971 oz-in (6.86 N.m) High Torque Stepper Motor with 0.5'' Single Shaft

HS3468 : AMT HS3468 NEMA 34 2-Phase 971 oz-in (6.86 N.m) High Torque Stepper Motor with 0.5'' Single Shaft
by American Motion Technology, LLC (write an review)
HS3468
Features
  • 2-phase 1.8° step angle
  • NEMA 34 frame size
  • 971.0 oz-in (6.86 Nm) holding torque
  • Single shaft of 0.500 inch
  • industrial quality
  • High accuracy
  • Smooth movement
  • Low motor heating
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $119.00
  Online Prices: $99.00 Qty  1 - 4
  $96.00 Qty  5 - 9
  You save 16.81 %
  Contact us for qty 10 & up
  Stock: In stock
Qty:

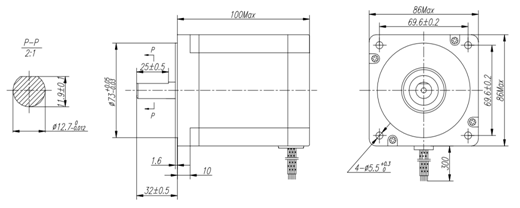

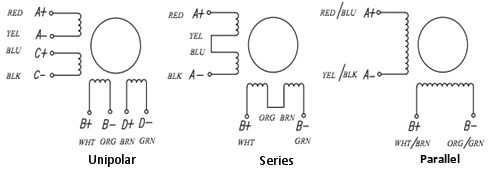

OverviewSpecificationsMechanicalWiring DiagramDownload
Overview
The HS3468 is a 2-phase NEMA 34 hybrid stepper motor at competitive cost without sacrificing product quality. With the holding torque of 971.00 oz-in (6.86 Nm), It is built with quality materials and can move very quietly with high precision, smooth movement, and low motor heating. It has been implemented in a wide range of industrial applications.

Matching Stepper Drivesstepper motor controller driver

AMT offers matching stepper drives for HS3468 to satisfy your application needs. Those stepper drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all stepper drives that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
EM705 EM705: Leadshine EM705 Advanced 2-Phase DSP Stepper Drive Max 70VDC/2.2A with Stall Detection $129.00 / $122.00 Order Quantity:
EM806 EM806: Leadshine EM806 Advanced 2-Phase DSP Stepper Drive Max 80VDC/8.2A with Stall Detection $139.00 / $132.00 Order Quantity:
DM856 DM856: Leadshine DM856 2-phase DSP Digital Stepper Drive with Max 80 VDC / 5.6A $119.00 / $113.00 Order Quantity:
DM860 DM860: Leadshine DM860 2-phase DSP Digital Stepper Drive with Max 80 VDC/7.2A $119.00 / $115.00 Order Quantity:
DM870 DM870: Leadshine DM870 2-phase DSP Digital Stepper Drive with Max 80 VDC / 7.0A $129.00 / $125.00 Order Quantity:
M752 M752: Leadshine M752 2-phase Stepper Drive with Max 70 VDC / 5.2A $95.00 / $90.00 Order Quantity:
M860 M860: Leadshine M860 2-phase Stepper Drive with Max 80 VDC / 7.2A $115.00 / $109.00 Order Quantity:
DM1182 DM1182: Leadshine DM1182 2-phase DSP Stepper Drive of Direct 110/120 VAC Input / Max 8.2 A Output Current $199.00 / $193.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
Frequently Bought Motor & Drive Sets Including HS3468

The following motor & drive sets are frequently bought by our customers in the past to simply their purchasing process and save time. All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts are also offered for them.

STS-H134-971 STS-H134-971: 971 Oz-In (6.86 Nm) Nema 34 Stepper Drive Set, Direct 110/120 VAC Input Drive, No Power Supply Needed
1 Pc. / 5 Pc. Price:
$318.00 / $299.00

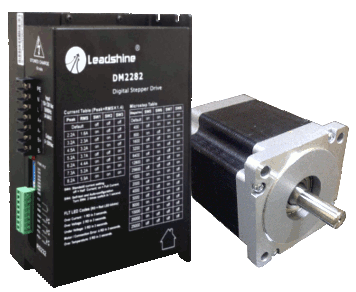

STS-H234-971 STS-H234-971: 971 Oz-In (6.86 Nm) Nema 34 Stepper Drive Set, Direct 220/230 VAC Input Drive, No Power Supply Needed
1 Pc. / 5 Pc. Price:
$338.00 / $319.00
