AMT HS4215 NEMA 34 2-Phase 2,124 oz-in (15 N.m) High Torque Stepper Motor with 0.748'' Single Shaft

HS4215 : AMT HS4215 NEMA 34 2-Phase 2,124 oz-in (15 N.m) High Torque Stepper Motor with 0.748'' Single Shaft
by American Motion Technology, LLC (write an review)
HS4215
Features
  • 2-phase 1.8° step angle
  • NEMA 42 frame size
  • 2,124.0 oz-in (15 Nm) holding torque
  • Single shaft of 0.748 inch
  • industrial quality
  • High accuracy
  • Smooth movement
  • Low motor heating
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $239.00
  Online Prices: $209.00 Qty  1 - 4
  $189.00 Qty  5 - 9
  $181.00 Qty 10 - 24
  $173.00 Qty 25 - 49
  You save 12.55%
  Contact us for qty 50 & up
  Stock: In stock
Qty:

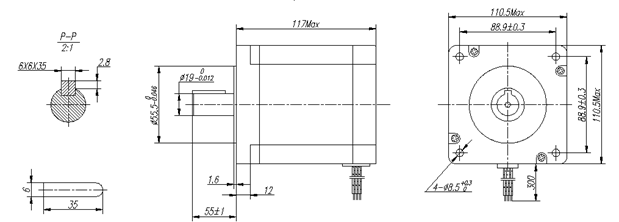

OverviewSpecificationsMechanicalWiring DiagramDownload
Overview

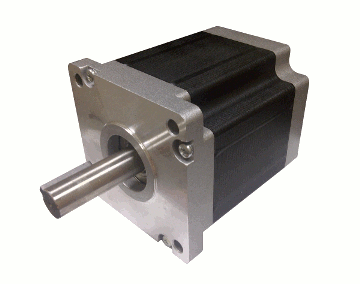

The HS4215 is a 2-phase NEMA 42 hybrid stepper motor at competitive cost without sacrificing product quality. With the holding torque of 2124.00 oz-in (15 Nm), It is built with quality materials and can move very quietly with high precision, smooth movement, and low motor heating. It has been implemented in a wide range of industrial applications.

Matching Stepper Drivesstepper motor controller driver

AMT offers matching stepper drives for HS4215 to satisfy your application needs. Those stepper drives are at industrial quility, and have proven records of high performance in hundreds of industrial applications.

To see all stepper drives that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
DM1182 DM1182: Leadshine DM1182 2-phase DSP Stepper Drive of Direct 110/120 VAC Input / Max 8.2 A Output Current $219.00 / $212.00 Order Quantity:
DM2282 DM2282: Leadshine DM2282 2-phase DSP Stepper Drive of Direct 120/220 VAC Input / Max 8.2 A Output Current $239.00 / $229.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
Frequently Bought Motor & Drive Sets Including HS4215

The following motor & drive sets are frequently bought by our customers in the past to simply their purchasing process and save time. All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts are also offered for them.

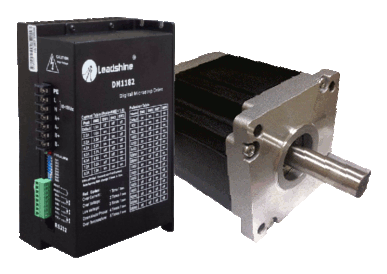

STS-H142-2124 STS-H142-2124: 2124 Oz-In (15 Nm) Nema 42 Stepper Drive Set, Direct 110/120 VAC Input Drive, No Power Supply Needed
1 Pc. / 5 Pc. Price:
$408.00 / $389.00
STS-H242-2124 STS-H242-2124: 2124 Oz-In (15 Nm) Nema 42 Stepper Drive Set, Direct 220/230 VAC Input Drive, No Power Supply Needed
1 Pc. / 5 Pc. Price:
$428.00 / $409.00
