AMT NEMA 34 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 595 Oz-In (4.2Nm) Torque; 1,000-Line Encoder; 0.5'' (12.7mm) Shaft; 110/120VAC Voltage

HSM23442H : AMT NEMA 34 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 595 Oz-In (4.2Nm) Torque; 1,000-Line Encoder; 0.5'' (12.7mm) Shaft; 110/120VAC Voltage
by Leadshine Technology, Inc. (write an review)

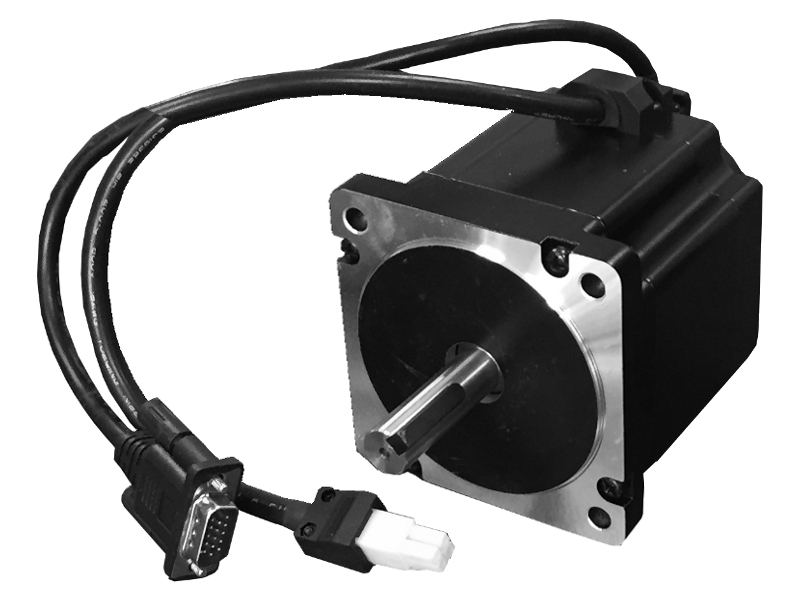

HSM23442H
Features
  • Designed for driving by 110/120 easy servo drives or stepper drives
  • 2-Phase NEMA 34 frame size
  • 566 oz-in (4.0 Nm) holding torque
  • Speed range: 0-3,000 RPM
  • Integrated 1,000-line incremental encoder with A, B channels
  • Strong 0.551 inch (14 mm) shaft
  • High precision
  • Quiet movement and low motor heating & noise
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $209.00
  Online Prices: $189.00 Qty  1 - 4
  $172.00 Qty  5 - 9
  You save 9.57 %
  Contact us for qty 10 & up
  Stock: Out of stock
Qty:

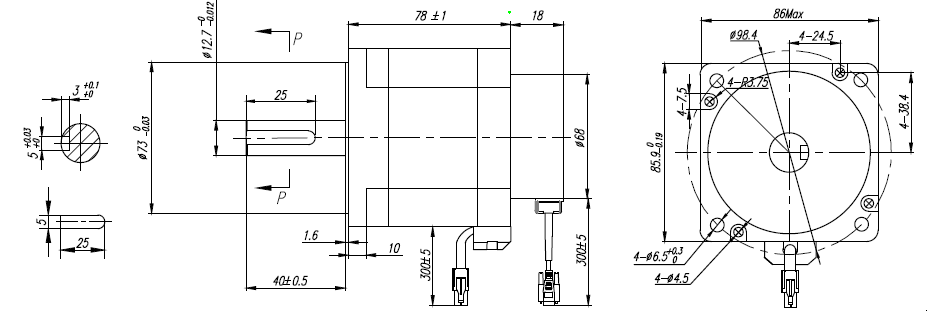

OverviewSpecificationsMechanicalWiring DiagramDownload
Overview
The AMT HSM23442H easy servo motor is a 595 oz-in (4.2 N.m) 2-phase NEMA 34 stepper motor with 1,000-line incremental encoder (A ,  B channels). It is specially designed to be powered by 110/120VAC input high voltage asy servo drives (closed loop stepper drives).

When driven by Leadshine high voltage asy servo drives (closed loop stepper drives), the position loop between HSM23442H and the drive is closed. You will never get stall or loss of steps, often seen in open loop stepper systems. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%.

The Leadshine HSM23442H can also driven by regular open loop 2-phase stepper drives and feed back encoder signals to motion controllers, or external devices.

The HSM23442H easy servo motor is built with high quality material and can move smoothly in high precision with low noise and heating.
Accessories

Listed below are accessories for AMT NEMA 34 Easy Servo Motor (Closed Loop Stepper); 2 Phase; 595 Oz-In (4.2Nm) Torque; 1,000-Line Encoder; 0.5'' (12.7mm) Shaft; 110/120VAC Voltage.

  Model / Description 1 Pc. / 5 Pc. Price Purchase
CABLEH-RZ1M5 CABLEH-RZ1M5: 4.9-Foot (1.5-Meter) Easy Servo Motor Power Cable $9.00 / $8.00 Order Quantity:
CABLEH-RZ3M0 CABLEH-RZ3M0: 9.8-Foot (3-Meter) Easy Servo Motor Power Cable $16.00 / $15.00 Order Quantity:
CABLEH-RZ5M0 CABLEH-RZ5M0: 16.4-Foot (5-Meter) Easy Servo Motor Power Cable $23.00 / $22.00 Order Quantity:
CABLEH-RZ10M0 CABLEH-RZ10M0: 32.8-Foot (10-Meter) Easy Servo Motor Power Cable $39.00 / $37.00 Order Quantity:
CABLEG-BM1M5 CABLEG-BM1M5: 4.9-foot (1.5-Meter) Encoder Cable for Leadshine Easy Servo Motors $10.00 / $9.00 Order Quantity:
CABLEG-BM3M0 CABLEG-BM3M0: 9.8-foot (3-Meter) Encoder Cable for Leadshine Easy Servo Motors $16.00 / $15.00 Order Quantity:
CABLEG-BM5M0 CABLEG-BM5M0: 16.4-foot (5-Meter) Encoder Cable for Leadshine Easy Servo Motors $25.00 / $24.00 Order Quantity:
CABLEG-BM10M0 CABLEG-BM10M0: 32.8-foot (10-Meter) Encoder Cable for Leadshine Easy Servo Motors $45.00 / $42.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Easy Servo Drive(s)closed loop stepper drive

AMT offers the following companion easy servo drive(s) for HSM23442H, to provide you fully loop closed loop controls. To see all Leadshine easy drives that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
ES-DH1208 ES-DH1208: Leadshine ES-DH1208 Easy Servo Drive (Closed-Loop Stepper Drive) with Direct 120 VAC /8.0A $249.00 / $239.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
Frequently Bought Motor & Drive Set Including HSM23442H

The following motor & drive set is frequently bought by our customers in the past to simply their purchasing process and save time. All individual products included in those sets have been fully tested, and implemented by hundreds of OEM industries around the world. Further discounts are also offered for them.

ES-PH23442 ES-PH23442: NEMA 34 Easy Servo Set. One Easy Servo Motor & One easy Servo Drive; 595 Oz-In (4.2 N.m) Holding Torque; Step & Direction Control; 110/120 VAC Input; 1000-Line Encoder
1 Pc. / 5 Pc. Price:
$379.00 / $359.00
