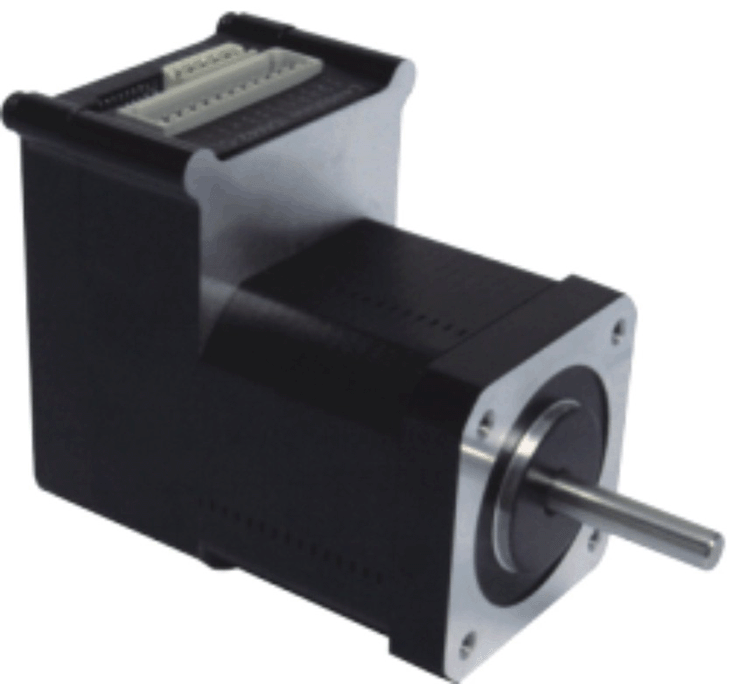

Leadshine iES-1703 NEMA 17 43 oz-in (0.3 N.m) Integrated Easy Servo Motor (Motor + Encoder + Drive); Fully Closed Position Loop; 1,000-line Encoder; Max 18-38VDC/4.2A

iES-1703 : Leadshine iES-1703 NEMA 17 43 oz-in (0.3 N.m) Integrated Easy Servo Motor (Motor + Encoder + Drive); Fully Closed Position Loop; 1,000-line Encoder; Max 18-38VDC/4.2A
by Leadshine Technology, Inc. (write an review)
iES-1703
Features
  • Compact integrated design with stepper motor + encoder + drive
  • Stepper motor based servo control
  • Fully closed position loop for servo control without loss of steps
  • Load based current for extra lower motor heating
  • Step & direction control
  • 43 oz-in (0.3 Nm) holding torque
  • 18-38 VDC input voltage and up to 4.2A current
  • 1,000-line incremental encoder
  • Default 200K input frequency; 500K software configurable
  • Minimized wiring for easy installation
  • No torque reservation for 100% torque implementation
  • Quick acceleration
  • No hunting & no overshooting
  • No tuning for almost all applications
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $149.00
  Online Prices: $129.00 Qty  1 - 4
  $121.00 Qty  5 - 9
  $115.00 Qty 10 - 24
  $109.00 Qty 25 - 49
  $99.00 Qty 50+
  You save 13.42 %sss
  Contact us for qty 100 & up
  Stock: Out of stock
Qty:

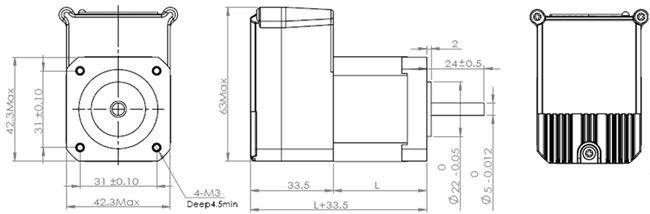

OverviewSpecificationMechanicalDownload
Overview
The Leadshine iES-1703 integrated easy servo motor is an Nema 17 easy servo motor (stepper motor with encoder) integrated with an easy servo drive. It is highly integrated with a 43 oz-in (0.30 N.m) NEMA 17 stepper motor, a 1000-line encoder, and an easy servo drive 18 - 38VDC / 4.2A. At very compact size, it reduces cabling time & cost, saves mounting space, cuts labor costs, and simplifies setup & installation. By taking step & direction control commands, iES-1703 is ideal for adopted in many OEM applications.

The iES-1703 integrated easy servo motor combines the technologies of both open loop stepper systems and brushless servo systems. It provides an alternative solution of stepper-based servo control.

While keeping the high torque, low cost and easy-to-implement features of open loop stepper systems, iES-1703 outperforms comparable open loop stepper systems in closed position loop for No Loss of Steps, much lower motor heating & noise, much quicker system response time, much faster acceleration, no torque reservation, better high speed performance, etc.

Similar to brushless servo systems, iES-1703 is able to provide real-time servo control and correct any position errors in motor movement. But for many applications, cost for iES-1703 easy servo motor is much lower. It also outperforms brushless servo systems in much higher low-middle speed torque, high stiffness at standstill, no hunting, no overshooting, almost zero settling time, and almost no tuning.

The iES-1703 easy servo motor is ideal for updating all open loop stepper systems, or replaces brushless servo systems in many OEM applications. It has been widely implemented in industries such as CNC machinery, medical, textile, electronics, semiconductor…
Accessories

Listed below are accessories for Leadshine iES-1703 NEMA 17 43 oz-in (0.3 N.m) Integrated Easy Servo Motor (Motor + Encoder + Drive); Fully Closed Position Loop; 1,000-line Encoder; Max 18-38VDC/4.2A.

  Model / Description 1 Pc. / 5 Pc. Price Purchase
1.4.4-0905517-E31 1.4.4-0905517-E31: RS232 Cable for Tuning Leadshine Integrated Stepper/Servo Motors $10.00 / $9.00 Order Quantity:
USBToRS232 USBToRS232: USB to RS232 Converter Cable with DB9 Connector $25.00 / $22.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for iES-1703. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.

To see all power supplies that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
RPS2410 RPS2410: Leadshine RPS2410 24 VDC / 10A Regulated Switching Power Supply 85-132 or 176-265 VAC Input $59.00 / $56.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
