Leadshine M542 2-Phase Stepper Drive with 20-50VDC Voltage and 1.0-4.2A Current; Pure Sinusoidal Current Control

M542 : Leadshine M542 2-Phase Stepper Drive with 20-50VDC Voltage and 1.0-4.2A Current; Pure Sinusoidal Current Control
by Leadshine Technology, Inc. (write an review)
M542
Features
  • Heatsink integrated and connectors included
  • Input: 20-50 VDC
  • Output: 1.0 - 4.2A
  • Microstepping options: 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128; or 1/5, 1/10, 1/20, 1/25, 1/40, 1/50, 1/100, 1/125
  • DIP switch current options: 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A
  • Low motor heating because of the implementation of 3-state current control technology

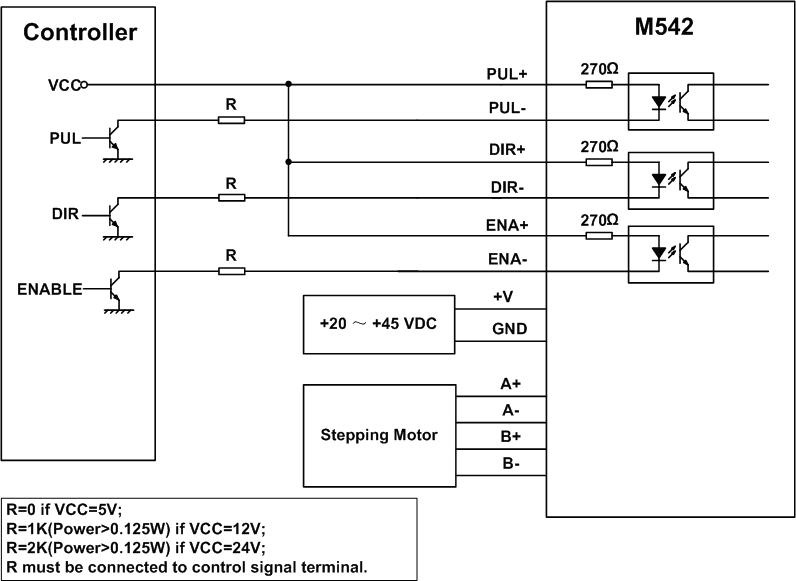

  • Support: PULSE/DIRECTION & CW/CCW modes
  • Self-adjustment technology
  • Pulse input frequency up to 300 KHz
  • TTL compatible and optically isolated input
  • Automatic idle-current reduction
  • 15 selectable resolutions, up to 25,600 steps/rev
  • Suitable for 2-phase and 4-phase motors
  • Short-voltage, over-voltage, over-current and over temperature protection
  • Dimensions: 4.65 X 2.97 X 1.30 inches; 10 oz
  • CE, ROHS certified
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $85.00
  Online Prices: $72.00 Qty  1 - 4
  $68.00 Qty  5 - 9
  $63.00 Qty 10 - 24
  You save 15.29 %
  Contact us for qty 25 & up
  Stock: In stock
Qty:
OverviewSpecificationMechanicalConnectionDownload
Overview
Leadshine M542 is a high performance 2-phase stepper drive based on advanced pure sinusoidal current control technology. It takes step & direction or CW/CCW control commands, and is very simple to implement in OEM applications.

M542 stepper features anti-resonance which significantly reduces low-middle speed movement vibration/instability and motor noise. Because of the implementation of 3-state current control (On, Off, and Circulation), drive and motor heating are significantly lower than similar stepper drives on the markets. With the input voltage of 20 - 50 VDC and output current of 1.00 - 4.20 A, M542 can drive a wide range of 2-phase stepper motors with high precision at extra smoothness, quietness, and low motor heating.

A M542 stepper drive is easy to setup and configure via DIP switches. There are 15 resolution settings from 400 - 25600, and 8 output current settings from 1.00 - 4.20. Also, a user can simply set the idle current to full (100%) or 50% of the output current via a DIP switch.

Matching Stepper Motorshybrid stepping motor

AMT offers matching stepper motors for M542 to satisfy your application needs. Made of high quality materials, those stepper motors can run very qietly and smoothly with low noise, low motor heating. They have been widely implemented in various industrial applications.

To see all stepper motors that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
HS1704 HS1704: AMT HS1704 NEMA 17 2-Phase 57 oz-in High Torque Stepper Motor with 0.197'' Single Shaft $15.00 / $14.00 Order Quantity:
HS1705 HS1705: AMT HS1705 NEMA 17 2-Phase 74 oz-in High Torque Stepper Motor with 0.197'' Single Shaft $16.00 / $15.00 Order Quantity:
HS2311A HS2311A: AMT HS2311A NEMA 23 2-Phase 156 oz-in High Torque Stepper Motor with 0.25'' Single Shaft $20.00 / $19.00 Order Quantity:
HS2311B HS2311B: AMT HS2311B NEMA 23 2-Phase 156 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $21.00 / $20.00 Order Quantity:
57HS09 57HS09: Leadshine 57HS09 2-Phase NEMA 23 Stepper Motor with 184 OZ-IN (1.3 N.m) Torque $49.00 / $46.00 Order Quantity:
57HS13 57HS13: Leadshine 57HS13 2-Phase NEMA 23 Stepper Motor with 255 OZ-IN (1.8 N.m) Torque $55.00 / $49.00 Order Quantity:
HS2320A HS2320A: AMT HS2320A NEMA 23 2-Phase 283 oz-in High Torque Stepper Motor with 0.25'' Single Shaft $27.00 / $26.00 Order Quantity:
HS2320B HS2320B: AMT HS2320B NEMA 23 2-Phase 283 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $28.00 / $27.00 Order Quantity:
57HS22 57HS22: Leadshine 57HS22 NEMA 23 Stepper Motor 312 OZ-IN (2.2 N.m) Torque Single 0.25'' or 0.315'' Shaft $62.00 / $59.00 Order Quantity:
HS2328A HS2328A: AMT HS2328A NEMA 23 2-Phase 400 oz-in High Torque Stepper Motor with 0.25'' Single Shaft $39.00 / $38.50 Order Quantity:
HS2328B HS2328B: AMT HS2328B NEMA 23 2-Phase 400 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $41.00 / $40.50 Order Quantity:
HS23B30A HS23B30A: AMT HS23B30A NEMA 23 2-Phase 382 Oz-In 2-Phase NEMA 23 Stepper Motor with 0.375 Inch Single Shaft $46.00 / $44.00 Order Quantity:
HS23B35A HS23B35A: AMT HS23B35A NEMA 23 2-Phase 495 Oz-In 2-Phase NEMA 23 Stepper Motor with 0.375 Inch Single Shaft $55.00 / $52.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for M542. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.

To see all power supplies that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
RPS2410 RPS2410: Leadshine RPS2410 24 VDC / 10A Regulated Switching Power Supply 85-132 or 176-265 VAC Input $59.00 / $56.00 Order Quantity:
RPS369 RPS369: Leadshine RPS369 36 VDC / 9.7A Regulated Switching Power Supply with 85-132 / 176-265 VAC Input $69.00 / $65.00 Order Quantity:
SPS407-L SPS407-L: Leadshine SPS407-L Ultra Compact 42VDC / 4.7A Unregulated Switching Power Supply 90-130 VAC Input $87.00 / $83.00 Order Quantity:
SPS407 SPS407: Leadshine SPS407 Ultra Compact 42VDC / 7A Unregulated Switching Power Supply 180-250 VAC Input $87.00 / $82.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
