Leadshine M752 2-Phase Stepper Drive with 20-70 VDC Input Voltage and Max 5.2A Output Current; ; Pure Sinusoidal Current Control
M752
: Leadshine M752 2-Phase Stepper Drive with 20-70 VDC Input Voltage and Max 5.2A Output Current; ; Pure Sinusoidal Current Control
|
|
|
Features
High performance, cost-effective
Supply voltage up to 70 VDC
Output current up to 5.2A
Self-adjustment technology
Pure-sinusoidal current control technology
Pulse input frequency up to 300 KHz
TTL compatible and optically isolated input
Automatic idle-current reduction
16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
Suitable for 2-phase and 4-phase motors
Support PUL/DIR and CW/CCW modes
Short-voltage, over-voltage, over-current protections
|
Buy Online
Usually shipped in 1-2 days from USA
|
|
Regular Price: |
$106.00
|
|
|
Online Prices:
|
$95.00
|
Qty 1 - 4
|
|
|
$90.00
|
Qty 5 - 9
|
|
You save
|
10.38%
|
| |
Contact us for qty 10 & up
|
|
Stock:
|
In stock
|
|
|
|
|
|
|
OverviewSpecificationMechanicalConnectionDownload
Overview
Leadshine M752 is a high performance 2-phase stepper drive based on advanced pure sinusoidal current control technology. It takes step & direction or CW/CCW control commands, and is very simple to implement in OEM applications.
M752 stepper features anti-resonance which significantly reduces low-middle speed movement vibration/instability and motor noise. Because of the implementation of 3-state current control (On, Off, and Circulation), drive and motor heating are significantly lower than similar stepper drives on the markets. With the input voltage of 20 - 70 VDC and output current of 1.80 - 5.20 A, M752 can drive a wide range of 2-phase stepper motors with high precision at extra smoothness, quietness, and low motor heating.
A M752 stepper drive is easy to setup and configure via DIP switches. There are 16 resolution settings from 400 - 51200, and 8 output current settings from 1.80 - 5.20. Also, a user can simply set the idle current to full (100%) or 50% of the output current via a DIP switch. |
Specification
| Model: | M752 | | Phase: | 2 | | Control Mode: | Step & Direction | | Max Input Frequency: | 300KHz | | Input Voltage Range: | 20 - 70 VDC | | Suggested Power Supply Voltage Range: | 24-65 VDC | | Output Current: | 1.80 - 5.20 A | | # of DIP Switch Resolution Configurations: | 16 | | DIP Switch Resolution Setings: | 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000 | | # of DIP Switch Current Configurations: | 8 | | DIP Switch Current Configurations: | 1.26A, 1.80A, 2.36A, 2.92A, 3.51A, 4.09A, 4.64A, 5.20A | | Logic Current Range: | 7-16mA (10mA typical) | | Logic Voltage Range: | 4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low | | Pulse enabled at: | Rising edge | | Idle Current Percentage: | 50 % | | # of Digital Inputs: | 3 | | Step Width: | 1,500 ns | | Minimal Direction Setup Time: | 5,000 ns | | Isolation Resistance: | 500M Ohm | | Environment: | Avoid dust, oil fog and corrosive gases | | Ambient Temporature: | 0-50°C | | Humidity: | 40–95% RH | | Operating Temporature: | 0-70°C | | Vibration: | 5.9 m/s2 Max | | Storage Temporature: | -20-65°C | | Specification: | 4.65 X 2.97 X 1.30 Inches | | Weight: | 0.60 lb |

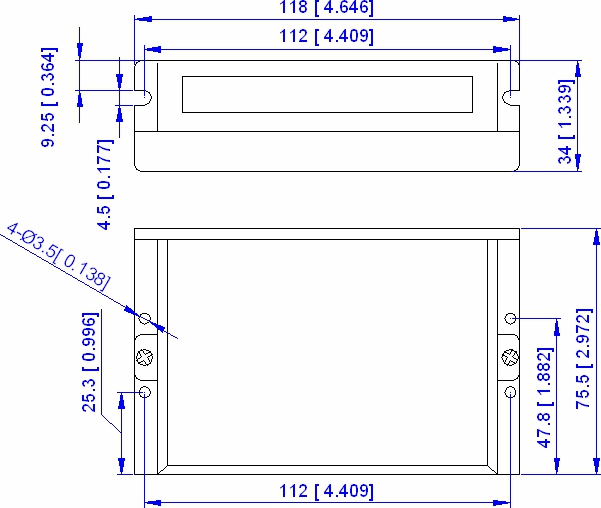

Mechanical Specification
Unit: mm
1 inch = 25.4 mm
|

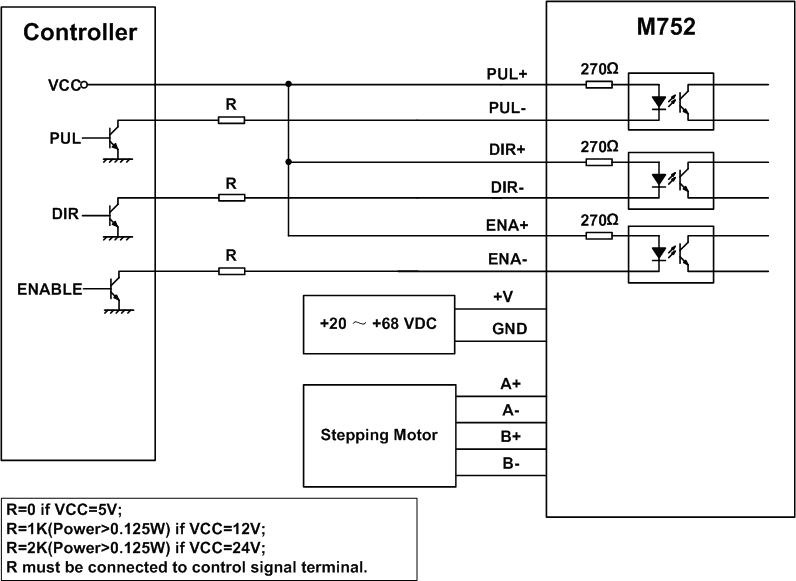

Matching Stepper Motorshybrid stepping motor
AMT offers matching stepper motors for M752 to satisfy your application needs. Made of high quality materials, those stepper motors can run
very qietly and smoothly with low noise, low motor heating. They have been widely implemented in various industrial applications.
To see all stepper motors that AMT offers, please click here.
Matching Power Suppliesstepper servo power supply
AMT offers matching power supplies for M752. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.
To see all power supplies that AMT offers, please click here.
|
