Leadshine M860 2-Phase Stepper Drive with 24-80 VDC Voltage and 2.4-7.2A Current; Pure Sinusoidal Current Control

M860 : Leadshine M860 2-Phase Stepper Drive with 24-80 VDC Voltage and 2.4-7.2A Current; Pure Sinusoidal Current Control
by Leadshine Technology, Inc. (write an review)
M860
Features
  • Heatsink integrated and connectors included
  • Input power voltage of 24-80 VDC; output current of 2.4 to 7.2A
  • Extra low noise; extra low motor heating; extra smoothness.
  • Anti- resonance at low to middle speed
  • 16 microstepping options via DIP switches: 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256, 1/5, 1/10, 1/20, 1/25, 1/40, 1/50, 1/100, 1/200
  • 8 output current options via DIP switches: 2.4, 3.08, 3.77, 4.45, 5.14, 5.83, 6.52, 7.20A
  • Low motor heating because of the implementation of 3-state current control technology
  • Support PULSE/DIRECTION and CW/CCW modes
  • Self-adjustment technology
  • Pulse input frequency up to 300 KHz
  • TTL compatible and optically isolated input
  • Automatic idle-current reduction
  • Suitable for 2-phase and 4-phase motors
  • Short-voltage, over-voltage, over-current and over temperature protection
  • UC/CUL certified
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $129.00
  Online Prices: $115.00 Qty  1 - 4
  $109.00 Qty  5 - 9
  You save 10.85%
  Contact us for qty 10 & up
  Stock: In stock
Qty:

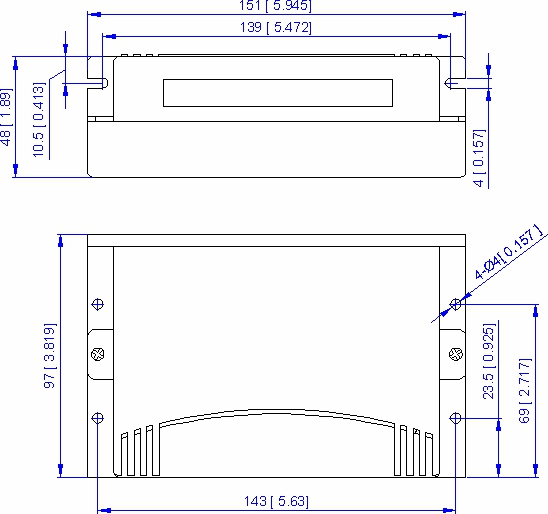

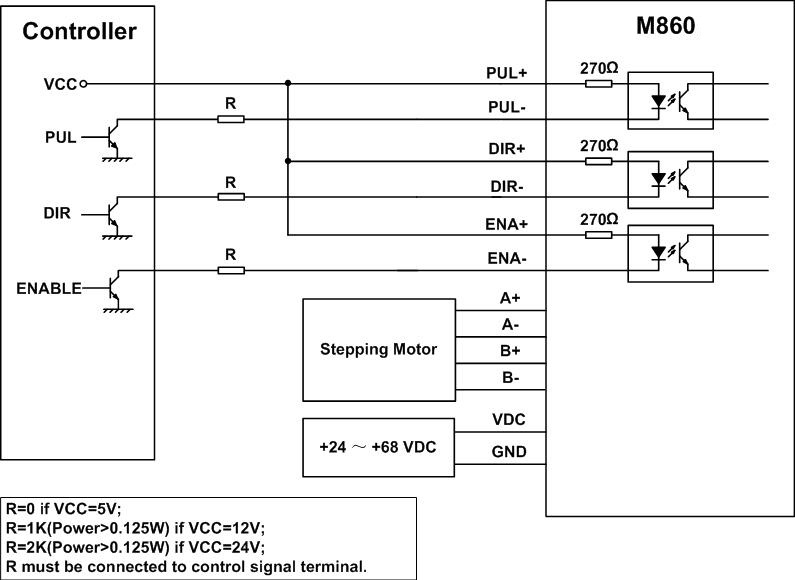

OverviewSpecificationMechanicalConnectionDownload
Overview
Leadshine M860 is a high performance 2-phase stepper drive based on advanced pure sinusoidal current control technology. It takes step & direction or CW/CCW control commands, and is very simple to implement in OEM applications.

M860 stepper features anti-resonance which significantly reduces low-middle speed movement vibration/instability and motor noise. Because of the implementation of 3-state current control (On, Off, and Circulation), drive and motor heating are significantly lower than similar stepper drives on the markets. With the input voltage of 24 - 80 VDC and output current of 1.80 - 7.20 A, M860 can drive a wide range of 2-phase stepper motors with high precision at extra smoothness, quietness, and low motor heating.

A M860 stepper drive is easy to setup and configure via DIP switches. There are 16 resolution settings from 400 - 51200, and 8 output current settings from 1.80 - 7.20. Also, a user can simply set the idle current to full (100%) or 50% of the output current via a DIP switch.

Matching Stepper Motorshybrid stepping motor

AMT offers matching stepper motors for M860 to satisfy your application needs. Made of high quality materials, those stepper motors can run very qietly and smoothly with low noise, low motor heating. They have been widely implemented in various industrial applications.

To see all stepper motors that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
HS2328A HS2328A: AMT HS2328A NEMA 23 2-Phase 400 oz-in High Torque Stepper Motor with 0.25'' Single Shaft $39.00 / $38.50 Order Quantity:
HS2328B HS2328B: AMT HS2328B NEMA 23 2-Phase 400 oz-in High Torque Stepper Motor with 0.25'' Dual Shaft $41.00 / $40.50 Order Quantity:
HS23B30A HS23B30A: AMT HS23B30A NEMA 23 2-Phase 382 Oz-In 2-Phase NEMA 23 Stepper Motor with 0.375 Inch Single Shaft $46.00 / $44.00 Order Quantity:
HS23B35A HS23B35A: AMT HS23B35A NEMA 23 2-Phase 495 Oz-In 2-Phase NEMA 23 Stepper Motor with 0.375 Inch Single Shaft $55.00 / $52.00 Order Quantity:
HS3468 HS3468: AMT HS3468 NEMA 34 2-Phase 971 oz-in High Torque Stepper Motor with 0.5'' Single Shaft $99.00 / $96.00 Order Quantity:
HS3485 HS3485: AMT HS3485 NEMA 34 2-Phase 1,203 oz-in High Torque Stepper Motor with 0.5'' Single Shaft $109.00 / $106.00 Order Quantity:
HS34100 HS34100: AMT HS34100 NEMA 34 2-Phase 1,416 oz-in High Torque Stepper Motor with 0.5'' Single Shaft $129.00 / $119.00 Order Quantity:
86HS120 86HS120: Leadshine 86HS120 2-Phase NEMA 34 Stepper Motor with 1,700 Oz-In (12 N.m) Torque $179.00 / $173.00 Order Quantity:
HS4212 HS4212: AMT HS4212 NEMA 42 2-Phase 1770 oz-in High Torque Stepper Motor with 0.748'' Single Shaft $189.00 / $172.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for M860. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.

To see all power supplies that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
RPS369 RPS369: Leadshine RPS369 36 VDC / 9.7A Regulated Switching Power Supply with 85-132 / 176-265 VAC Input $69.00 / $65.00 Order Quantity:
RPS488 RPS488: Leadshine RPS488 48 VDC / 7.3A Regulated Switching Power Supply 85-132 / 176-265 VAC Input $72.00 / $68.00 Order Quantity:
RPS4810 RPS4810: Leadshine RPS4810 48VDC /10.4A Regulated Switching Power Supply with 85-132 / 176-265 VAC $99.00 / $93.00 Order Quantity:
RPS608 RPS608: Leadshine RPS608 60VDC /8.5A Regulated Switching Power Supply with 85-132 / 176-265 VAC $103.00 / $97.00 Order Quantity:
SPS407 SPS407: Leadshine SPS407 Ultra Compact 42VDC / 7A Unregulated Switching Power Supply 180-250 VAC Input $87.00 / $82.00 Order Quantity:
SPS487 SPS487: Leadshine SPS487 Ultra Compact 48VDC / 7A Unregulated Switching Power Supply 180-250 VAC Input $89.00 / $84.00 Order Quantity:
SPS487-L SPS487-L: Leadshine SPS487-L Ultra Compact 48VDC / 4.0A Unregulated Switching Power Supply 90-130 VAC Input $89.00 / $84.00 Order Quantity:
SPS705 SPS705: Leadshine SPS705 Ultra Compact 68VDC / 5A Unregulated Switching Power Supply 180-250 VAC Input $98.00 / $93.00 Order Quantity:
SPS705-L SPS705-L: Leadshine SPS705-L Ultra Compact 68 VDC / 3.0A Unregulated Switching Power Supply 90-130 VAC Input $98.00 / $93.00 Order Quantity:
PS405-5 PS405-5: Leadshine PS405-5 Linear Power Supply;36 VDC/5A continuous; 5 VDC / 1A Auxiliary; 180-250 VAC Input $75.00 / $71.00 Order Quantity:
PS405-12 PS405-12: Leadshine PS405-12 Linear Power Supply;36 VDC/5A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input $75.00 / $71.00 Order Quantity:
PS408-5 PS408-5: Leadshine PS408-5 Linear Power Supply;36 VDC/8A continuous; 5 VDC / 1A Auxiliary; 180-250 VAC Input $88.00 / $84.00 Order Quantity:
PS408-12 PS408-12: Leadshine PS408-12 Linear Power Supply;36 VDC/8A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input $88.00 / $84.00 Order Quantity:
PS804-5 PS804-5: Leadshine PS804-5 Linear Power Supply;68 VDC/4A continuous; 5 VDC / 1A Auxiliary; 180-250 VAC Input $95.00 / $90.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
