Leadshine MA860H 2-Phase Stepper Drive with 50- 110 VDC or 36-80 VAC Voltage and 2.4-7.2A Current; Pure Sinusoidal Current Control
MA860H
: Leadshine MA860H 2-Phase Stepper Drive with 50- 110 VDC or 36-80 VAC Voltage and 2.4-7.2A Current; Pure Sinusoidal Current Control
|
|
Features
- High performance, cost-effective
- Supply voltage up to 80VAC or 110VDC
- Output current up to 7.2A
- Self-adjustment technology
- Pure-sinusoidal current control technology
- Pulse input frequency up to 300 KHz
- TTL compatible and optically isolated input
- Automatic idle-current reduction
- 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
- Suitable for 2-phase and 4-phase motors
- Support PUL/DIR and CW/CCW modes
- Short-voltage, over-voltage, over-current and short-cicuit protection
|
Buy Online
Usually shipped in 1-2 days from USA
|
Regular Price: |
$149.00
|
|
Online Prices:
|
$135.00
|
Qty 1 - 4
|
|
$128.00
|
Qty 5 - 9
|
You save
|
9.40%
|
|
Contact us for qty 10 & up
|
Stock:
|
In stock
|
|
|
|
|
OverviewSpecificationMechanicalConnectionDownload
Overview
Leadshine MA860H is a high performance 2-phase stepper drive based on advanced pure sinusoidal current control technology. It takes step & direction
or CW/CCW control commands, and is very simple to implement in OEM applications.
MA860H stepper features anti-resonance which significantly reduces low-middle speed movement vibration/instability and motor noise. Because of the
implementation of 3-state current control (On, Off, and Circulation), drive and motor heating are significantly lower than similar
stepper drives on the markets. With the input voltage of 36 - 80 VAC / 50 - 100 VDC and output current of 1.80 - 7.20 A, MA860H can drive a wide range of 2-phase stepper motors
with high precision at extra smoothness, quietness, and low motor heating.
A MA860H stepper drive is easy to setup and configure via DIP switches. There are 16 resolution settings from 400 - 51200,
and 8 output current settings from 1.80 - 7.20. Also, a user can simply set the idle current to full (100%) or 50% of
the output current via a DIP switch.
|
Specification
Model: | MA860H | Phase: | 2 | Control Mode: | Step & Dir, or CW/CCW | Max Input Frequency: | 300Khz | Input Voltage Range: | 36 - 80 VAC / 50 - 100 VDC | Suggested Power Supply Voltage Range: | 36-90 VDC /24-60 VAC | Output Current: | 1.80 - 7.20 A | # of DIP Switch Resolution Configurations: | 16 | DIP Switch Resolution Setings: | 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000 | # of DIP Switch Current Configurations: | 8 | DIP Switch Current Configurations: | 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A | Logic Current Range: | 7-16mA (10mA typical) | Logic Voltage Range: | 4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low | Pulse enabled at: | Rising edge | Idle Current Percent: | 50 % | # of Digital Inputs: | 3 | Step Width: | 1,500 ns | Minimal Direction Setup Time: | 5,000 ns | Isolation Resistance: | 500M Ohm | Environment: | Avoid dust, oil fog and corrosive gases | Ambient Temporature: | 0-50°C | Humidity: | 40–95% RH | Operating Temporature: | 0-70°C | Vibration: | 5.9 m/s2 Max | Storage Temporature: | -20-65°C | Specification: | 5.94 X 3.82 X 2.05 Inches | Weight: | 1.28 lbs |

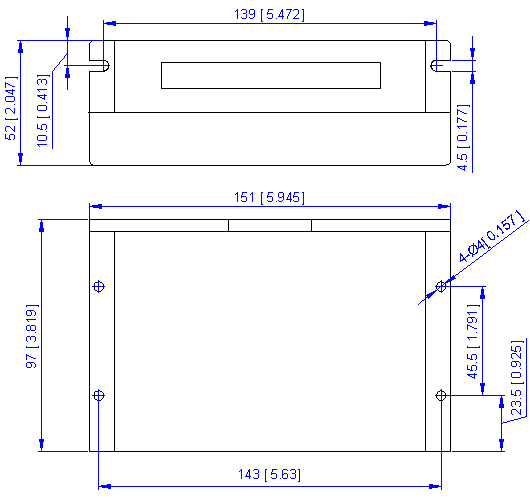

Mechanical Specification
Unit: mm
1 inch = 25.4 mm
|

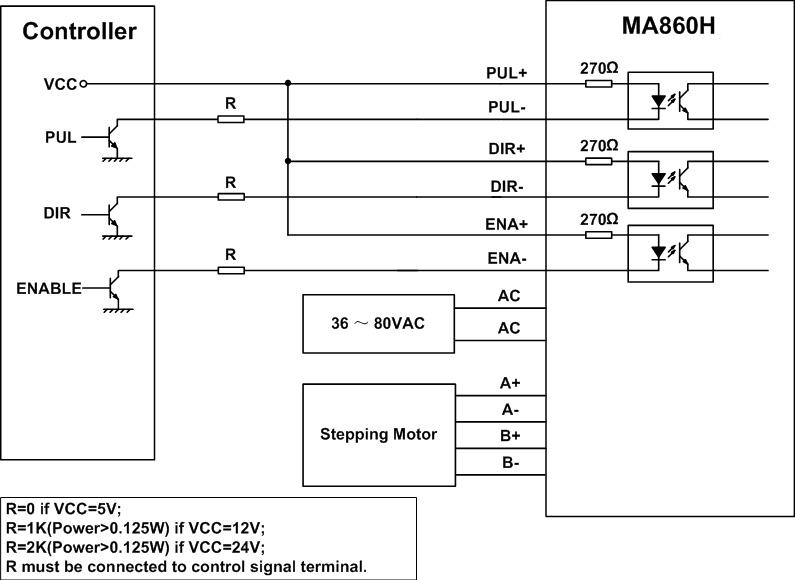

Matching Stepper Motorshybrid stepping motor
AMT offers matching stepper motors for MA860H to satisfy your application needs. Made of high quality materials, those stepper motors can run
very qietly and smoothly with low noise, low motor heating. They have been widely implemented in various industrial applications.
To see all stepper motors that AMT offers, please click here.
Matching Power Suppliesstepper servo power supply
AMT offers matching power supplies for MA860H. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.
To see all power supplies that AMT offers, please click here.
|
