Leadshine SDM660 PCB-Level Stepper Drive Module; 20-60VDC Input; 1.45-6.0A Current; Anti Resonance; Auto Idle Current Deduction

SDM660 : Leadshine SDM660 PCB-Level Stepper Drive Module; 20-60VDC Input; 1.45-6.0A Current; Anti Resonance; Auto Idle Current Deduction
by Leadshine Technology, Inc. (write an review)
SDM660
Features
  • a PCB-level stepper drive specially designed to be integrated into custom OEM motion control systems
  • Step & direction control
  • Input voltage of 20-60VDC
  • Maximum output current of 6.0Amp
  • Capable of powering 2 or 4 phase NEMA 17, 23, 24, 34 stepper motors
  • 8 output current settings of 1.45A to 6.0A via DIP switches
  • 8 micro step resolution settings of 200 – 12800 via DIP switches
  • Anti resonance
  • High precision, extra low motor heating, low noise, smooth motor movement
  • Built-in short circuit, over-current and over-voltage protection
  • Compact size
  • 50% auto idle current reduction
Buy Online
Usually shipped in 1-2 days from USA
Regular Price: $89.00
  Online Prices: $79.00 Qty  1 - 4
  $74.00 Qty  5 - 9
  You save 11.24 %
  Contact us for qty 10 & up
  Stock: In stock
Qty:

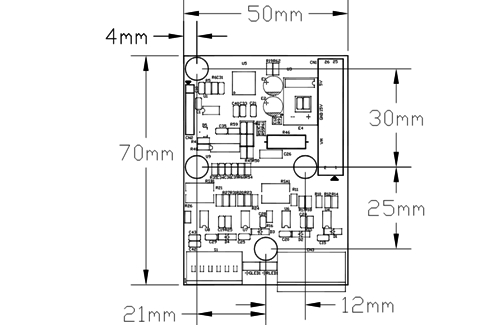

OverviewSpecificationMechanicalConnectionDownload
Overview

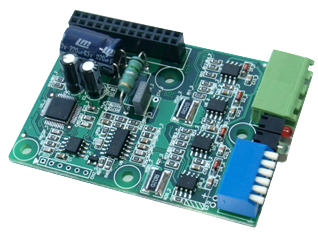

The Leadshine SDM660 is a PCB-level stepper drive module specially designed to be integrated into custom motion control systems of OEM applications. When supplied with 5VDC and 15 VDC power, the SDM660 step drive module can function as a high performance single axis stepper drive to power 2 (1.8°) or 4 (0.9°) phase stepper motors of frame sizes NEMA 17, 23, 24, and 34. It can take 20-60 VDC input voltage and output up to 6.0A current. With the simple-to-use DIP switches, a user can easily configure the output current or micro step resolution to one of the 8 preset settings, which is 1.45-6.0A and 200-12,800 (full step to 64 steps).

By adopting Leadshine’s advanced stepper motor control algorithm based on the latest DSP technology, the SDM660 is featured with high precision, compact size, anti resonance, excellent performance in all speed range, extra low motor heating & noise, anti resonance, smooth movement.

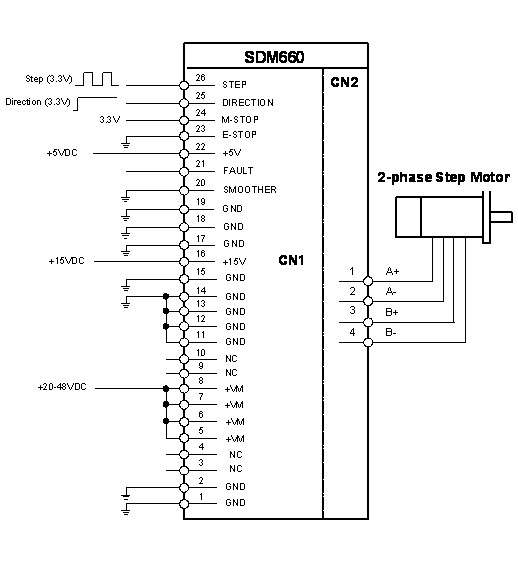

The SDM660 is easy to implement by taking step & direction. Due to its compact size and high flexibility to be implemented, the SDM660 is ideal for OEM customers to build their own custom motion control systems for stepper motor controls. The SDM660 is also used in Leadshine multiple axis stepper drives such as MX3660 3-axis stepper drive. When one of the stepper drive modules is broken or malfunction, a user can simply replace it with a SDM660.

Matching Power Suppliesstepper servo power supply

AMT offers matching power supplies for SDM660. Those power supplies were specially designed to handle back EMF from stepper or servo motors in motion controls.

To see all power supplies that AMT offers, please click here.

  Model / Description Spec. 1 Pc. / 5 Pc. Price Purchase
RPS2410 RPS2410: Leadshine RPS2410 24 VDC / 10A Regulated Switching Power Supply 85-132 or 176-265 VAC Input $59.00 / $56.00 Order Quantity:
RPS369 RPS369: Leadshine RPS369 36 VDC / 9.7A Regulated Switching Power Supply with 85-132 / 176-265 VAC Input $69.00 / $65.00 Order Quantity:
RPS488 RPS488: Leadshine RPS488 48 VDC / 7.3A Regulated Switching Power Supply 85-132 / 176-265 VAC Input $72.00 / $68.00 Order Quantity:
RPS4810 RPS4810: Leadshine RPS4810 48VDC /10.4A Regulated Switching Power Supply with 85-132 / 176-265 VAC $99.00 / $93.00 Order Quantity:
SPS407-L SPS407-L: Leadshine SPS407-L Ultra Compact 42VDC / 4.7A Unregulated Switching Power Supply 90-130 VAC Input $87.00 / $83.00 Order Quantity:
SPS487-L SPS487-L: Leadshine SPS487-L Ultra Compact 48VDC / 4.0A Unregulated Switching Power Supply 90-130 VAC Input $89.00 / $84.00 Order Quantity:
PS405-5 PS405-5: Leadshine PS405-5 Linear Power Supply;36 VDC/5A continuous; 5 VDC / 1A Auxiliary; 180-250 VAC Input $75.00 / $71.00 Order Quantity:
PS405-12 PS405-12: Leadshine PS405-12 Linear Power Supply;36 VDC/5A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input $75.00 / $71.00 Order Quantity:
PS408-5 PS408-5: Leadshine PS408-5 Linear Power Supply;36 VDC/8A continuous; 5 VDC / 1A Auxiliary; 180-250 VAC Input $88.00 / $84.00 Order Quantity:
PS408-12 PS408-12: Leadshine PS408-12 Linear Power Supply;36 VDC/8A continuous; 12 VDC / 1A Auxiliary; 180-250 VAC Input $88.00 / $84.00 Order Quantity:
Enter the quantity you want to order for each item in the above table and press the "Add to Cart" button next.
