Leadshine Multi-Axis Stepper Motor Drives

Based on the latest DSP technology and adopting Leadshines' advanced control algorithms, the Leadshine MX series stepper drives are specially designed to allow EASY and RAPID implementation of multiple axis stepper solutions.

Those Leadshine multi-axis stepper drives are featured with easy step & direction control, anti-resonance, multi-stepping, digital smoothing, auto idle current reduction..., for high precision, excellent high speed torque, extra low motor heating, extra smooth motor movement, and super low motor noise.
Multi Axis Control

At very compact size, a MX series stepper drive allows controls of up to multiple stepper motor control, with integrated I/O's. This can save your installation space, reduce setup time, and cut per-axis cost.
Excellent Performance

By implementing the latest DSP control technology, those stepper drives outperform other brand multi-axis stepper drives for much lower motor heating , super low noise, and excellent smoothness in all speed range.
Versatile

The MX series stepper drives can take max 60 VDC voltage input and output up to 6.0A current per axis. This allows them to drive a wide range of stepper motors in frame size 17, 23, 24, and 34.
Quick & Easy Setup

With separate DIP switches for each axis, a user can quickly configure individual settings of output current and micro stepper resolution for each axis.
Built-In Breakout Board and I/O's

A MX series stepper drive is integrated with a breakout board for extra digital inputs and outputs. It also offers a 0-10 VDC analog output to allow external analog device control such as a VFD and LDT.
Plug-and-Play for Mach 3

Those MX series stepper drives are designed for plug & play setup with  Mach 3. A user can also easily set it up for working other CNC systems like WinCNC / EMC, or a PLC/Motion controller.
High Reliability

The MX series stepper drives have been widely adopted in industrial OEM applications like CNC routers, mills, lathes, laser cutters... with extreme low failure rate of less then 0.1%!
Great Prices

Besides discounted low single-piece or low-quantity prices, additional high volume discounts are also offered for OEM customers.
 ModelControl ModePhaseAxis No.Voltage
Range
DIP Config. Output
Current Range
(A)
Resolution via
DIP Switches
1 / 5 Pc. Price
(USD)
MX3660 MX3660Step & Direction2320 - 60 VDC1.45 - 6.00200-12,800$289.00 / $275.00

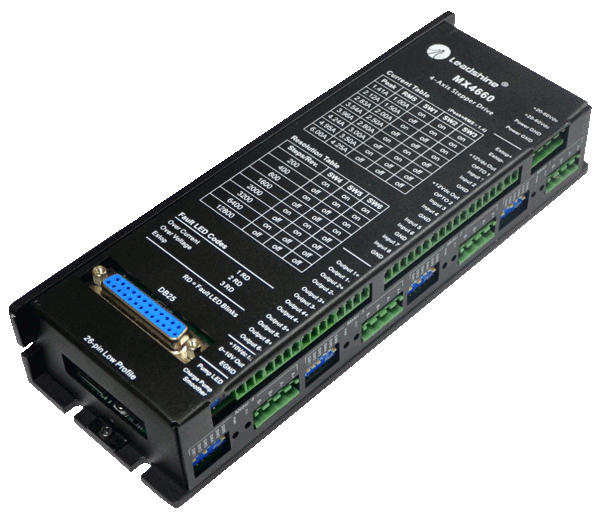

MX4660 MX4660Step & Direction2420 - 60 VDC1.41 - 6.00200-12,800$379.00 / $362.00
